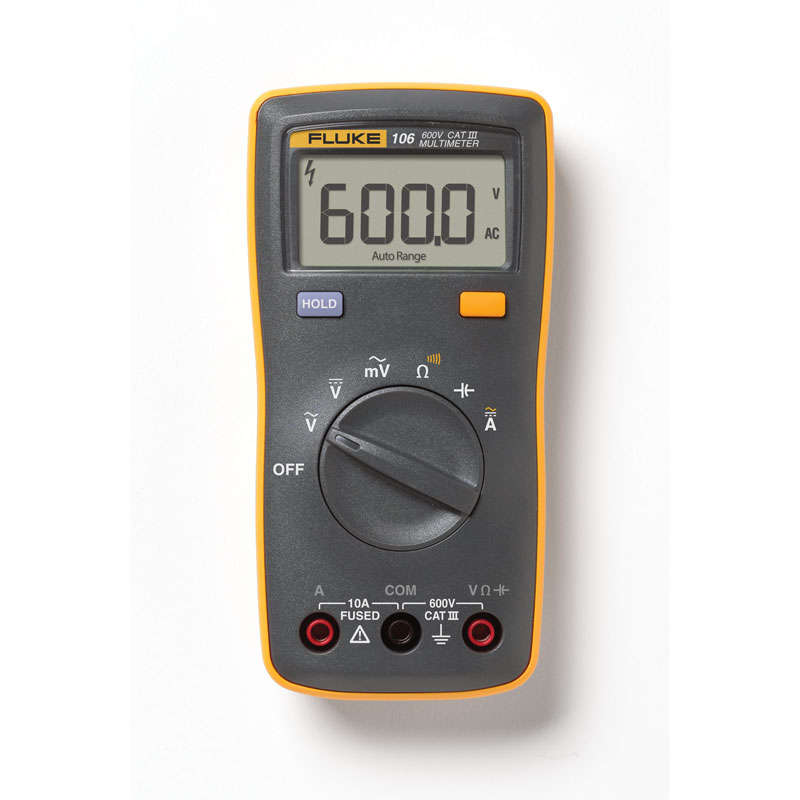

Fluke 106 Handheld Digital Multimeter

Description

Shop the Fluke 106 Handheld Digital Multimeter at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

Fluke 106 Handheld Digital Multimeter: product details

The listed brand is Fluke. The listed product type is Multimeter. The listed multimeter type is Handheld.

Choosing the right item

Compare the stated measurement range, connections and listed test function with the equipment and test requirements. Check the included components and any operating requirements. Match the exact product specification to your task before ordering, since items with similar names can serve different purposes or use different connections.

This item belongs to our electrical test tools range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Brand: Fluke
• Product Type: Multimeter
• Multimeter Type: Handheld
• Model: 106
• Display Type: Digital (6000 counts, 3 updates/sec)
• Maximum DC Voltage: 600 V
• DC Voltage Accuracy: ±0.5 % rdg + 3 Digits
• AC Voltage Accuracy: ±1.0 % + 3
• AC Current Accuracy: ±1.5 % rdg + 3 Digits
• DC Current Accuracy: ±1.5 % rdg + 3 Digits
• Resistance Measurement Accuracy: ±0.5 % + 3 Digits
• Resistance Resolution: 0.1 Ω
• DC Voltage Resolution: 0.001 V
• AC Voltage Resolution: 0.001 V
• Maximum Frequency: 100 kHz
• Functions Measured: AC Voltage, DC Voltage, AC Current, DC Current, Resistance, Capacitance, Frequency, Duty Cycle, Diode Test
• Input Impedance: >10 MΩ (V), ~1 MΩ (mV)
• Overload Protection: 600 V (AC/DC V), 600 mV (AC mV)
• Safety Category: CAT III 600 V
• IP Rating: IP40 (IEC 60529)
• Operating Temperature: 0 °C to 40 °C
• Storage Temperature: -30 °C to 60 °C
• Battery Type: 2 x AAA (NEDA 24A, IEC LR03)
• Battery Life: 200 Hours Minimum
• Dimensions (L x W x H): 142 mm x 69 mm x 28 mm
• Weight: 200 g
• Standards: IEC 61010-1, IEC 61326-1
• Click here to read: How to Use a Multimeter

Use and care

Follow the product and equipment instructions for connection, testing and interpretation. Inspect the working components before use and apply the method specified for the exact item. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 0.360000
• Package Length (cm): 20.50
• Package Width (cm): 10.50
• Package Height (cm): 5.50

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the Fluke 106 Handheld Digital Multimeter from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code TTESDM106 available if you need to identify this item again.
