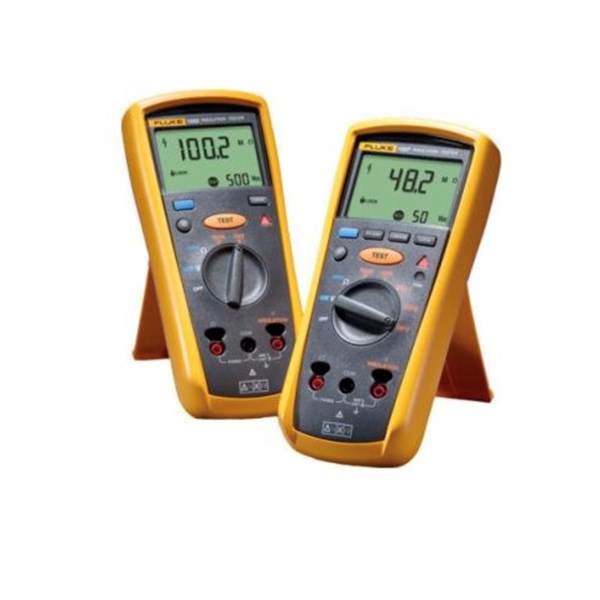

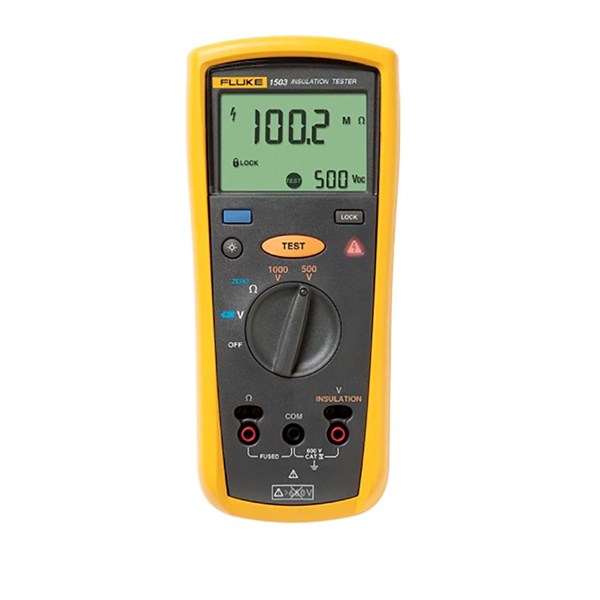

Fluke 1503 Insulation Tester (1kV)

Description

Shop the Fluke 1503 Insulation Tester (1kV) at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

Fluke 1503 Insulation Tester (1kV): product details

The listed ac/dc voltage measurement is Range: 600.0 VResolution: 0.1 VAccuracy (50–400 Hz): ±(2% + 3)Input impedance: 3 MΩ nominal, <100 pFCMRR: >60 dB at DC, 50 or 60 HzOverload protection: 600 V rms or DC. The listed earth bond resistance is Range/Resolution:20.00 Ω / 0.01 Ω200.0 Ω / 0.1 Ω2000 Ω / 1.0 Ω20.00 kΩ / 0.01 kΩAccuracy: ±(1.5% + 3)Overload protection: 2 V rms or DCOpen circuit voltage: >4.0 V, <8 VShort circuit current: >200 mA. The listed insulation resistance is Range: 0.01 MΩ to 2000 MΩTest voltages: 500 V, 1000 VAccuracy: ±(1.5% + 5) up to 2000 MΩ, ±(10% + 3) above 2000 MΩShort circuit current: 1 mA nominalAuto discharge: <0.5 sec for ≤1 µFLive circuit inhibit: Yes (>30 V).

Choosing the right item

Compare the stated measurement range, connection details and listed function with the vehicle or equipment you need to inspect. Check the included components and any operating requirements. Match the exact product specification to your task before ordering, since items with similar names can serve different purposes or use different connections.

This item belongs to our diagnostic and inspection tools range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• AC/DC Voltage Measurement: Range: 600.0 VResolution: 0.1 VAccuracy (50–400 Hz): ±(2% + 3)Input impedance: 3 MΩ nominal, <100 pFCMRR: >60 dB at DC, 50 or 60 HzOverload protection: 600 V rms or DC
• Earth Bond Resistance: Range/Resolution:20.00 Ω / 0.01 Ω200.0 Ω / 0.1 Ω2000 Ω / 1.0 Ω20.00 kΩ / 0.01 kΩAccuracy: ±(1.5% + 3)Overload protection: 2 V rms or DCOpen circuit voltage: >4.0 V, <8 VShort circuit current: >200 mA
• Insulation Resistance: Range: 0.01 MΩ to 2000 MΩTest voltages: 500 V, 1000 VAccuracy: ±(1.5% + 5) up to 2000 MΩ, ±(10% + 3) above 2000 MΩShort circuit current: 1 mA nominalAuto discharge: <0.5 sec for ≤1 µFLive circuit inhibit: Yes (>30 V)
• Maximum Voltage to Any Terminal: 600 V AC rms or DC
• Operating Temperature: -20°C to 55°C (-4°F to 131°F)
• Storage Temperature: -40°C to 60°C (-40°F to 140°F)
• Temperature Coefficient: 0.05 × specified accuracy per °C below 18°C or above 28°C
• Relative Humidity: 0–95% @ 10–30°C0–75% @ 30–40°C0–40% @ 40–55°C
• Vibration: 2 g, 5–500 Hz (MIL-PRF-28800F, Class 2)
• Shock: 1 m drop test (6 sides, IEC 61010-1)
• EMC: EN 61326-1:1997 compliantAccuracy = specified when exposed to RF field of 3 V/m
• Safety Standards: ANSI/ISA 82.02.01, CAN/CSA-C22.2 No. 61010.1-04, IEC/EN 61010-1 (CAT IV 600 V)
• Certifications: CSA, TUV
• Battery Type: 4 × AA (NEDA 15A or IEC LR6)
• Battery Life: 1000 insulation tests (1000 V, 1 MΩ, 5s on/25s off)2500 resistance tests (1 Ω, 5s on/25s off)
• Dimensions (H × W × L): 5.0 × 10.0 × 20.3 cm (1.97 × 3.94 × 8.00 in)
• Weight: 550 g (1.2 lb)
• IP Rating: IP40
• Altitude: Operating: 2000 m CAT IV 600 V / 3000 m CAT III 600 VStorage: 12,000 m
• Over-range Capability: 110% of range

Use and care

Follow the product and equipment instructions for connection, testing and interpretation. Inspect the working components before use and apply the procedure specified for the exact item. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 0.550000
• Package Length (cm): 20.3
• Package Width (cm): 10.0
• Package Height (cm): 5.0

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the Fluke 1503 Insulation Tester (1kV) from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code TTESDM503 available if you need to identify this item again.
