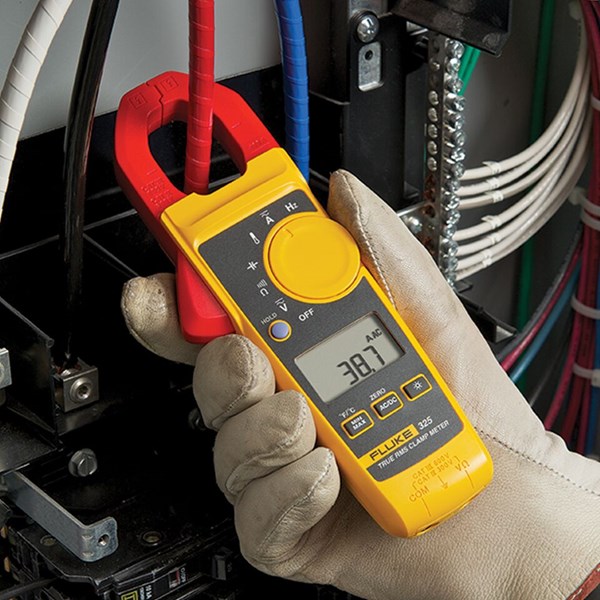

Fluke 325 Clamp Meter 400A AC/DC True RMS with Temperature

Description

Shop the Fluke 325 Clamp Meter 400A AC/DC True RMS with Temperature at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

Fluke 325 Clamp Meter 400A AC/DC True RMS with Temperature: product details

The listed ac current range is 40.00 A / 400.0 A. The listed ac current accuracy is 2% ± 5 digits (45 Hz to 65 Hz)2.5% ± 5 digits (65 Hz to 400 Hz). The listed dc current range is 40.00 A / 400.0 A.

Choosing the right item

Compare the stated measurement range, connections and listed test function with the equipment and test requirements. Check the included components and any operating requirements. Match the exact product specification to your task before ordering, since items with similar names can serve different purposes or use different connections.

This item belongs to our electrical test tools range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• AC Current Range: 40.00 A / 400.0 A
• AC Current Accuracy: 2% ± 5 digits (45 Hz to 65 Hz)2.5% ± 5 digits (65 Hz to 400 Hz)
• DC Current Range: 40.00 A / 400.0 A
• DC Current Accuracy: 2% ± 5 digits
• AC Voltage Range: 600.0 V
• AC Voltage Accuracy: 1.5% ± 5 digits
• DC Voltage Range: 600.0 V
• DC Voltage Accuracy: 1.0% ± 5 digits
• Resistance Range: 400.0 Ω / 4000 Ω / 40.00 kΩ
• Resistance Accuracy: 1.0% ± 5 digits
• Continuity: ≤ 30 Ω
• Capacitance Range: 0 to 100.0 μF / 100 μF to 1000 μF
• Frequency Range: 5.0 Hz to 500.0 Hz
• AC Response: True-RMS
• Backlight: Yes
• Data Hold: Yes
• Temperature Range: -10.0°C to 400.0°C (14.0°F to 752.0°F)
• Min/Max: Yes
• Dimensions (H x W x D): 207 x 75 x 34 mm
• Maximum Wire Diameter: 30 mm (600 MCM)
• Weight: 283 g
• Category Rating: CAT III 600 V, CAT IV 300 V
• Warranty: Two-year

Use and care

Follow the product and equipment instructions for connection, testing and interpretation. Inspect the working components before use and apply the method specified for the exact item. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 0.590000
• Package Length (cm): 27.0
• Package Width (cm): 11.0
• Package Height (cm): 8.0

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the Fluke 325 Clamp Meter 400A AC/DC True RMS with Temperature from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code TTESDM325 available if you need to identify this item again.
