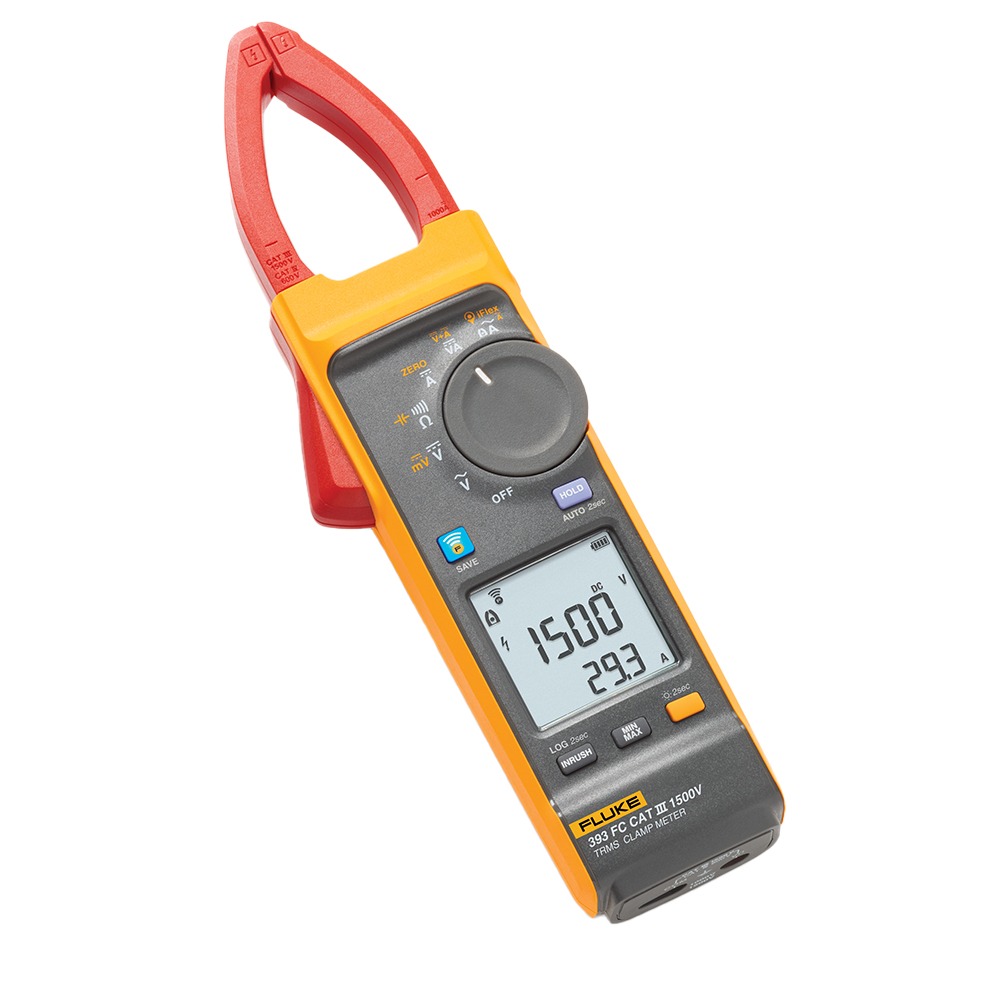

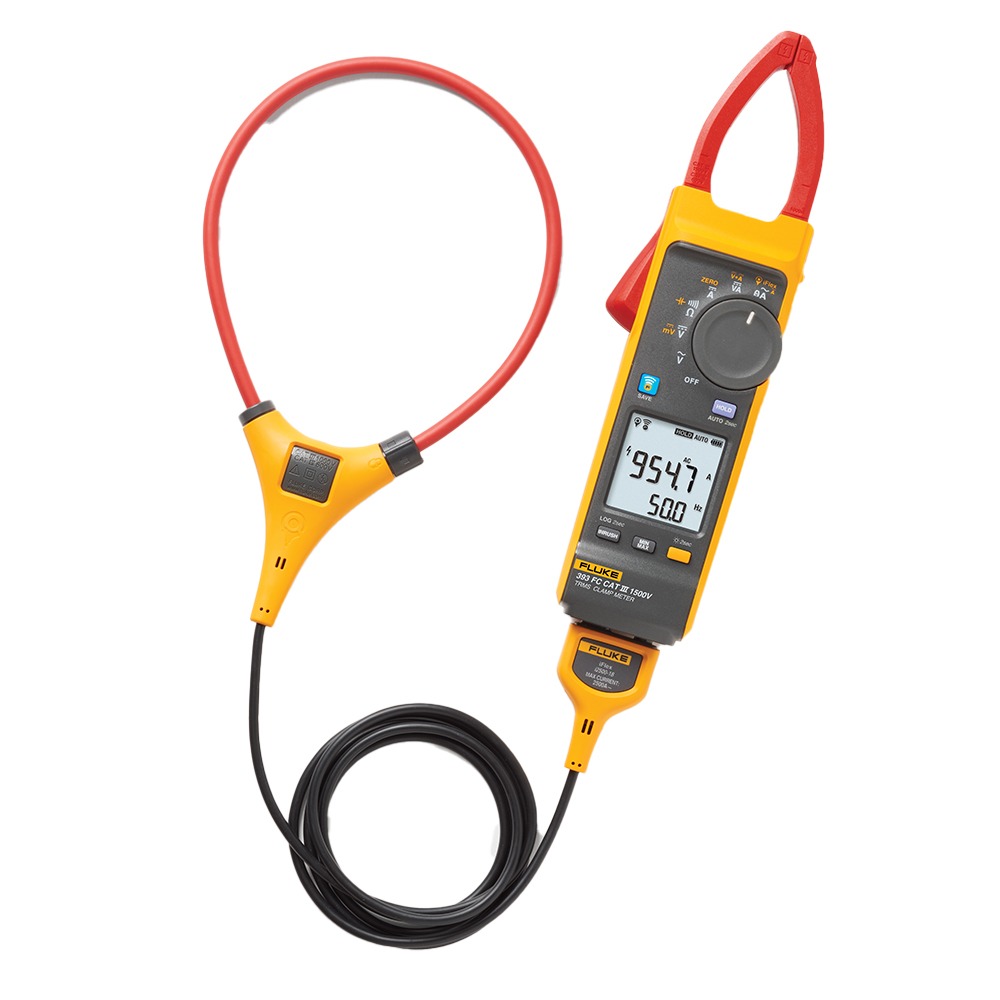

Fluke 393 IRR PV Lead Clamp, IRR1 Irradiance Meter, MC4 Test Leads Bundle

Description

Shop the Fluke 393 IRR PV Lead Clamp, IRR1 Irradiance Meter, MC4 Test Leads Bundle at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

Fluke 393 IRR PV Lead Clamp, IRR1 Irradiance Meter, MC4 Test Leads Bundle: product details

The listed brand is Fluke. The listed product type is Clamp Meter. The listed model is 393/E.

Choosing the right item

Compare the stated opening capacity, working dimensions and mounting arrangement with the workpiece and support requirements. Check the included components and any operating requirements. Match the exact product specification to your task before ordering, since items with similar names can serve different purposes or use different connections.

This item belongs to our clamps and workholding range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Brand: Fluke
• Product Type: Clamp Meter
• Model: 393/E
• Clamp Meter Type: AC/DC True RMS Clamp Meter with iFlex
• True RMS: Yes
• Maximum AC Current (Jaw): 999.9 A AC
• Maximum DC Current (Jaw): 999.9 A DC
• Maximum AC Current (iFlex): 2500 A AC
• AC Current Accuracy: ±2 % rdg + 5 Digits
• DC Current Accuracy: ±2 % rdg + 5 Digits
• AC Current Resolution: 0.1 A
• DC Current Resolution: 0.1 A
• Maximum AC Voltage: 1000 V AC
• Maximum DC Voltage: 1500 V DC
• AC Voltage Accuracy: ±1 % rdg + 5 Digits
• DC Voltage Accuracy: ±1 % rdg + 5 Digits
• AC Voltage Resolution: 0.1 V
• DC Voltage Resolution: 1 V
• Maximum Resistance: 60 kΩ
• Resistance Resolution: 10 Ω
• Resistance Accuracy: ±1 % rdg + 5 Digits
• Functions Measured: AC/DC Current, AC/DC Voltage, Resistance, DC Power, Audio Polarity, Visual Continuity
• Maximum Jaw Opening: 34 mm
• Display: Dual Display with Backlight
• Automatic Power Off: 20 Minutes
• Power Source: Battery
• Battery Type: 2 x AA IEC LR6 Alkaline
• Minimum Operating Temperature: -10 °C
• Maximum Operating Temperature: 50 °C
• Safety Category: CAT III 1500 V / CAT IV
• Safety Category Voltage: 1500 V
• Standards: IEC 61010-1, IEC 61010-2-032, IEC 61010-2-033
• Dimensions (L x W x H): 281 mm x 84 mm x 49 mm
• Weight: 520 g
• Click here to read: How to Use a Multimeter

Use and care

Follow the product and equipment instructions for mounting, adjustment and inspection. Inspect the working components before use and apply the method specified for the exact item. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 0.520000
• Package Length (cm): 28.1
• Package Width (cm): 8.4
• Package Height (cm): 4.9

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the Fluke 393 IRR PV Lead Clamp, IRR1 Irradiance Meter, MC4 Test Leads Bundle from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code TTESDM393 available if you need to identify this item again.
