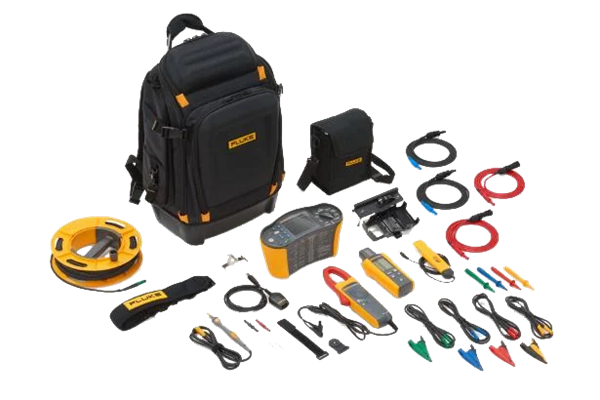

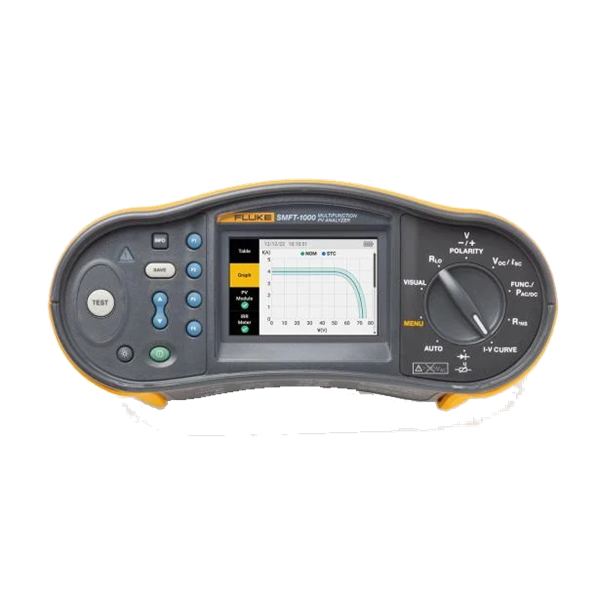

Fluke SMFT-1000/PRO Multifunction PV Analyzer SMFT-1000 with TruTest

Description

Shop the Fluke SMFT-1000/PRO Multifunction PV Analyzer SMFT-1000 with TruTest at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

Fluke SMFT-1000/PRO Multifunction PV Analyzer SMFT-1000 with TruTest: product details

The listed protective conductor resistance (rlo) is Display Range: 0.00 – 19.99 Ω / 20.0 – 199.9 Ω / 200 – 2000 Ω Measuring Range / Resolution: 0.20 – 19.99 Ω (0.01 Ω) Accuracy: ±(2 % + 2 digits) for first two ranges; ±(5 % + 2 digits) for 200 Ω – 2000 Ω. The listed open-circuit voltage (voc) is Display Range: 0.0 – 99.9 V / 100 – 1000 V Measuring Range: 5.0 – 99.9 V & 100 – 1000 V Resolution: 0.1 V / 1 V Accuracy: ±(0.5 % + 2 digits). The listed short-circuit current (isc) is Display Range & Measuring Range: 0.0 – 20.0 A (0.2 – 20.0 A usable) Resolution: 0.1 A Accuracy: ±(1 % + 2 digits).

Choosing the right item

Compare the exact product reference, dimensions and listed application with your workshop requirements. Check whether the listing is a complete tool, a kit or a separate accessory. Use the product specification and inclusion details to match the item to your equipment and planned task.

This item belongs to our general hand tool accessories range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Protective Conductor Resistance (RLo): Display Range: 0.00 – 19.99 Ω / 20.0 – 199.9 Ω / 200 – 2000 Ω Measuring Range / Resolution: 0.20 – 19.99 Ω (0.01 Ω) Accuracy: ±(2 % + 2 digits) for first two ranges; ±(5 % + 2 digits) for 200 Ω – 2000 Ω
• Open-Circuit Voltage (Voc): Display Range: 0.0 – 99.9 V / 100 – 1000 V Measuring Range: 5.0 – 99.9 V & 100 – 1000 V Resolution: 0.1 V / 1 V Accuracy: ±(0.5 % + 2 digits)
• Short-Circuit Current (Isc): Display Range & Measuring Range: 0.0 – 20.0 A (0.2 – 20.0 A usable) Resolution: 0.1 A Accuracy: ±(1 % + 2 digits)
• Insulation Resistance (Rins): 0.00 – 99.99 MΩ (0.01 MΩ) – ±(5 % + 5 digits) 100.0 – 199.9 MΩ (0.1 MΩ) – ±(10 % + 5 digits) 200 – 999 MΩ (1 MΩ) – ±(20 % + 5 digits)
• Test Voltages for Insulation: No-load: 50 V / 100 V / 250 V / 500 V / 1000 V (±0 to +20 %) Under ≥1 mA load: same voltages, up to +10 %
• Blocking Diode Test (Vbd): Range: 0.00 – 6.00 V dc (0.50 – 6.00 V measuring) Resolution: 0.01 V Accuracy: ±(5 % + 10 digits)
• Surge Protection Device (SPD): Range: 0 – 1000 V dc Measuring Range: 50 – 1000 V Resolution: 1 V Accuracy: ±(10 % + 5 digits)
• AC/DC Voltage (4 mm sockets): AC: 0.0 – 99.9 V / 100 – 700 V, resolution 0.1 / 1 V, accuracy ±(2.5 % + 2 digits) DC: 0.0 – 99.9 V / 100 – 1000 V, same resolution & accuracy
• Current (with i100 Clamp): Range: 0 – 100 A AC/DC (true RMS for AC) Resolution: 0.1 A Accuracy: ±(5 % + 2 digits) * * i100 clamp spec excludes instrument tolerances
• i100 Clamp Output Tolerance: 1 – 100 A AC/DC (<1 kHz) → 10 mV/A Accuracy: ±(1.5 % + 0.1 A)

Use and care

Follow the relevant product and equipment instructions for setup, operation and care. Inspect the item before use and store it as directed. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 1.400000
• Package Length (cm): 10.0
• Package Width (cm): 25.0
• Package Height (cm): 12.5

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the Fluke SMFT-1000/PRO Multifunction PV Analyzer SMFT-1000 with TruTest from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code TTESDM102 available if you need to identify this item again.
