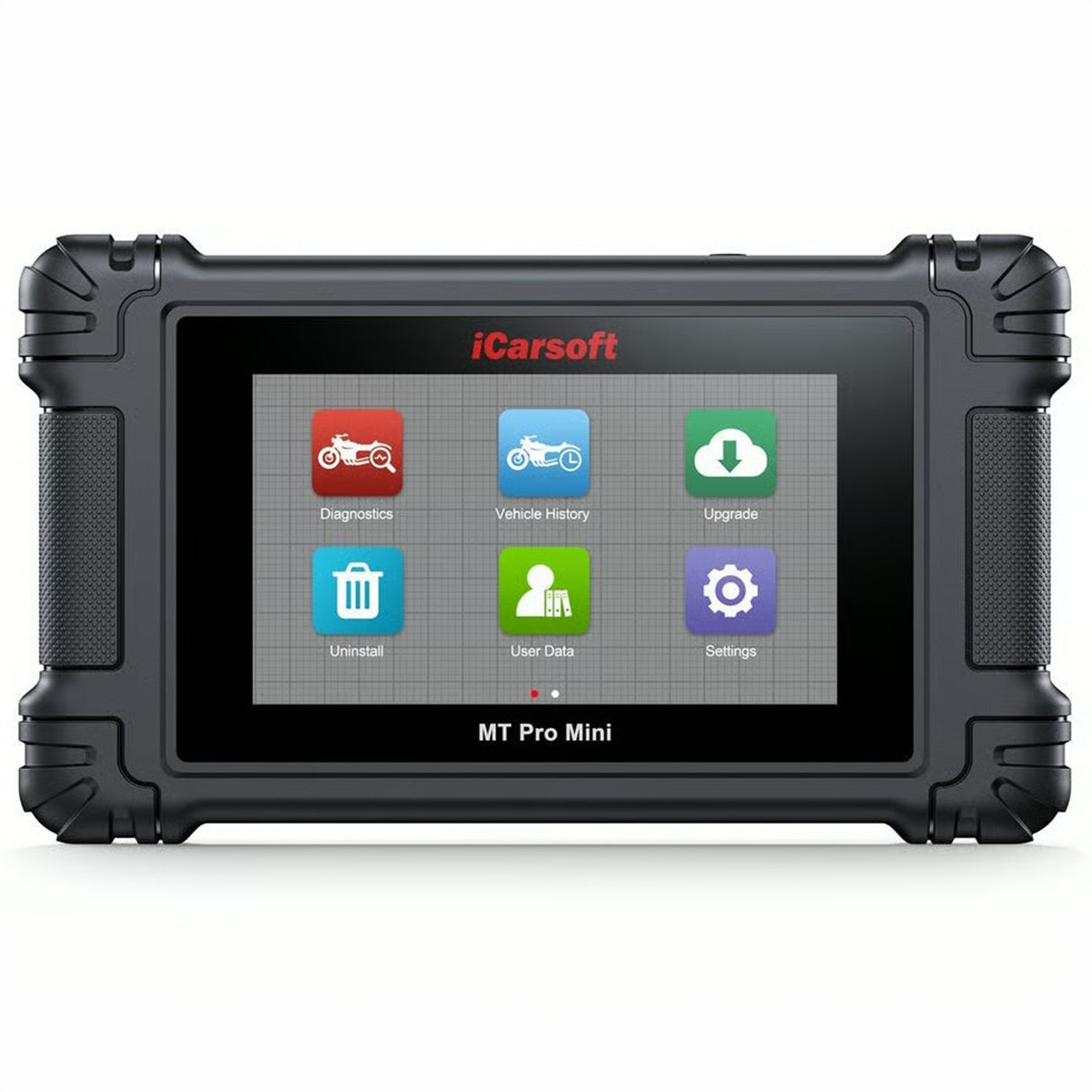

ICARSOFT MT Pro Mini Motorcycle Diagnostic Tool

Description

Shop the ICARSOFT MT Pro Mini Motorcycle Diagnostic Tool at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

ICARSOFT MT Pro Mini Motorcycle Diagnostic Tool: product details

The listed operating system is Android. The listed processor is Quad Core 1.3GHz. The listed storage is 64GB.

Choosing the right item

Compare the stated testing function, measurement range and compatibility with the vehicle or equipment you need to inspect. Check the included connections and operating requirements. A tool name alone does not establish compatibility with every vehicle, so review the exact specification before ordering.

This item belongs to our diagnostic and inspection tools range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Operating System: Android
• Processor: Quad Core 1.3GHz
• Storage: 64GB
• Display: 5-inch LCD capacitive touchscreen with 854 × 490 resolution
• Connectivity: USB 2.0 / Wi-Fi 2.4GHz / OBDII
• Power: 9–18V
• Operating Current: ≤500mA
• Battery Capacity: 3.7V 5000mAh / 18.5Wh
• Tested Battery Life: Around 6 hours of continuous use
• Type-C Input: 5V / 2A
• Power Consumption: 500mA with LCD on default brightness and Wi-Fi on @ 3.7V
• Operating Temperature: 0°C to 50°C / 32°F to 122°F
• Storage Temperature: -20°C to 70°C / -4°F to 158°F
• Operating Humidity: 5%–95% non-condensing
• Dimensions: 200 × 116 × 30.2mm / 7.87 × 4.57 × 1.19 in
• Net Weight: ≈ 380g
• Supported Communication Protocols: ISO 9141-2, ISO 14230-2 KWP2000, ISO 15765, K/L-Line, Flashing Code, SAE-J1850 VPW, ISO 11898 High-speed / Medium-speed / Low-speed / Single-wire CAN, Honda Diag-H Protocol, TP2.0, TP1.6

Use and care

Follow the tool and vehicle instructions for connection, testing and interpretation. Inspect leads or probes before use and use the procedure specified for the task. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the ICARSOFT MT Pro Mini Motorcycle Diagnostic Tool from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code GTESTC007 available if you need to identify this item again.
