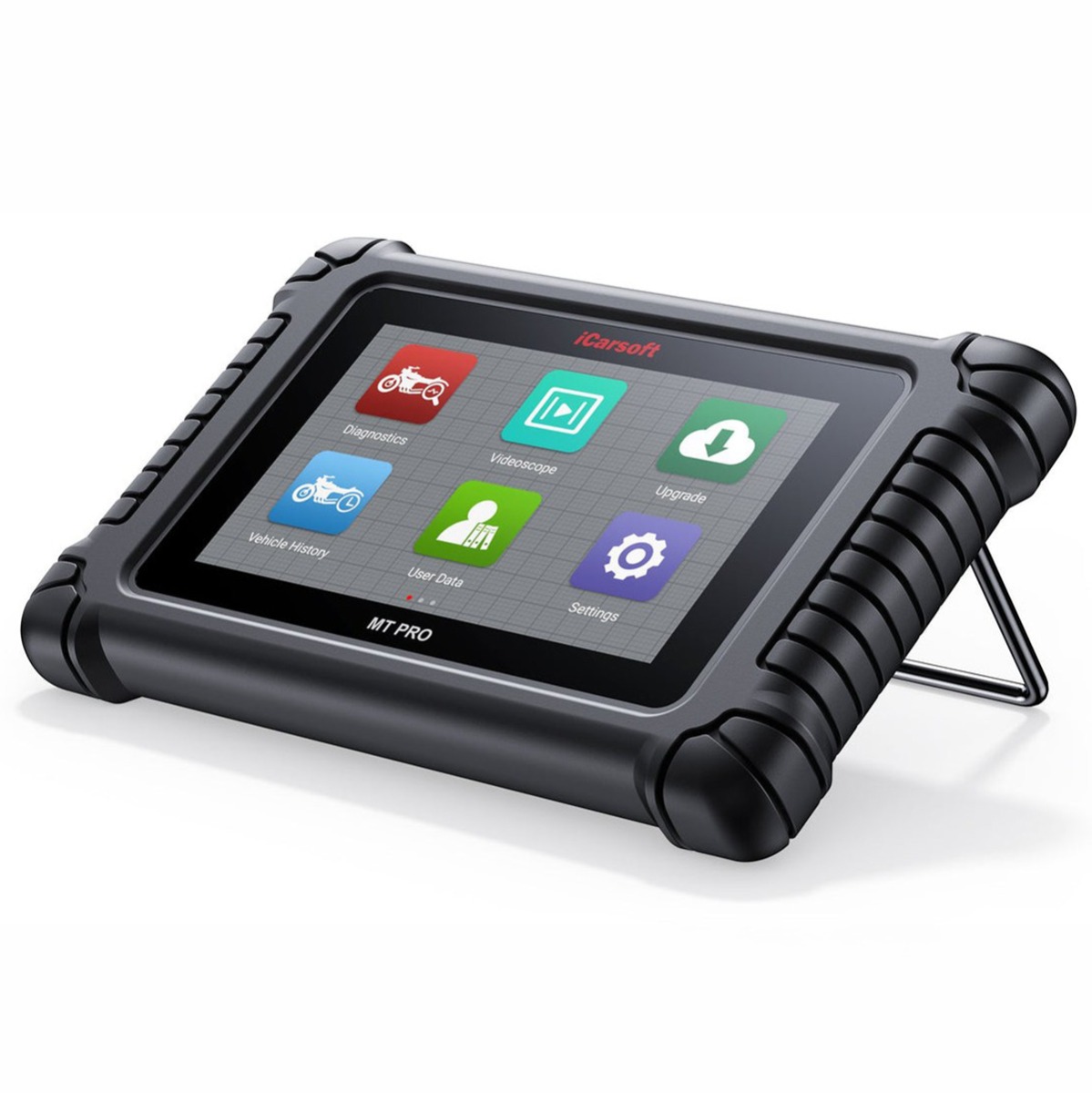

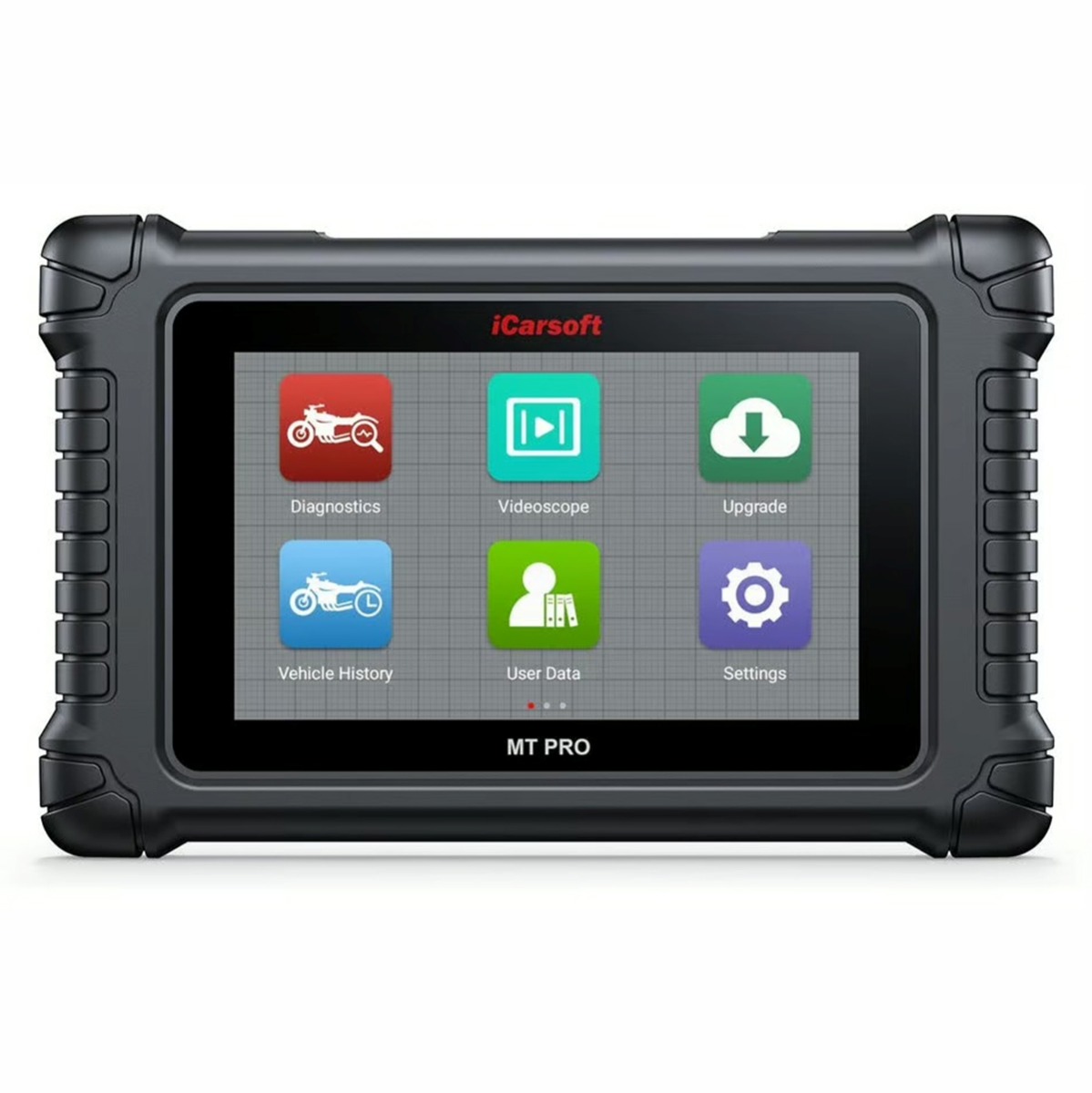

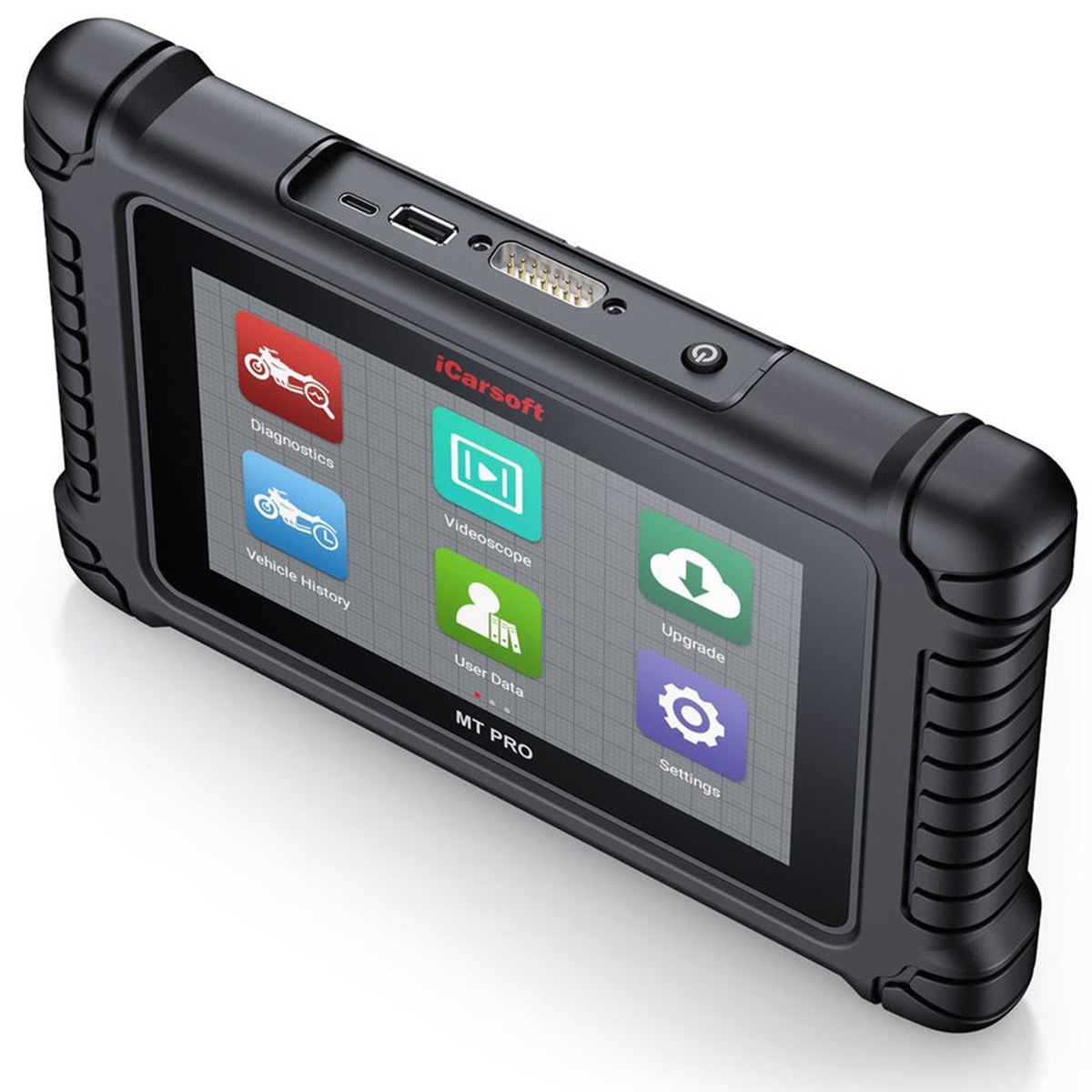

ICARSOFT MT Pro Motorcycle Diagnostic Tool

Description

Shop the ICARSOFT MT Pro Motorcycle Diagnostic Tool at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

ICARSOFT MT Pro Motorcycle Diagnostic Tool: product details

The listed operating system is Android 8.1.0. The listed processor is Quad Core 1.3 GHz. The listed memory is 1GB RAM.

Choosing the right item

Compare the stated testing function, measurement range and compatibility with the vehicle or equipment you need to inspect. Check the included connections and operating requirements. A tool name alone does not establish compatibility with every vehicle, so review the exact specification before ordering.

This item belongs to our diagnostic and inspection tools range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Operating System: Android 8.1.0
• Processor: Quad Core 1.3 GHz
• Memory: 1GB RAM
• Storage: 32GB
• Display: 7-inch LCD capacitive touchscreen with 1024 × 600 resolution
• Connectivity: USB 2.0 / Wi-Fi (2.4GHz) / Bluetooth / OBDII
• Audio Input / Output: Input: N/A / Output: Buzzer & Speaker
• OBD DLC Voltage Range: 9–18V
• Battery Capacity: 3.7V / 5000mAh Lithium-Polymer
• Charging Input: 5V / 2A
• Tested Battery Life: Around 5 hours of continuous use
• Power Consumption: 5000mA (LCD on default brightness, Wi-Fi on) @ 3.7V
• Operating Temperature: 0°C to 40°C / 32°F to 104°F
• Storage Temperature: -20°C to 70°C / -4°F to 158°F
• Operating Humidity: 5%–95% non-condensing
• Dimensions (W × H × D): 252 × 160 × 34.4mm (9.92 × 6.3 × 1.35 in)
• Net Weight: ≈750g
• Supported Automotive Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898 (High-speed, Medium-speed, Low-speed & Single-wire CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

Use and care

Follow the tool and vehicle instructions for connection, testing and interpretation. Inspect leads or probes before use and use the procedure specified for the task. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 7.550000
• Package Length (cm): 51.0
• Package Width (cm): 17.0
• Package Height (cm): 40.0

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the ICARSOFT MT Pro Motorcycle Diagnostic Tool from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code GTESTC006 available if you need to identify this item again.
