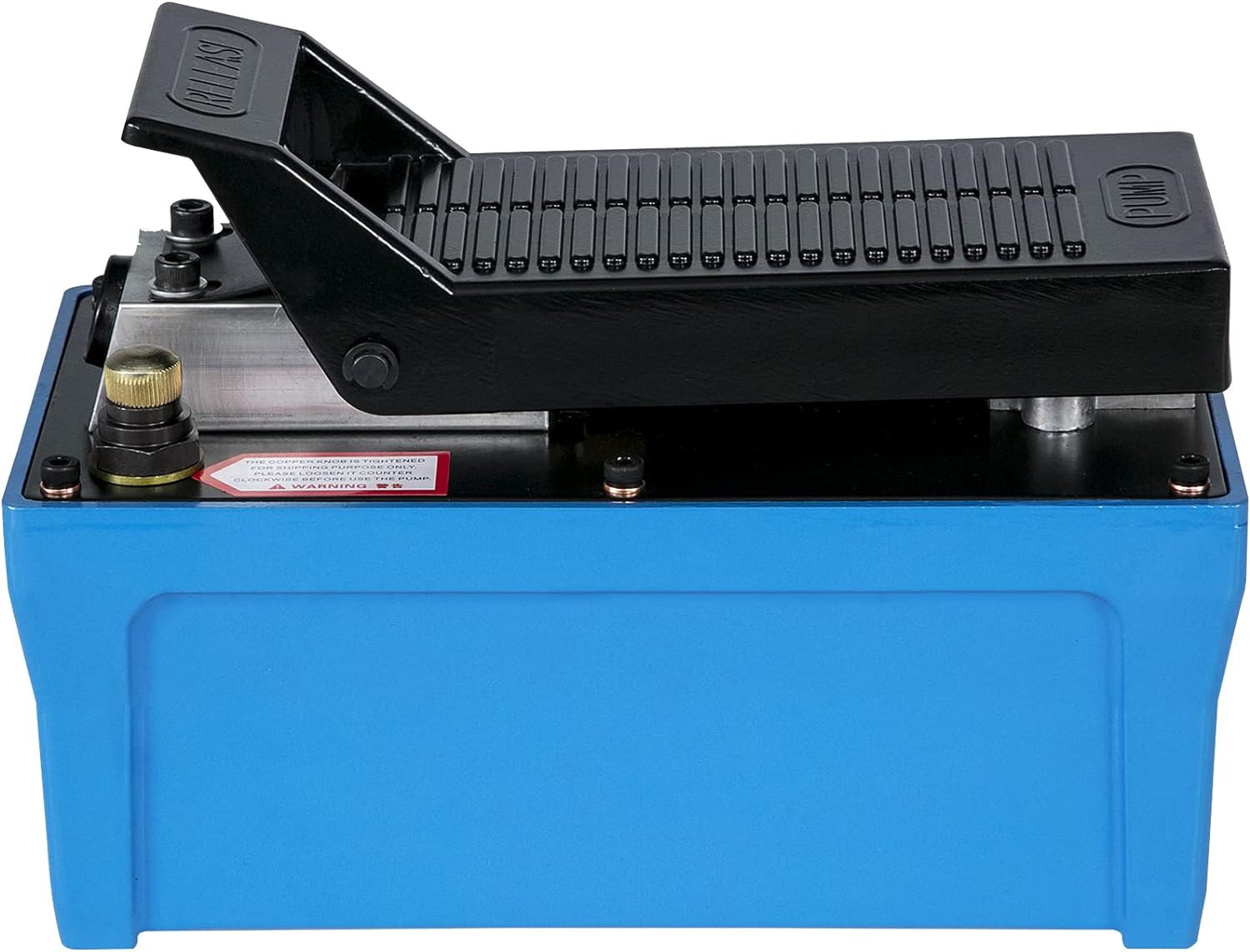

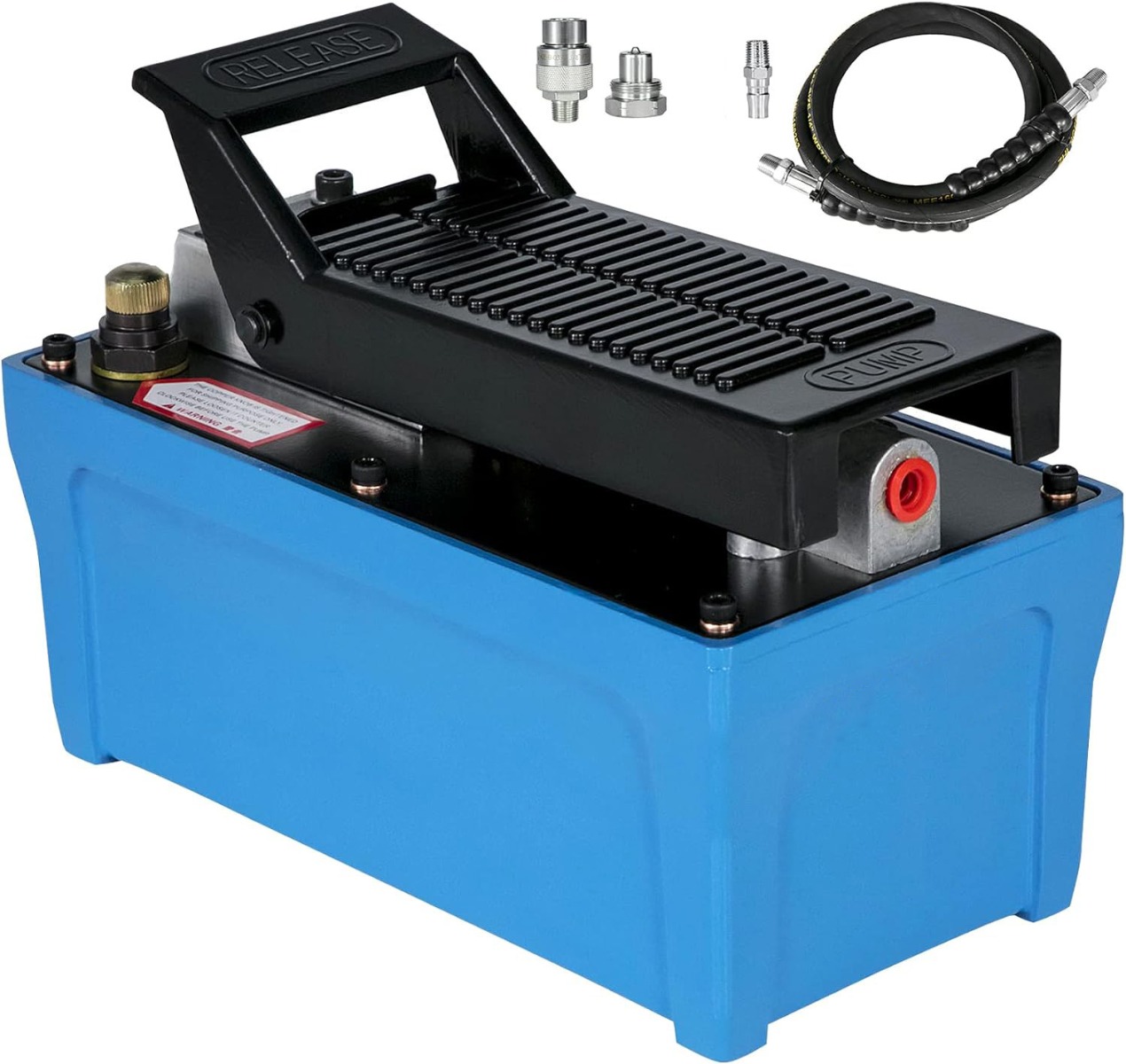

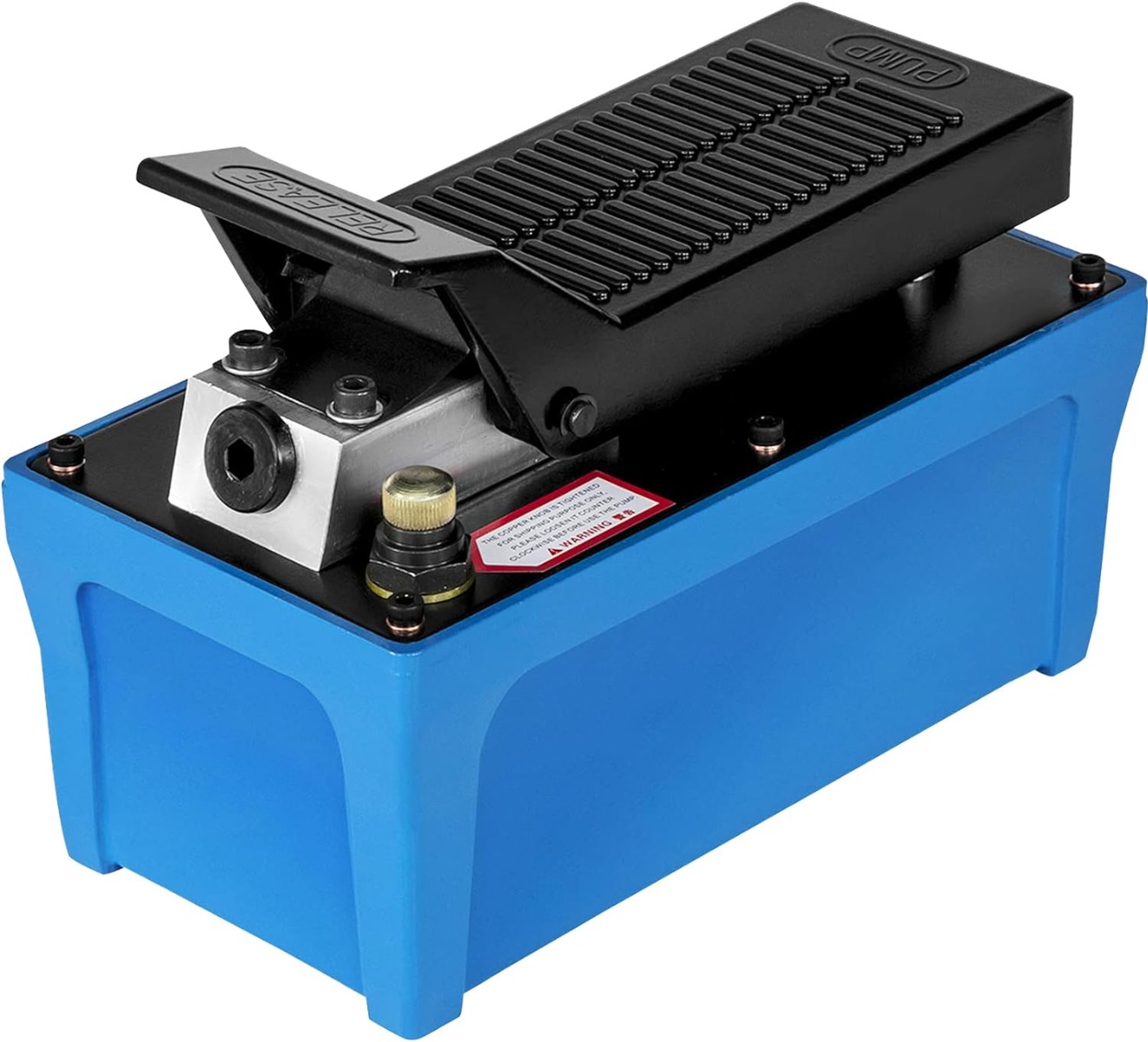

MAC AFRIC 10,000 PSI Pneumatic Powered Hydraulic Actuated Foot Pump

Description

Shop the MAC AFRIC 10,000 PSI Pneumatic Powered Hydraulic Actuated Foot Pump at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

MAC AFRIC 10,000 PSI Pneumatic Powered Hydraulic Actuated Foot Pump: product details

The listed max. air pressure is 120 PSI (8.2 Bar). The listed useable oil capacity is 1.7 L. The listed max. hydraulic pressure is 10 000 PSI (689 BAR).

Choosing the right item

Compare the stated operating requirements, connection details and capacity with the exact fluid and installation requirements. Check the included components and any operating requirements. Match the exact product specification to your task before ordering, since items with similar names can serve different purposes or use different connections.

This item belongs to our pumps and fluid handling range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Max. Air Pressure: 120 PSI (8.2 Bar)

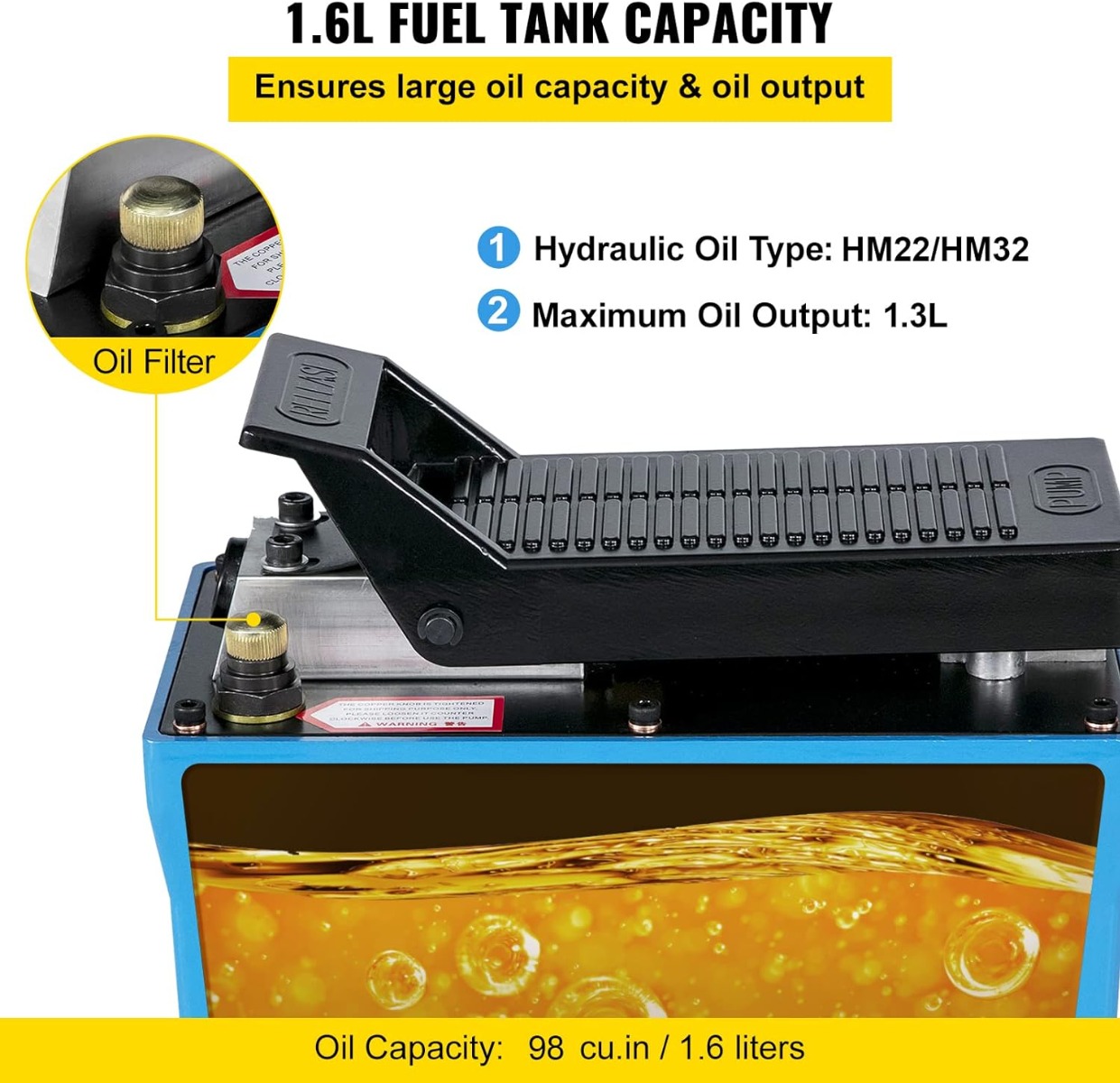

• Useable Oil Capacity: 1.7 L
• Max. Hydraulic Pressure: 10 000 PSI (689 BAR)

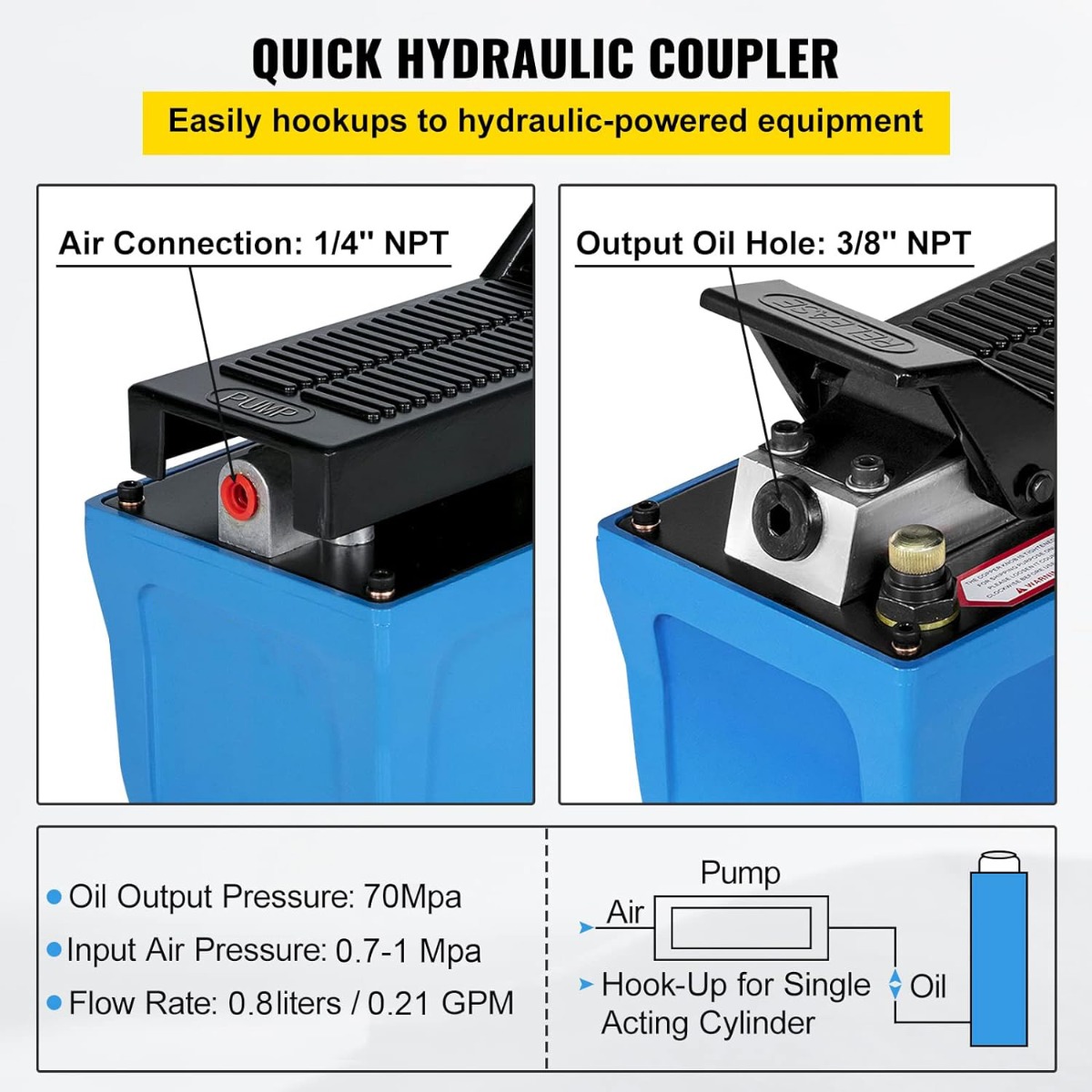

• Input Port Threads: 1/4" IN – 18 NPT
• Output Port Threads: 3/8" IN – 18 NPT
• Flow (@ 100 PSI): 0.85 L/MIN
• Flow (@ 10 000 PSI): 0.16 L/MIN
• Air Consumption: 11 CFM (@ 100 PSI)
• Air/Hydraulic Ratio: 4.17
• Operating Method: Pedal

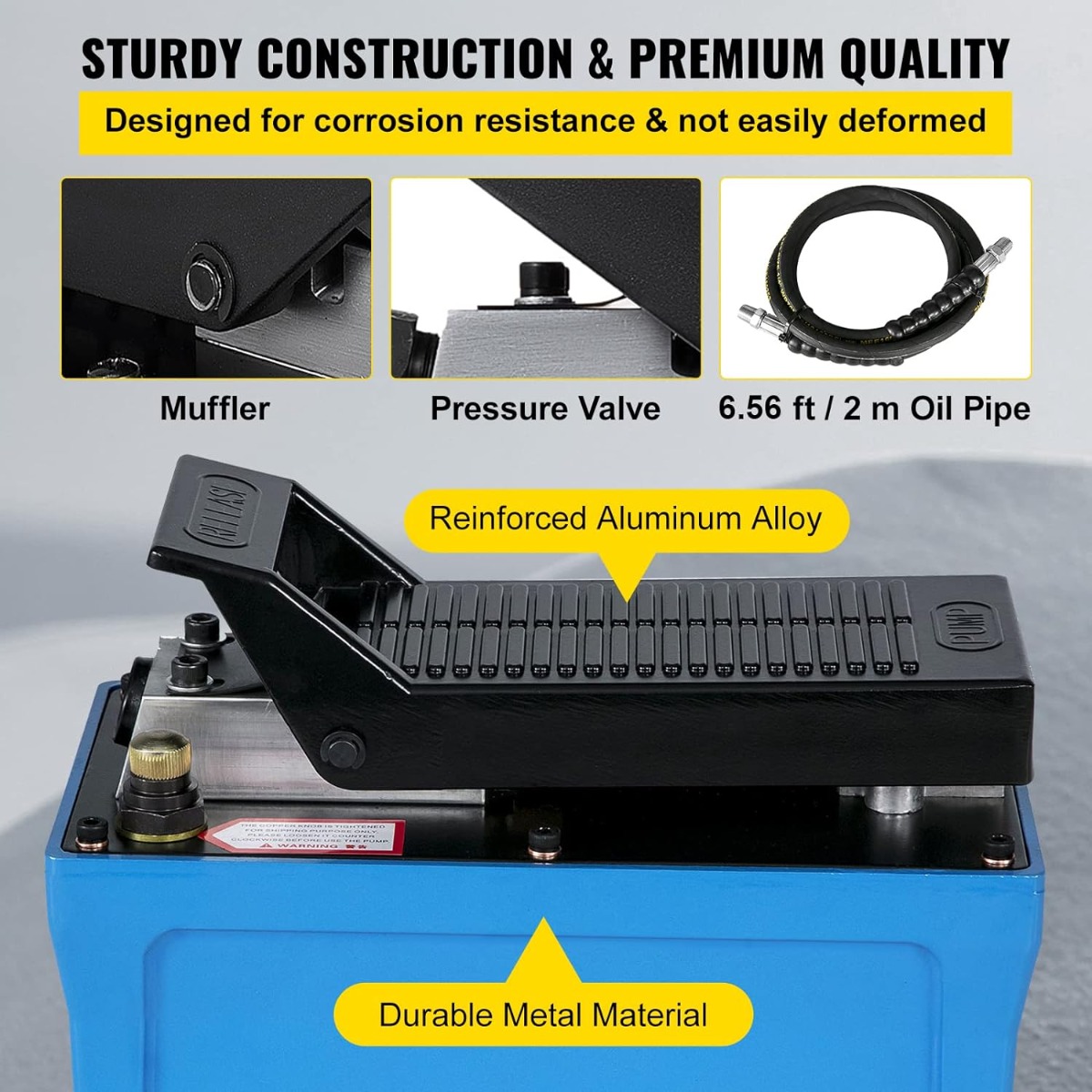

• Hose Length: 2 M

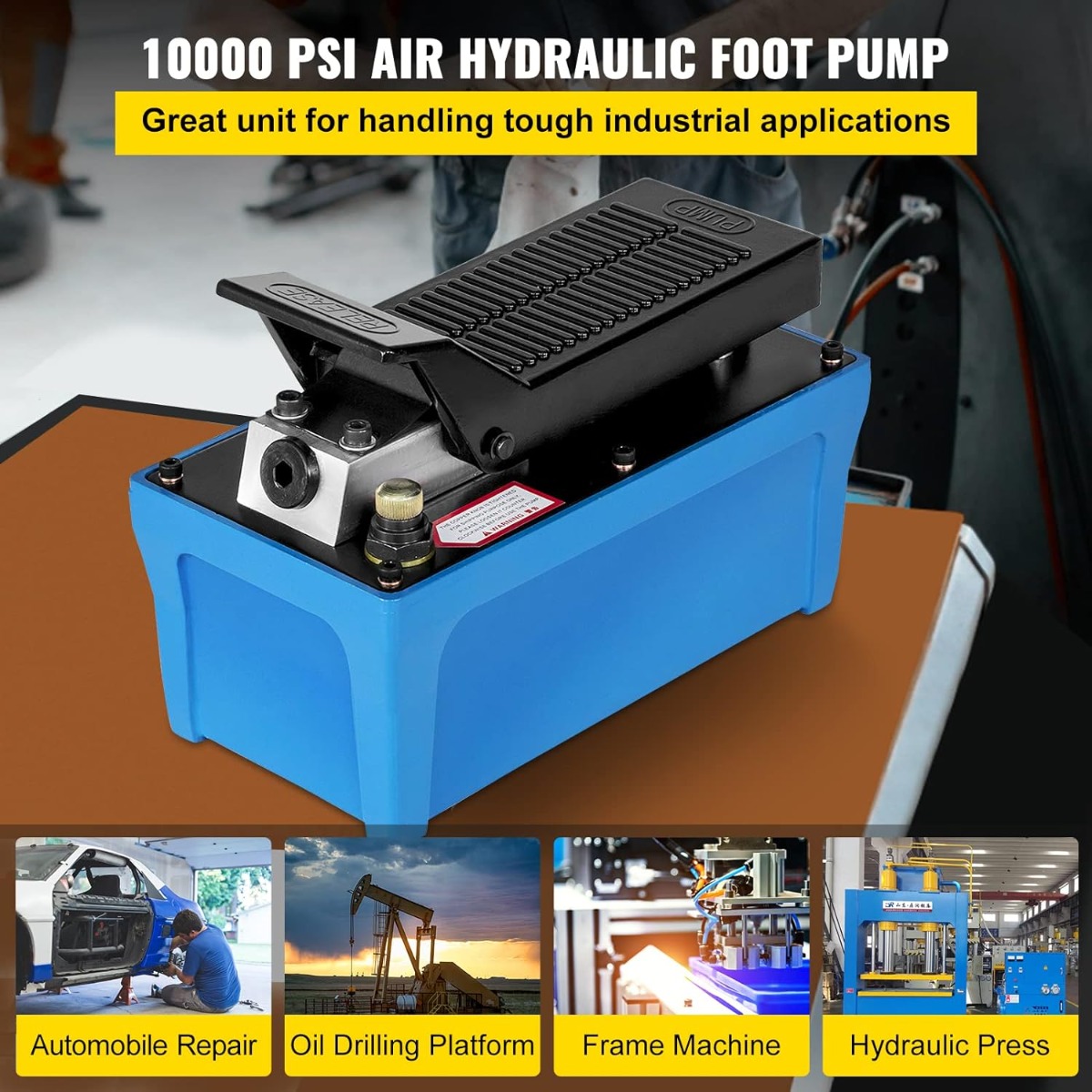

• Expert Advice: This hydraulic pump is designed to work seamlessly with the MAC AFRIC Combination Hydraulic Bead Breaker. It can also be effectively employed for any other hydraulic applications that fall within its specified parameters.

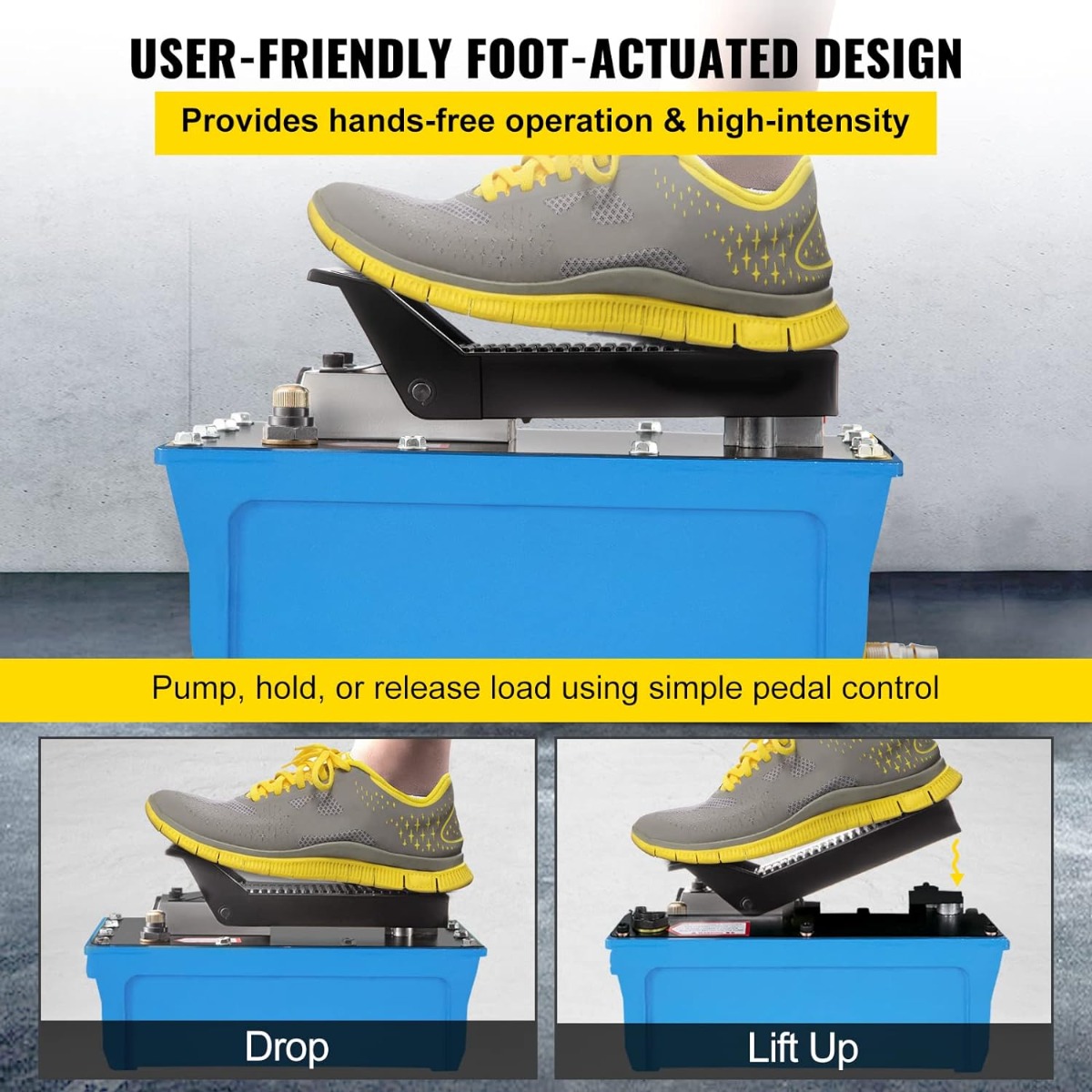

• Specifications Notification: This pump is foot-actuated, enabling hands-free operation.

Use and care

Follow the product and equipment instructions for setup, operation and care. Inspect the working components before use and apply the procedure specified for the exact item. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 9.920000
• Package Length (cm): 36.40
• Package Width (cm): 22.20
• Package Height (cm): 21.20

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the MAC AFRIC 10,000 PSI Pneumatic Powered Hydraulic Actuated Foot Pump from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code GPUMPS001 available if you need to identify this item again.
