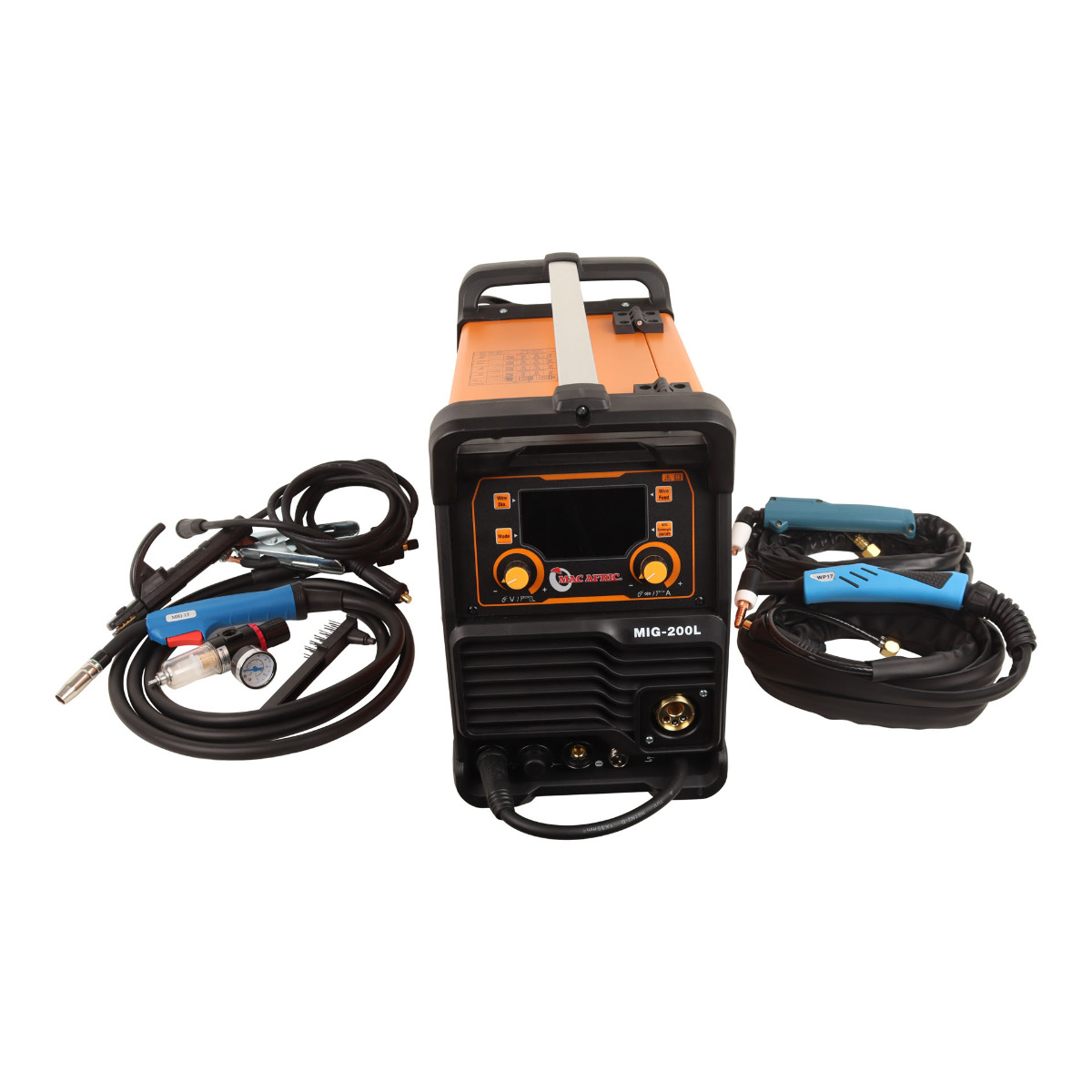

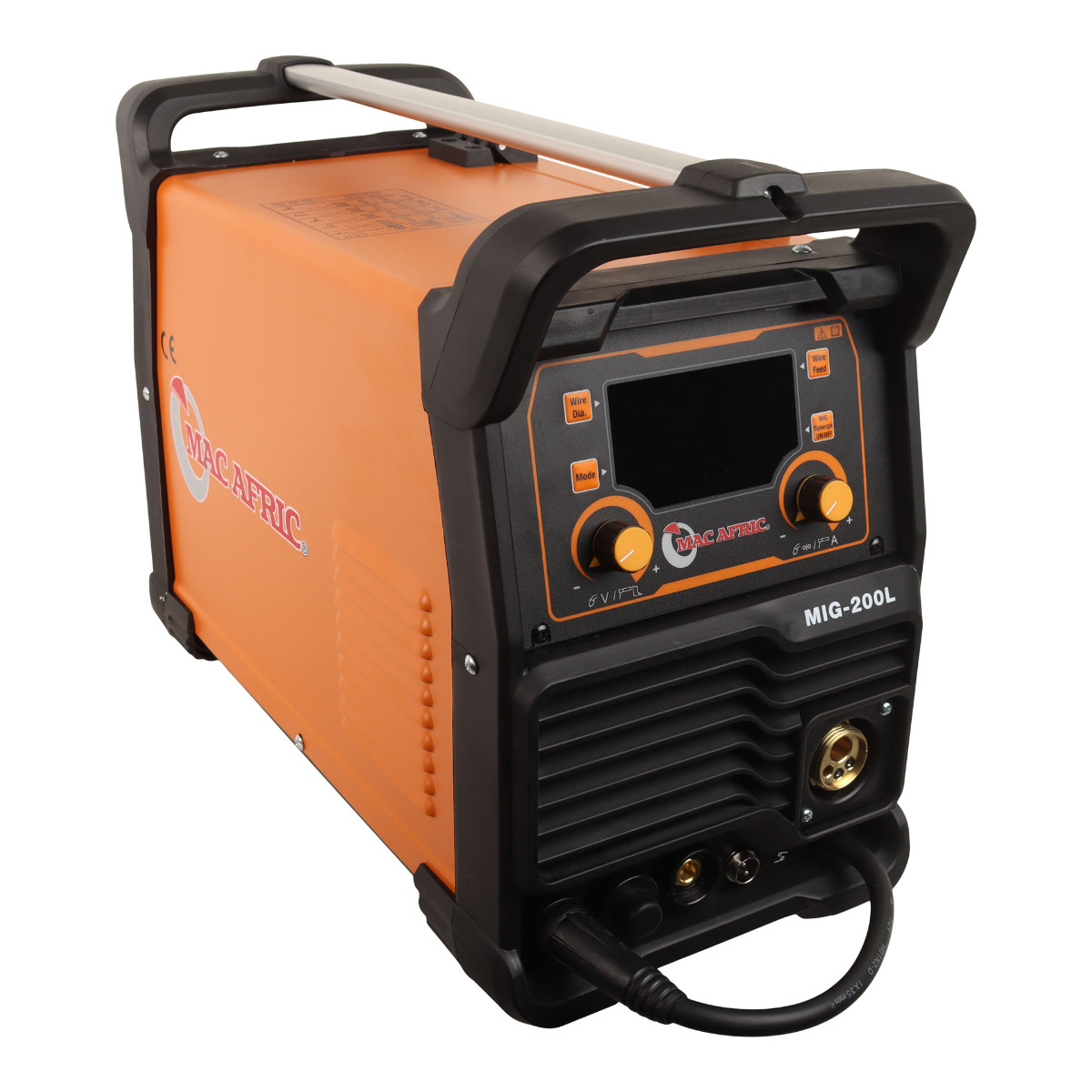

Mac Afric 4 in 1 200A MIG/CUT/MMA/Lift-TIG Multipurpose Inverter Welder

Description

Shop the Mac Afric 4 in 1 200A MIG/CUT/MMA/Lift-TIG Multipurpose Inverter Welder at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

Mac Afric 4 in 1 200A MIG/CUT/MMA/Lift-TIG Multipurpose Inverter Welder: product details

The listed input voltage / phase is 230 V / 50 Hz. The listed input current is 36 A. The listed input power is 8.3 kVA.

Choosing the right item

Compare the stated output range, input supply and supported welding processes with the workpiece and complete welding setup. Check the included components and any separately required accessories. Match the complete product specification to the intended process before ordering, since similar-looking items can use different connections, operating ratings or consumables.

This item belongs to our mig and multiprocess welders range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Input Voltage / Phase: 230 V / 50 Hz
• Input Current: 36 A
• Input Power: 8.3 kVA
• No-Load Voltage: 72 V
• Welding Current: 20 – 200 A
• Welding Voltage: 15 – 24 V
• Rated Duty Cycle: 25%
• Efficiency: 85%
• Power Factor: 0.7
• Supported Wire Sizes: 0.6 – 1.0 mm welding wire diameter
• Spool Size: Accepts 5 kg (200 mm) or 1 kg (100 mm) wire reel
• Feed Roll / Wire Groove Detail: Factory feed roll groove is for 0.8 – 1.0 mm wire. Groove must be changed for 0.6 mm wire.
• Input Current: 39 A
• Input Power: 9.0 kVA
• No-Load Voltage: 72 V
• Welding Current: 20 – 190 A
• Welding Voltage: 20.8 – 27.6 V
• Rated Duty Cycle: 25%
• Efficiency: 85%
• Power Factor: 0.7
• Electrode Size Range: 1.0 – 5.0 mm
• Input Current: 25 A
• Input Power: 5.8 kVA
• No-Load Voltage: 72 V
• Welding Current: 20 – 190 A
• Welding Voltage: 10.8 – 17.6 V
• Rated Duty Cycle: 25%
• Efficiency: 85%
• Power Factor: 0.7
• Input Current: 30 A
• Input Power: 6.9 kVA
• No-Load Voltage: 380 V
• Cutting Current: 20 – 40 A
• Cutting Voltage: 88 – 96 V
• Maximum Cutting Thickness: 12 mm
• Rated Duty Cycle: 25%
• Efficiency: 85%
• Power Factor: 0.7
• Flowmeter: Included

Use and care

Follow the product and equipment instructions for installation, setup and operation. Inspect the item and its working components before use. Apply the operating conditions and protective equipment requirements specified for the exact product and task. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 21.410000
• Package Length (cm): 57.40
• Package Width (cm): 33.78
• Package Height (cm): 43.94

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the Mac Afric 4 in 1 200A MIG/CUT/MMA/Lift-TIG Multipurpose Inverter Welder from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code EWELDM240 available if you need to identify this item again.
