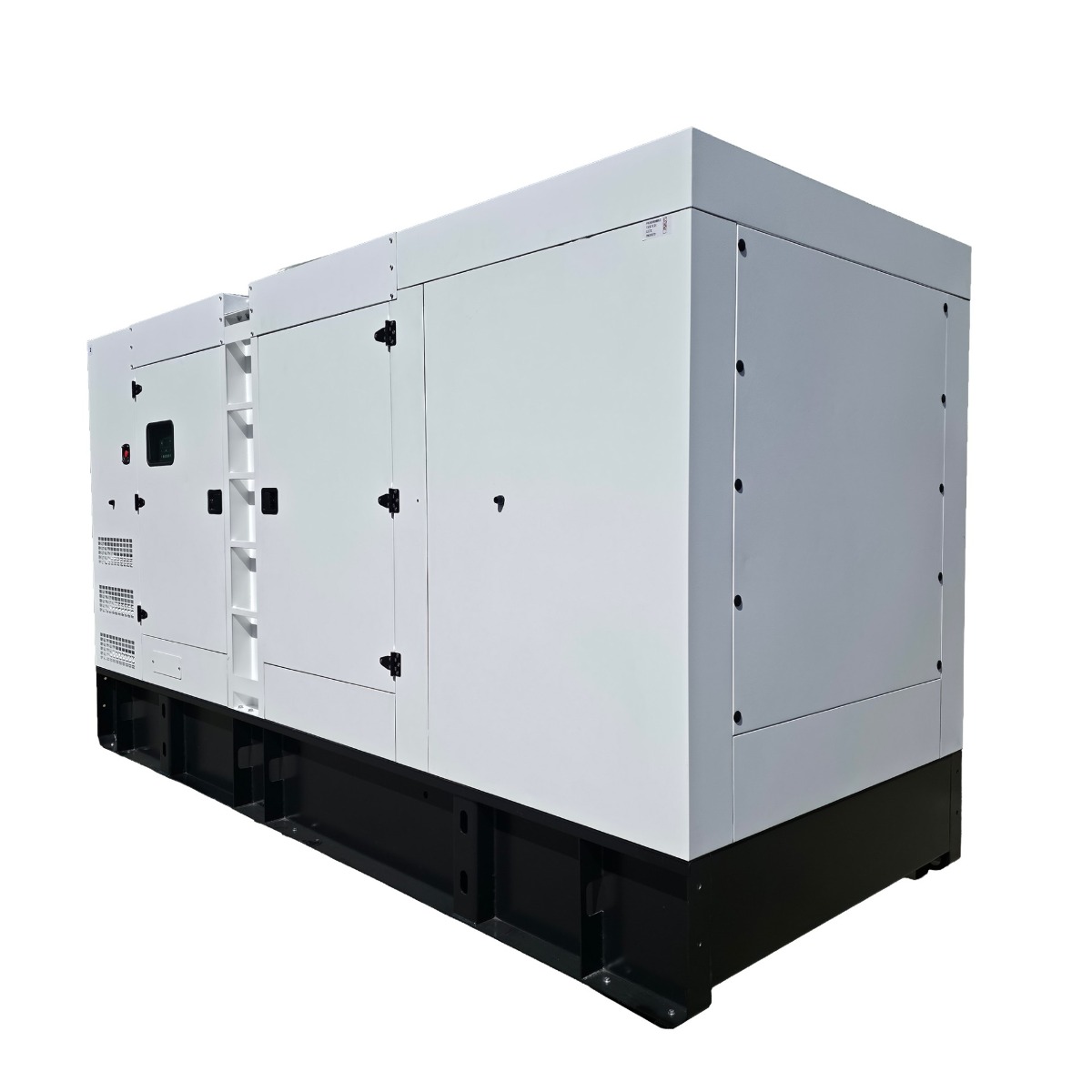

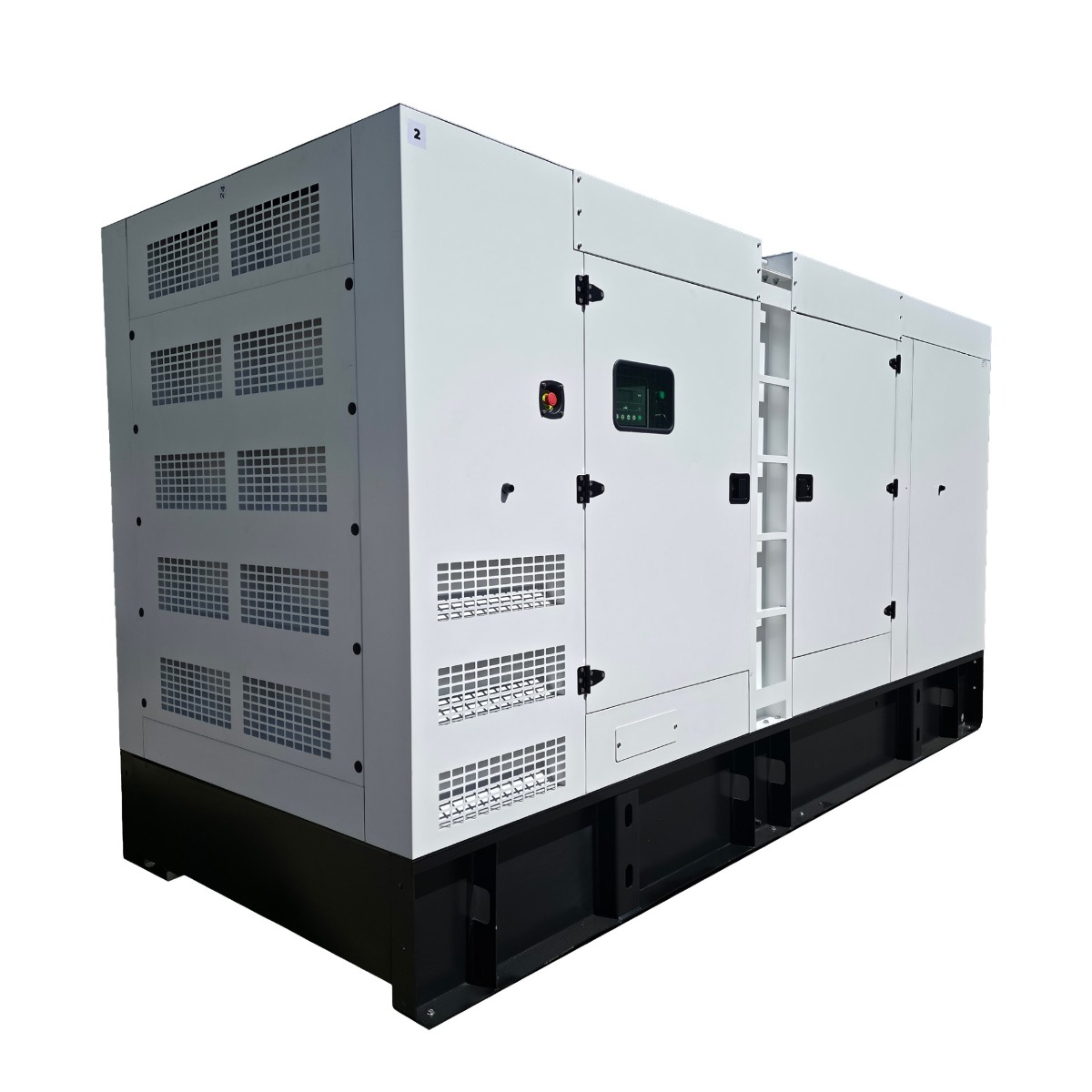

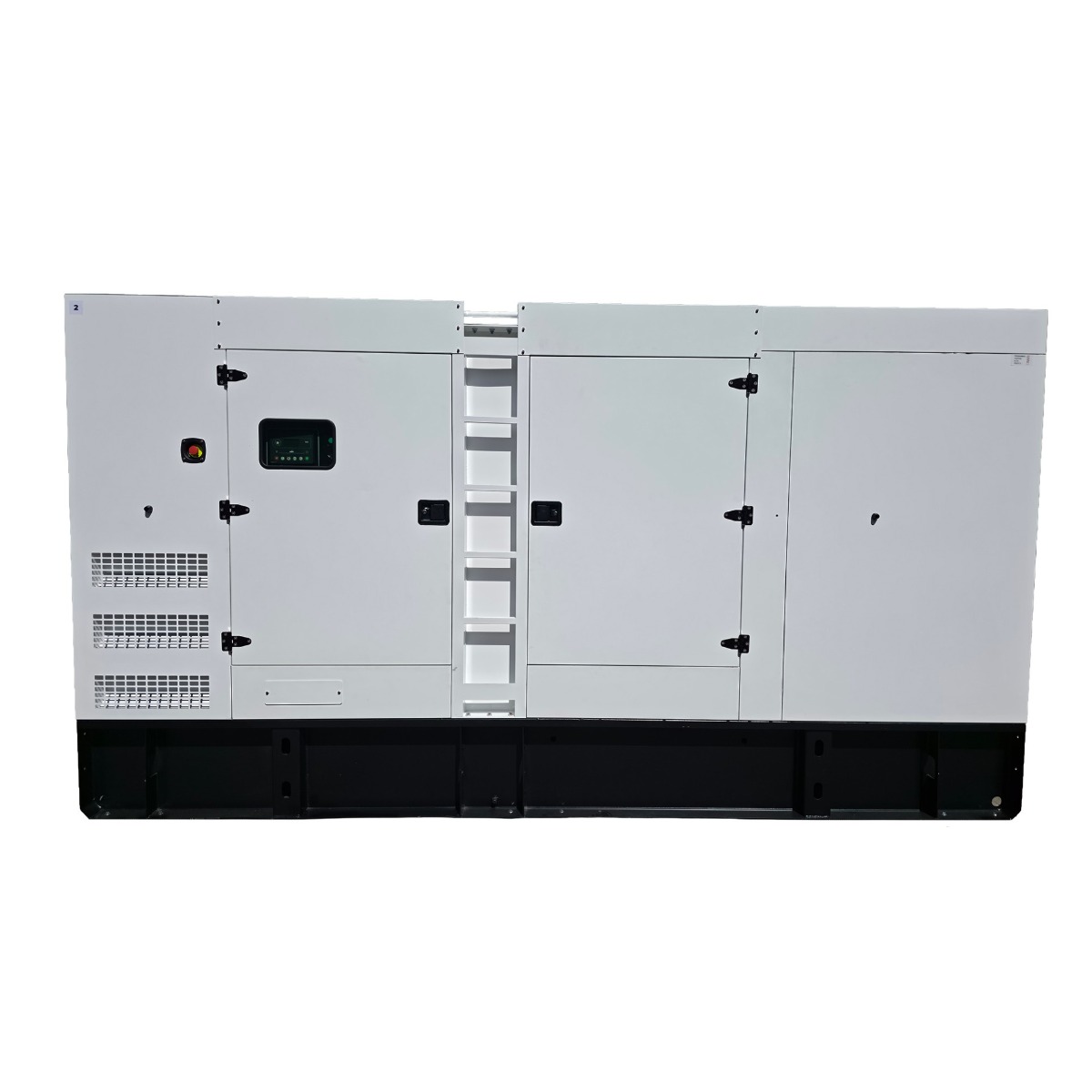

MAC AFRIC 500kVA 3PH Diesel Generator

Description

Shop the MAC AFRIC 500kVA 3PH Diesel Generator at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

MAC AFRIC 500kVA 3PH Diesel Generator: product details

The listed prime power (prp) is 400 kW / 500 kVA. The listed standby power (esp) is 440 kW / 550 kVA. The listed rated voltage is 400 V / 230 V.

Choosing the right item

Compare the stated output rating, voltage and phase configuration with your installation requirements. Check the starting arrangement and fuel specification. A standby rating can differ from continuous output, so use the exact model data and connected load requirements when selecting a generator for your application.

This item belongs to our diesel generators range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Prime Power (PRP): 400 kW / 500 kVA
• Standby Power (ESP): 440 kW / 550 kVA
• Rated Voltage: 400 V / 230 V
• Frequency: 50 Hz
• Phase Connection: 3 Phase, 4 Wire
• Power Factor: 0.8
• Rated Current: 720 A per phase
• Voltage Regulation: ±1.0%
• Rated Speed: 1500 rpm
• Engine Manufacturer: Cummins
• Engine Model: QSZ13-G10
• Engine Type: 4-cycle, in-line, 6-cylinder
• Aspiration: Turbocharged
• Cooling System: Water-cooled
• Displacement: 13 L
• Engine Prime Power: 463 kW (621 HP)
• Engine Standby Power: 509 kW (682 HP)
• Compression Ratio: 17:1
• Cylinder Bore × Stroke: 130 mm × 163 mm
• Cylinder Quantity: 6
• Governing: Electronic
• Fuel Consumption (50% Load): 54 L/hr
• Fuel Consumption (75% Load): 80 L/hr
• Fuel Consumption (100% Load): 107 L/hr
• Coolant Capacity: 23.1 L
• Thermostat Range: 83–95 °C
• Max Coolant Temp: 104 °C
• Starter Voltage: 12 V / 24 V
• Battery Charging System: 65 A / 40 A
• Minimum Battery Capacity: 950 CCA / 475 CCA
• Alternator Model: SXR440
• Insulation Class: H
• Protection Rating: IP23
• Excitation Type: Self-excited
• Overspeed Limit: 2250 rpm
• Winding: Double layer concentric
• Waveform Distortion (No Load): <1.5%
• Waveform Distortion (Load): <5.0%
• Bearings: Single
• Click here to read: How to Choose the Right Size Generator
• Fuel consumption depends on load: approximately 54 L/hr at 50% load, 80 L/hr at 75% load, and 107 L/hr at full load.

Use and care

Follow the generator instructions for installation, operation and maintenance. Use the prescribed fuel and lubricant, and have the electrical connection requirements assessed for the exact equipment and installation. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the MAC AFRIC 500kVA 3PH Diesel Generator from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code MGENER500 available if you need to identify this item again.
