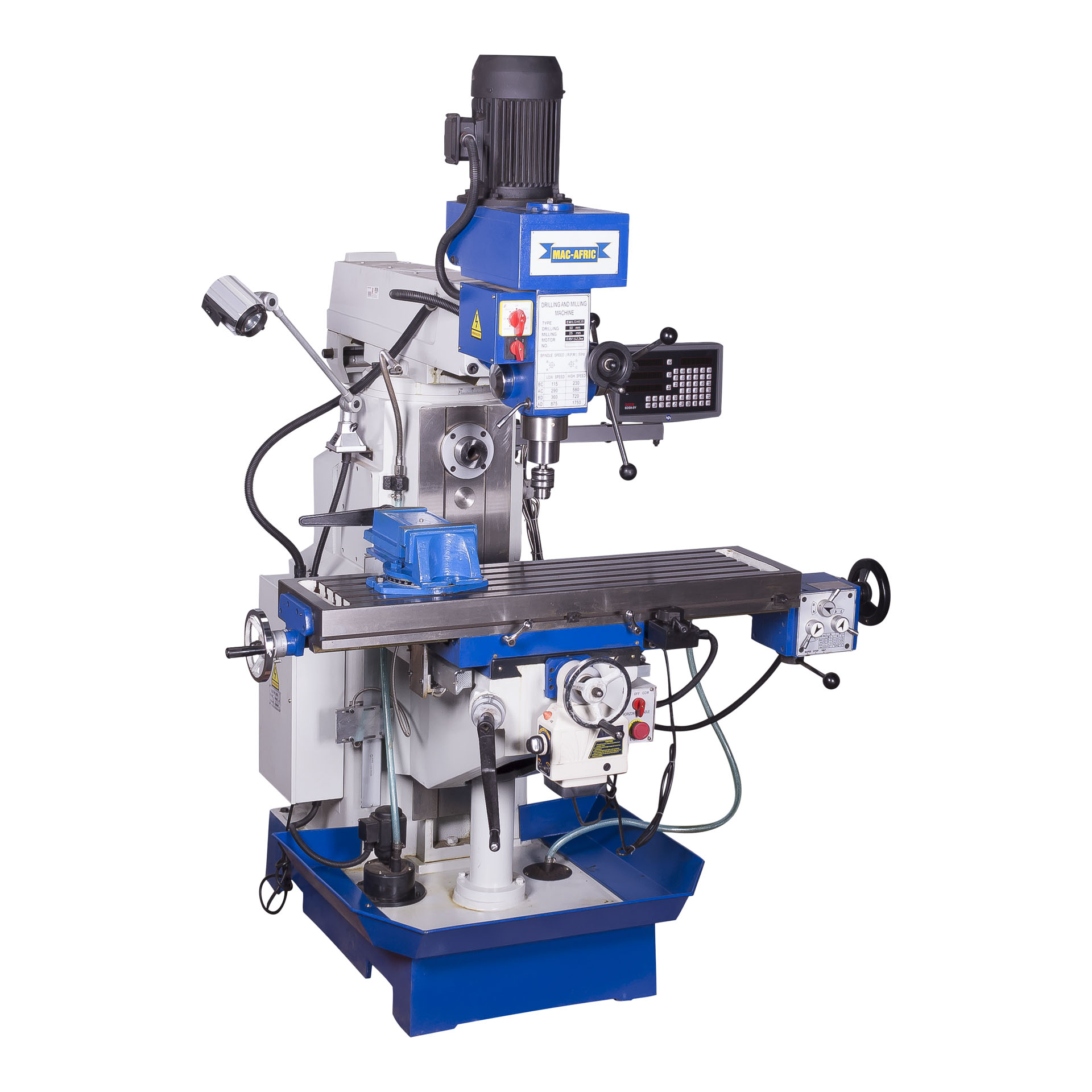

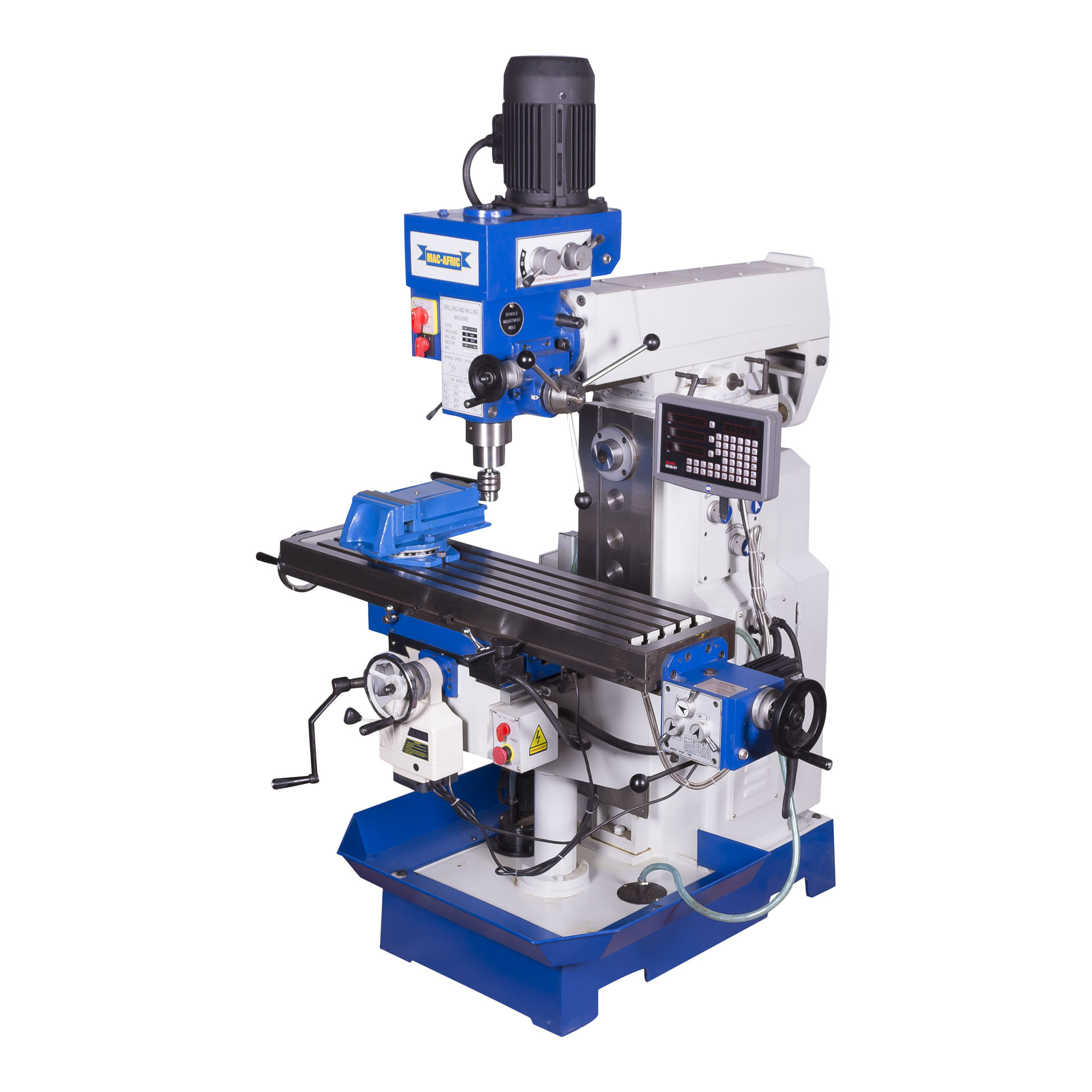

MAC AFRIC Dual Motor Geared Head Milling Machine

Description

Shop the MAC AFRIC Dual Motor Geared Head Milling Machine at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

MAC AFRIC Dual Motor Geared Head Milling Machine: product details

The listed motor power is 1.5 KW / 2 HP (H) and 2.2 KW / 3 HP (V). The listed voltage is 380 V @ 50 HZ. The listed table size is 1 120 x 230 MM.

Choosing the right item

Compare the working capacity, spindle configuration and power supply with your machining requirements. Check the stated control method, mounting arrangement and included components. Match the complete model specification to your workshop and planned work before choosing compatible tooling.

This item belongs to our milling and cnc machines range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Motor Power: 1.5 KW / 2 HP (H) and 2.2 KW / 3 HP (V)
• Voltage: 380 V @ 50 HZ
• Table Size: 1 120 x 230 MM
• Table Travel: 630 x 350 MM
• Cross Travel: 100 – 480 MM
• Max. Drilling: 50 MM
• Max. Boring: 120 MM
• Knee Travel: NA
• Spindle Taper: MT#4
• Max. End Milling: 25 MM
• Max. Tapping: M16
• Spindle Speed: 115 – 1 750 RPM (12 Steps)
• Spindle Speed (Low): 115, 290, 360, 875 MM
• Spindle Speed (High): 230, 580, 720, 1 750 MM
• Extra features: Water Pump Light, Digital Readout, Auto-Feed

Use and care

Follow the machine instructions for installation, setup and operation. Secure the workpiece and tooling as directed before machining. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Length (cm): 158.00
• Package Width (cm): 145.00
• Package Height (cm): 215.00
• Package Weight (kg): 1450.000000

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the MAC AFRIC Dual Motor Geared Head Milling Machine from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code EMILGH635 available if you need to identify this item again.
