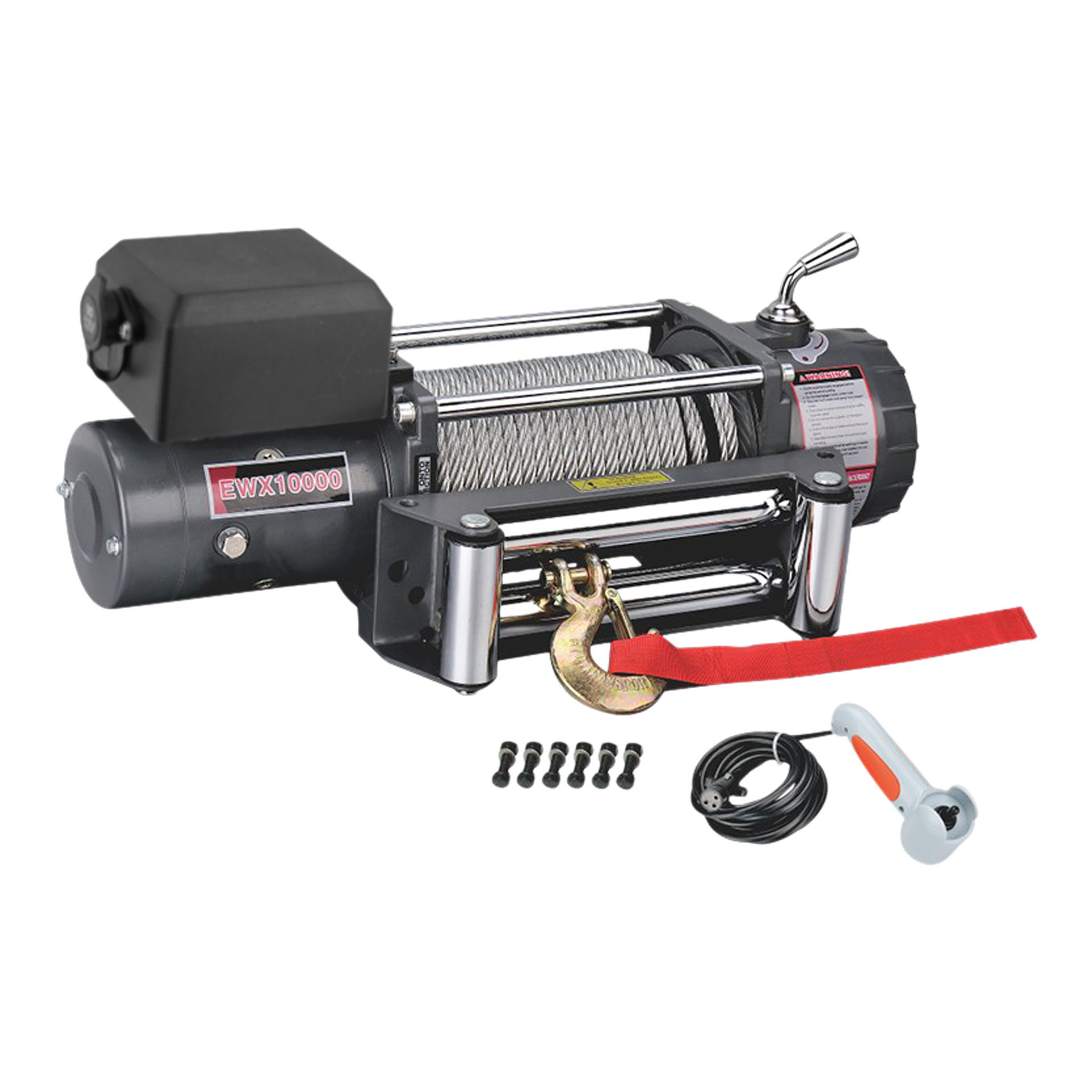

MAC AFRIC EWX 10000U 12 V Heavy Duty Winch

Description

Shop the MAC AFRIC EWX 10000U 12 V Heavy Duty Winch at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

MAC AFRIC EWX 10000U 12 V Heavy Duty Winch: product details

The listed rated line pull is 10 000 lbs (4536 kgs). The listed motor type is Series Wound. The listed motor specifications is 12V: Input: 4.3 KW / 5.8 HP; Output: 2.3 KW / 3.1 HP.

Choosing the right item

Compare the stated capacity, working length and attachment arrangement with your task. Check the listed application and installation requirements. Lifting and securing equipment can serve different purposes, so use the exact product specification and instructions when selecting the item for your work.

This item belongs to our hoists winches and load securing range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Rated Line Pull: 10 000 lbs (4536 kgs)
• Motor Type: Series Wound
• Motor Specifications: 12V: Input: 4.3 KW / 5.8 HP; Output: 2.3 KW / 3.1 HP
• Gear Reduction Ratio: 230:1
• Cable Length: 26 M (85)
• Cable Diameter: 9.2 MM (3/8)
• Mounting Bolt Pattern: 10" × 4.5" (254 mm × 114.3 mm), 4-M10
• Mounting Dimensions: 25.4 x 11.4 MM
• Line Speed: 1.9 – 6.3 M/MIN
• High Starting Torque: Ideal for applications needing strong initial force like electric vehicles and industrial machinery.
• Robustness: Can handle overloads and variable loads well, making it suitable for harsh conditions.
• Simple Control: Requires less complex control systems compared to permanent magnet motors.
• Variable Speed Operation: Can operate over a wide speed range with appropriate control.
• Cost-Effectiveness: More economical in high-torque, heavy-duty uses compared to permanent magnet motors.
• High Power Density: Delivers strong performance in a compact design, beneficial in automotive and aerospace settings.

Use and care

Follow the equipment instructions for installation, attachment and operation. Inspect working components before use and stay within the stated limits for the exact setup. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 38.000000
• Package Length (cm): 32.00
• Package Width (cm): 65.00
• Package Height (cm): 33.00

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the MAC AFRIC EWX 10000U 12 V Heavy Duty Winch from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code GWINCH901 available if you need to identify this item again.
