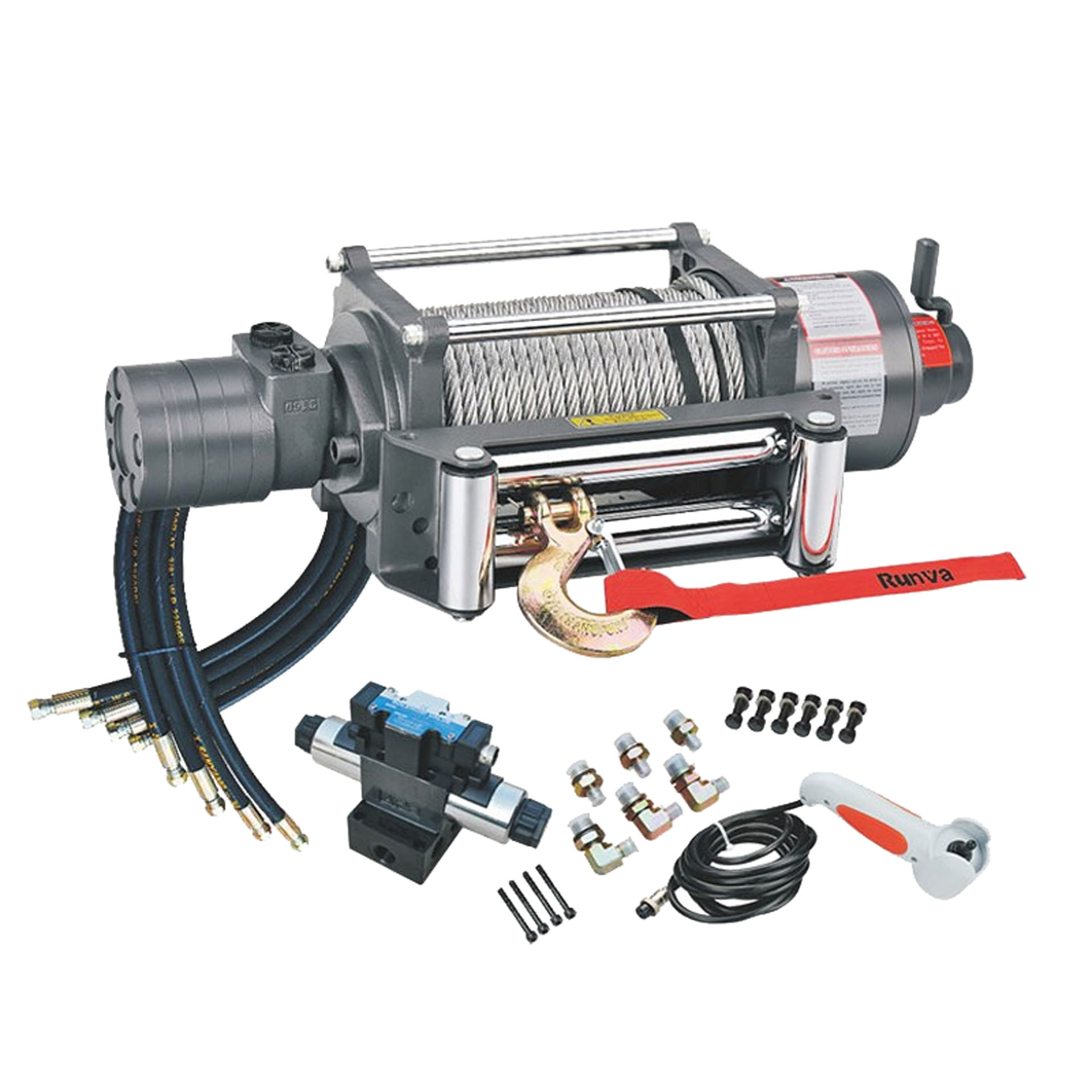

MAC AFRIC HWP12000A Hydraulic Winch

Description

Shop the MAC AFRIC HWP12000A Hydraulic Winch at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

MAC AFRIC HWP12000A Hydraulic Winch: product details

The listed rated line pull is 5 443 KG (12 000 LBS) @ 4.9 M3 084 KG (6 800 LBS) @ 25.5 M. The listed motor type is Hydraulic. The listed motor specifications is NA.

Choosing the right item

Compare the stated capacity, working length and attachment arrangement with your task. Check the listed application and installation requirements. Lifting and securing equipment can serve different purposes, so use the exact product specification and instructions when selecting the item for your work.

This item belongs to our hoists winches and load securing range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Rated Line Pull: 5 443 KG (12 000 LBS) @ 4.9 M3 084 KG (6 800 LBS) @ 25.5 M
• Motor Type: Hydraulic
• Motor Specifications: NA
• Motor Displacement: 65 ML/R
• Gear Reduction Ratio: Low Speed: 28:1High Speed: 6:1
• Cable Length: 25.5 M (83.7" IN)
• Cable Diameter: 10.2 MM (13/13" IN)
• Mounting Bolt Pattern: 254 x 114.3 MM (10" x 4.5" IN); 4-M10
• Mounting Dimensions: 25.4 x 11.4 MM
• Pressure: 110 BAR (1595 PSI or 11 MPA)
• Drum Size (Dia x L): 63 x 223 MM (2.5" IN x 8.8" IN)
• Oil Flow: 5 – 45 L/MIN
• Line Speed: Low: 0.6 – 5.3 M/MINHigh: 3.3 – 31.2 M/MIN

Use and care

Follow the equipment instructions for installation, attachment and operation. Inspect working components before use and stay within the stated limits for the exact setup. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Length (cm): 31.00
• Package Width (cm): 34.00
• Package Height (cm): 74.00
• Package Weight (kg): 51.000000

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the MAC AFRIC HWP12000A Hydraulic Winch from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code GWINCH915 available if you need to identify this item again.
