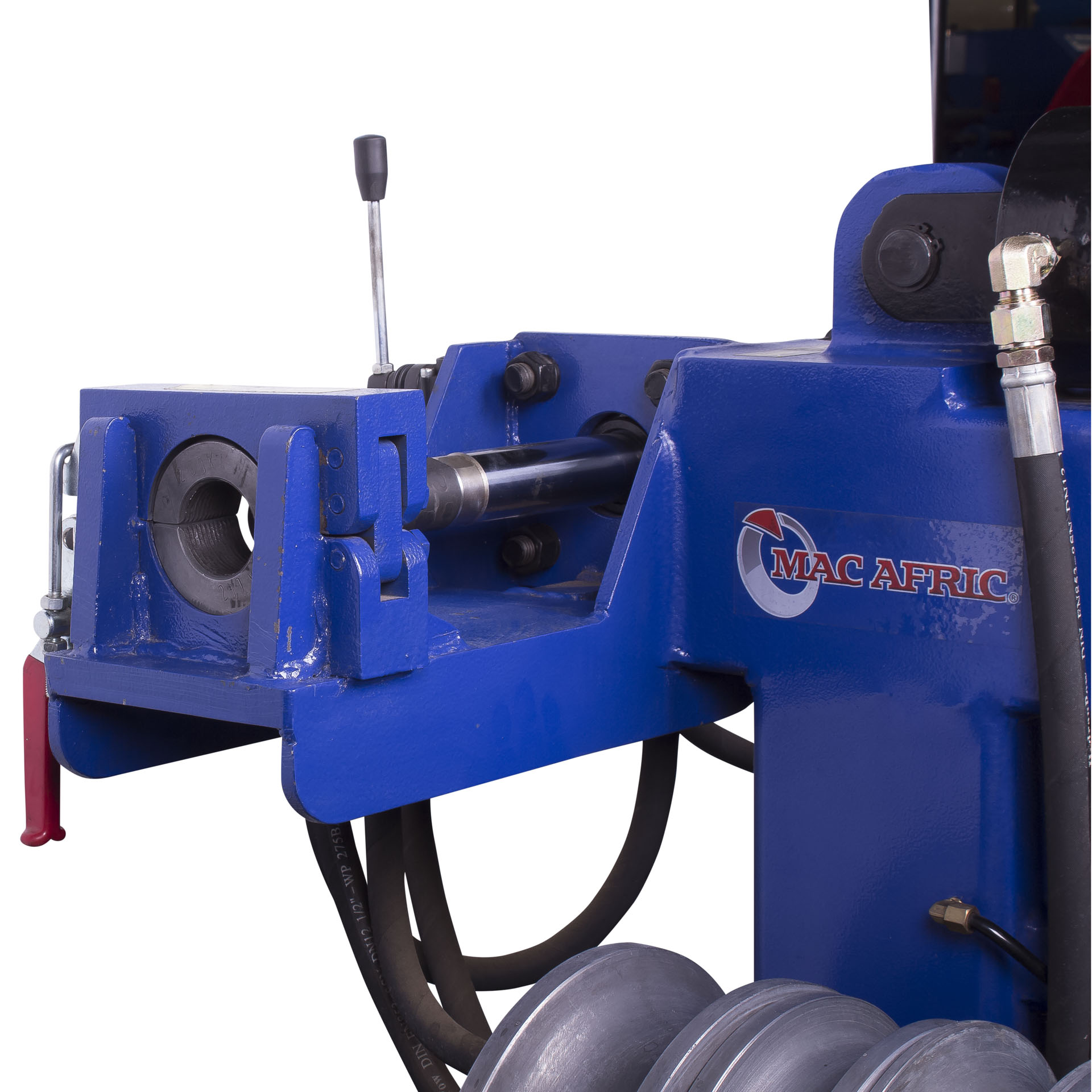

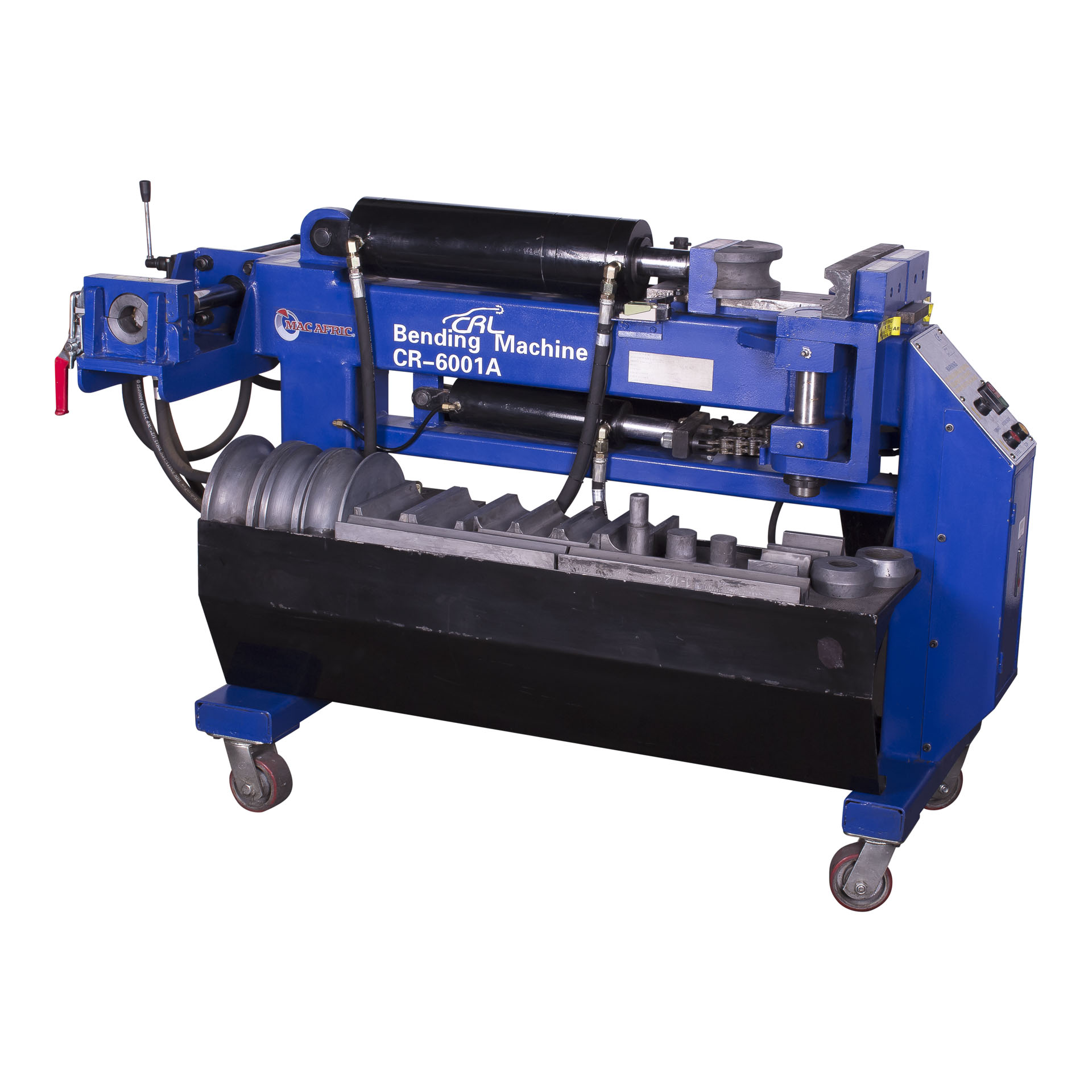

MAC AFRIC Hydraulic Exhaust / Tube Bender

Description

Shop the MAC AFRIC Hydraulic Exhaust / Tube Bender at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

MAC AFRIC Hydraulic Exhaust / Tube Bender: product details

The listed power output is 5.5 kW (7.5 HP). The listed voltage is 380 V @ 50 Hz. The listed max. bending force is 27 215 kg (60 000 lbs).

Choosing the right item

Compare the working capacity, material specification and tooling arrangement with your task. Check the stated operating method and included components. Different bending and forming machines serve different applications, so match the exact model specification to your workpiece before ordering.

This item belongs to our metal forming equipment range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Power Output: 5.5 kW (7.5 HP)
• Voltage: 380 V @ 50 Hz
• Max. Bending Force: 27 215 kg (60 000 lbs)
• Hydraulic Pump Output: 290 BAR (4 200 PSI)
• Bending Dies: 1-1/2", 1-5/8", 1-3/4", 2" and 2-1/2" in
• Back Shoes: 1-3/4", 2" and 2-1/2" in
• Half Shoes: 1-3/4", 2" and 2-1/2" in
• Bend Plugs: 1-3/4", 2" and 2-1/2" in
• Reducing Tools: 1-7/8" and 2" in
• Expander Dies: 1-1/2", 1-5/8", 1-3/4", 2" and 2-1/2" in
• Adapter Collars: 1-3/4", 2" and 2-1/2" in
• Segment Expander: 1-3/4", 2" and 2-1/2" in
• Click here to read: The Adendorff Metal Bending Guide

Use and care

Follow the equipment instructions for setup, adjustment and operation. Inspect tooling and secure the workpiece as directed. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Length (cm): 190.00
• Package Width (cm): 98.00
• Package Height (cm): 130.00
• Package Weight (kg): 750.000000

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the MAC AFRIC Hydraulic Exhaust / Tube Bender from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code GPIPEB007 available if you need to identify this item again.
