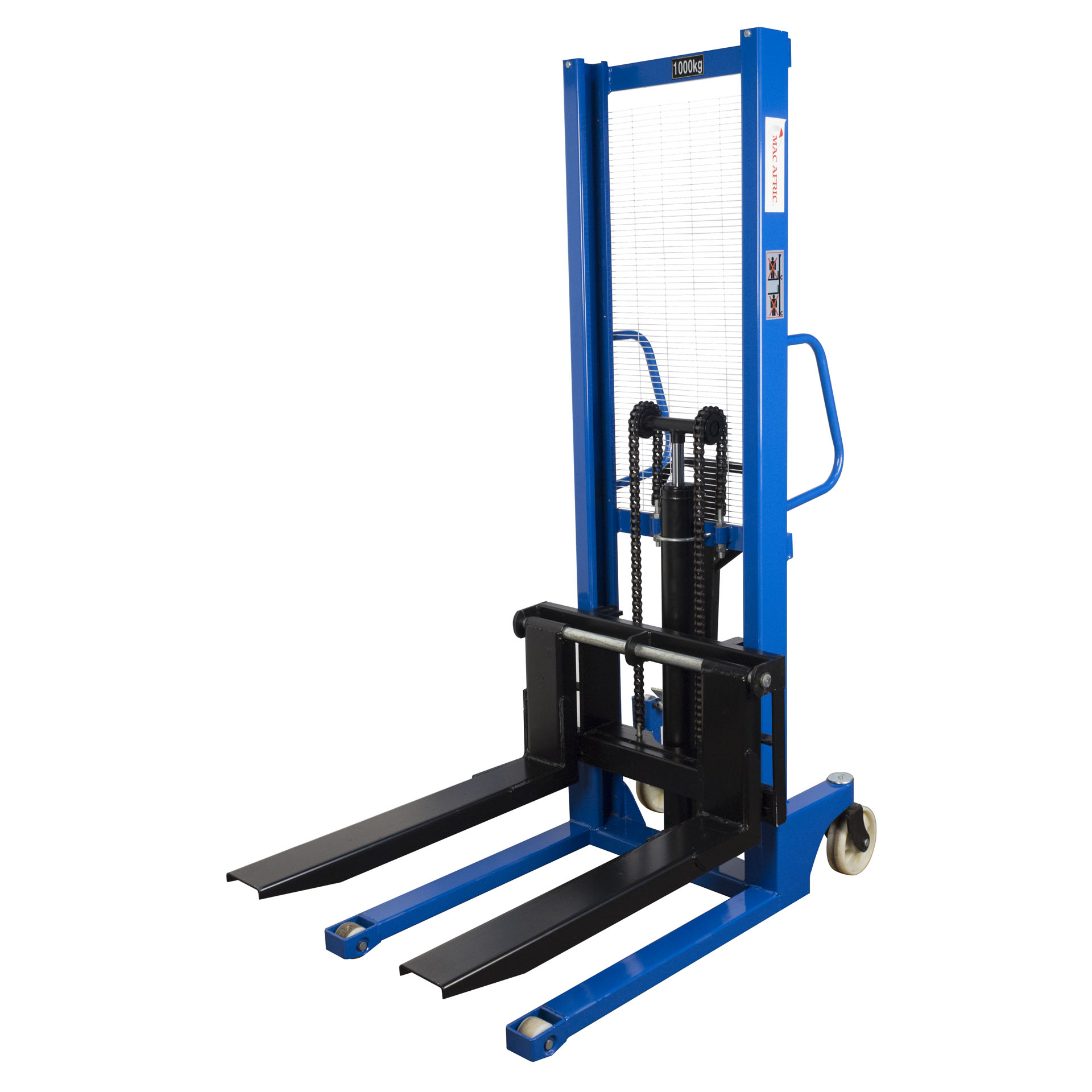

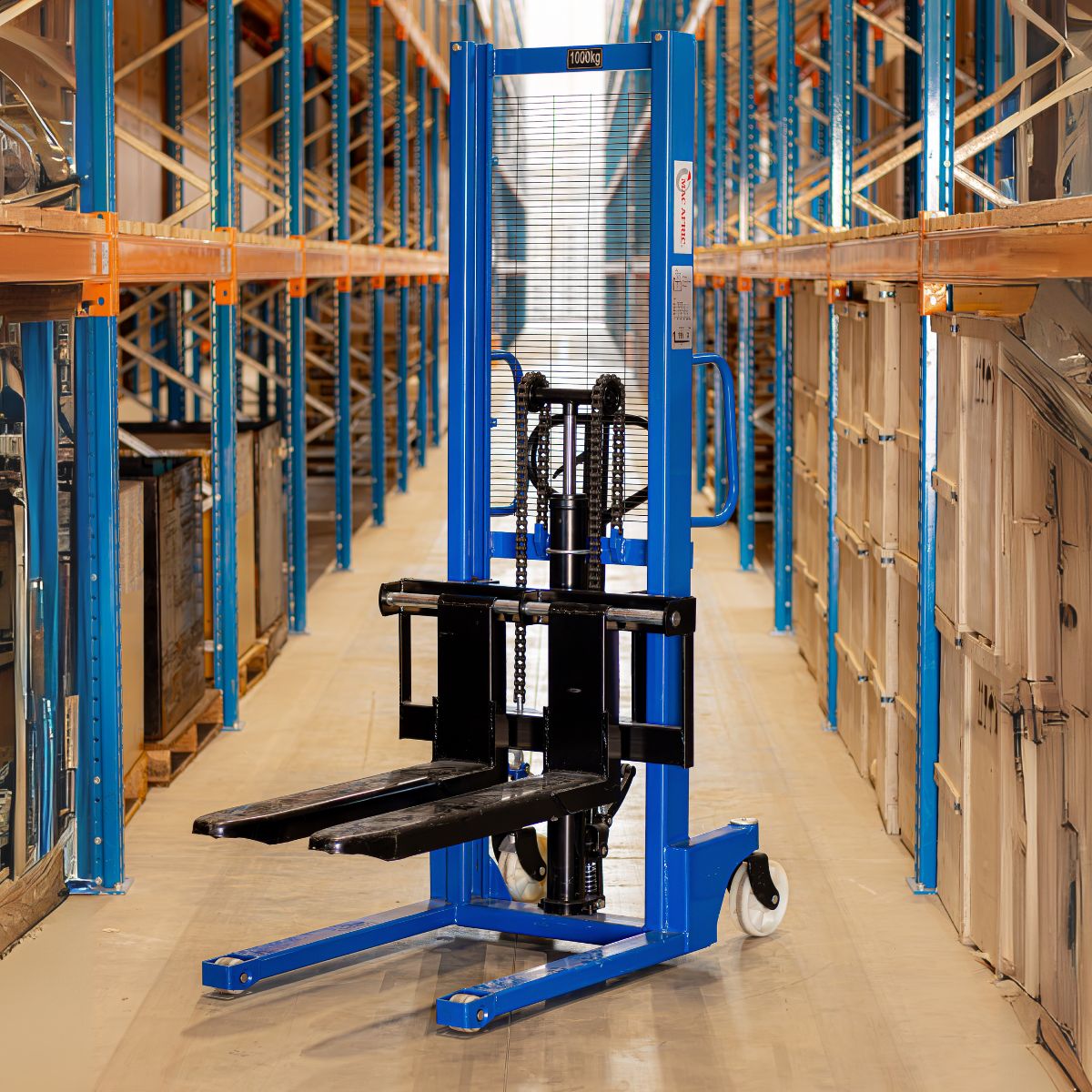

MAC AFRIC Hydraulic Hand Pallet Stacker 1 Ton (740 x 900 mm)

Description

Shop the MAC AFRIC Hydraulic Hand Pallet Stacker 1 Ton (740 x 900 mm) at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

MAC AFRIC Hydraulic Hand Pallet Stacker 1 Ton (740 x 900 mm): product details

The listed capacity is 1 Ton (1000 kg). The listed lowered height is 85 mm. The listed total height is 2 m.

Choosing the right item

Compare the stated capacity, working dimensions and lift range with the loads you need to handle. Check the operating method and required working surface. Match the complete equipment specification to your workspace and handling task before selecting a model.

This item belongs to our pallet trucks and stackers range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Capacity: 1 Ton (1000 kg)
• Lowered Height: 85 mm
• Total Height: 2 m
• Lift (Stroke / Travel): 1.6 m
• Fork Length: 900 mm
• Fork Width: 145 mm
• Overall Width: 770 mm
• Distance Between Forks: 375 mm
• Handle Length: 950 mm
• Ground Clearance: 30 mm
• General Safety Rules: Do not exceed rated capacity (1,000 kg / 1 ton). Never stand or allow others on forks. Keep all body parts clear of moving components. Use correct lifting techniques. Only trained personnel may operate.
• During Operation: Operate only on stable, level surfaces. Lower forks before movement. Push rather than pull for better control. Centre load evenly to avoid tipping. Raise/lower loads gradually. Adhere to load plate warnings regarding lift height limits.
• Load Handling: Do not lift unstable or poorly stacked loads. Avoid exceeding recommended stacking height. Secure and correctly position load before lifting.
• Parking and Storage: Lower forks fully when not in use. Park safely outside walkways or zones. Never leave a loaded unit unattended.
• Maintenance and Inspection: Conduct weekly/monthly checks based on use. Address malfunctions immediately. Use only approved hydraulic oil and replacement parts.
• Operation: This stacker offers both hand and foot operation for versatility and ease of use.

Use and care

Follow the equipment instructions for loading, movement and care. Inspect working components and use the prescribed operating surface and load arrangement. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 190.000000
• Package Length (cm): 136.00
• Package Width (cm): 73.00
• Package Height (cm): 204.00

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the MAC AFRIC Hydraulic Hand Pallet Stacker 1 Ton (740 x 900 mm) from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code GPALLT003 available if you need to identify this item again.
