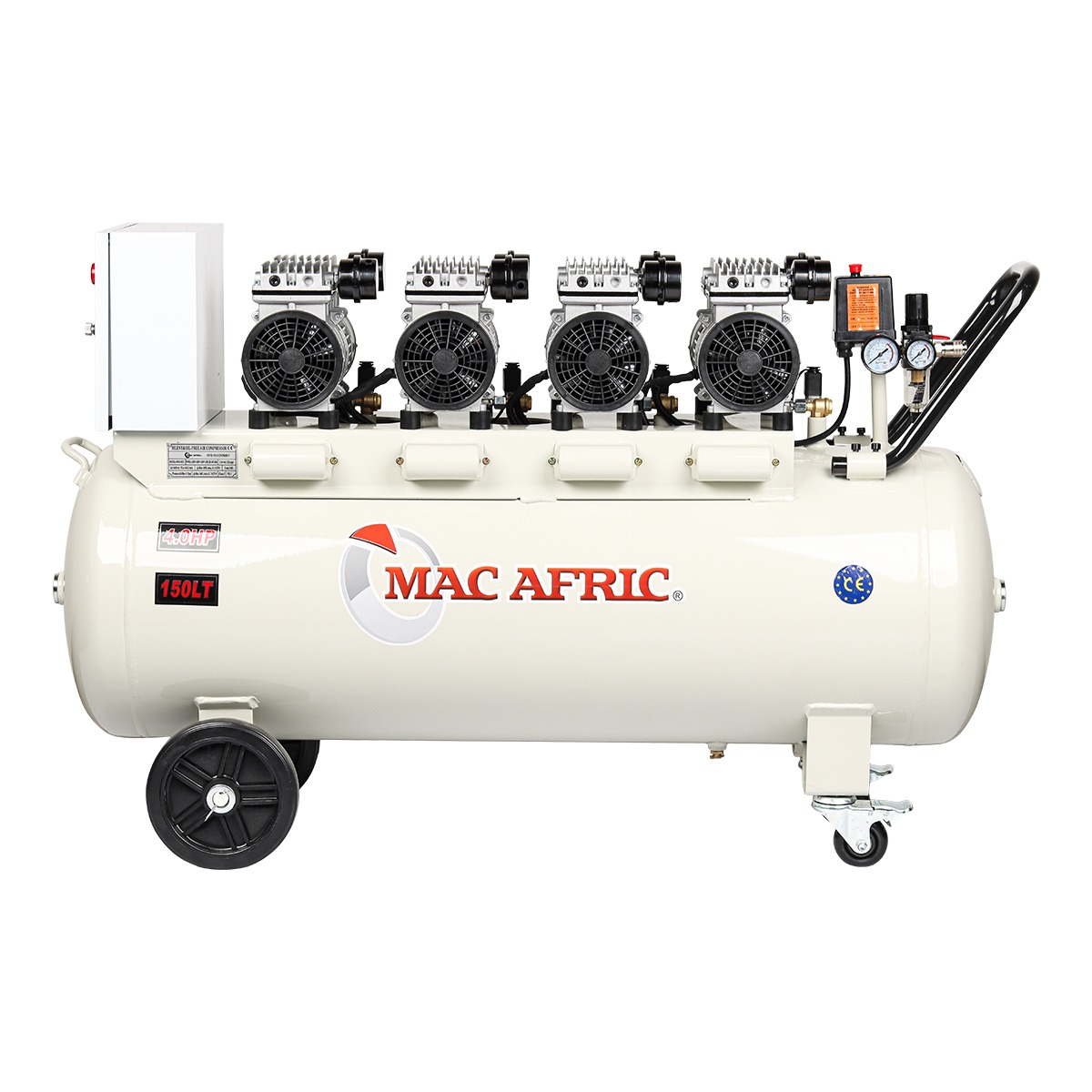

MAC AFRIC PRO 150L 2400W Oil Free Silent Compressor

Description

Shop the MAC AFRIC PRO 150L 2400W Oil Free Silent Compressor at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

MAC AFRIC PRO 150L 2400W Oil Free Silent Compressor: product details

The listed volume is 160 L (0.16 m³). The listed working pressure (pc) is 8 bar (800 kPa). The listed hydrostatic test pressure (ph) is 13.2 bar (1320 kPa).

Choosing the right item

Compare the air delivery, working pressure and tank capacity with the tools you plan to use. Also, check the power supply and operating limits. An oil-free pump design does not remove the need to follow the machine maintenance instructions and inspect its working components.

This item belongs to our oil-free compressors range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Volume: 160 L (0.16 m³)
• Working Pressure (Pc): 8 bar (800 kPa)
• Hydrostatic Test Pressure (Ph): 13.2 bar (1320 kPa)
• Design Pressure: 8.8 bar (880 kPa)
• Minimum Temperature (Tmin): -10 °C
• Maximum Temperature (Tmax): +100 °C
• Medium: Nonlethal Air
• Corrosion Allowance (C): 0.5 mm
• Wall Thickness (δa): 3.0 mm
• Power Configuration: 4 × 1.0 HP motors
• Supply Voltage: 240 V AC, 50 Hz
• Phase: Single Phase (PH:1)
• Current: 12 A
• Maximum Air Delivery: 444 L/min
• Air Delivery @ 4 bar: 400 L/min (14.12 CFM)
• Air Delivery @ 6 bar: 360 L/min (12.71 CFM)
• Maximum Pressure: 8.0 bar (≈116 psi)
• Tank Capacity: 150 L
• Insulation Class: Class F

Use and care

Follow the instructions for setup and operation. Review filter care, condensate drainage and the stated operating limits for the exact model. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 124.000000
• Package Length (cm): 129.0
• Package Width (cm): 44.0
• Package Height (cm): 77.0

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the MAC AFRIC PRO 150L 2400W Oil Free Silent Compressor from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code COMPRE015 available if you need to identify this item again.
