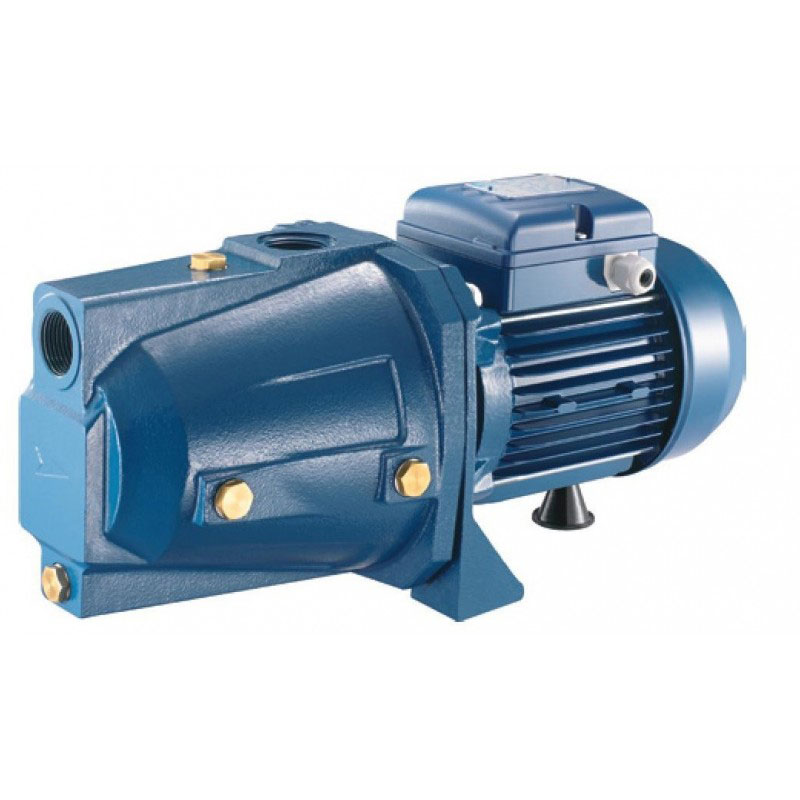

Pentax CAM100N (0.74kW 230V) Self Priming Pump

Description

Shop the Pentax CAM100N (0.74kW 230V) Self Priming Pump at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

Pentax CAM100N (0.74kW 230V) Self Priming Pump: product details

The listed pump body is cast iron. The listed motor bracket is aluminum. The listed impeller is noryl®.

Choosing the right item

Compare the stated product reference, capacity and connection details with the permitted fluid and equipment requirements. Check the included components and any operating requirements. Match the exact part or control specification to your system before ordering, since components with similar names can use different connections or serve different functions.

This item belongs to our general pumps and accessories range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Pump Body: cast iron
• Motor Bracket: aluminum
• Impeller: noryl®
• Mechanical Seal: ceramic-graphite-NBR
• Motor Shaft: stainless steel AISI 416
• Liquid Temperature: 0 – 50 °C
• Operating Pressure: max 7 bar
• Maximum Flow Rate: 70 l/m (4,2m³/h)
• Maximum Head: 50,9m
• Two Poles Induction Motor: 1~ 230V-50Hz (with thermal protection)
• Insulation Class: F
• Protection Degree: IPX4
• Amperage: 4,7 A
• Power Output: 0,74 KW (1 HP)
• Inlet Size: 1" G
• Outlet Size: 1" G
• Feature: Specification

Use and care

Follow the product and equipment instructions for setup, operation and inspection. Use only the permitted fluids and operating conditions for the exact item. Inspect connections and working components before operation, and disconnect the supply as directed before maintenance. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Length (cm): 19.80
• Package Width (cm): 43.80
• Package Height (cm): 21.40
• Package Weight (kg): 17.200000

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the Pentax CAM100N (0.74kW 230V) Self Priming Pump from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code HPUMPC003 available if you need to identify this item again.
