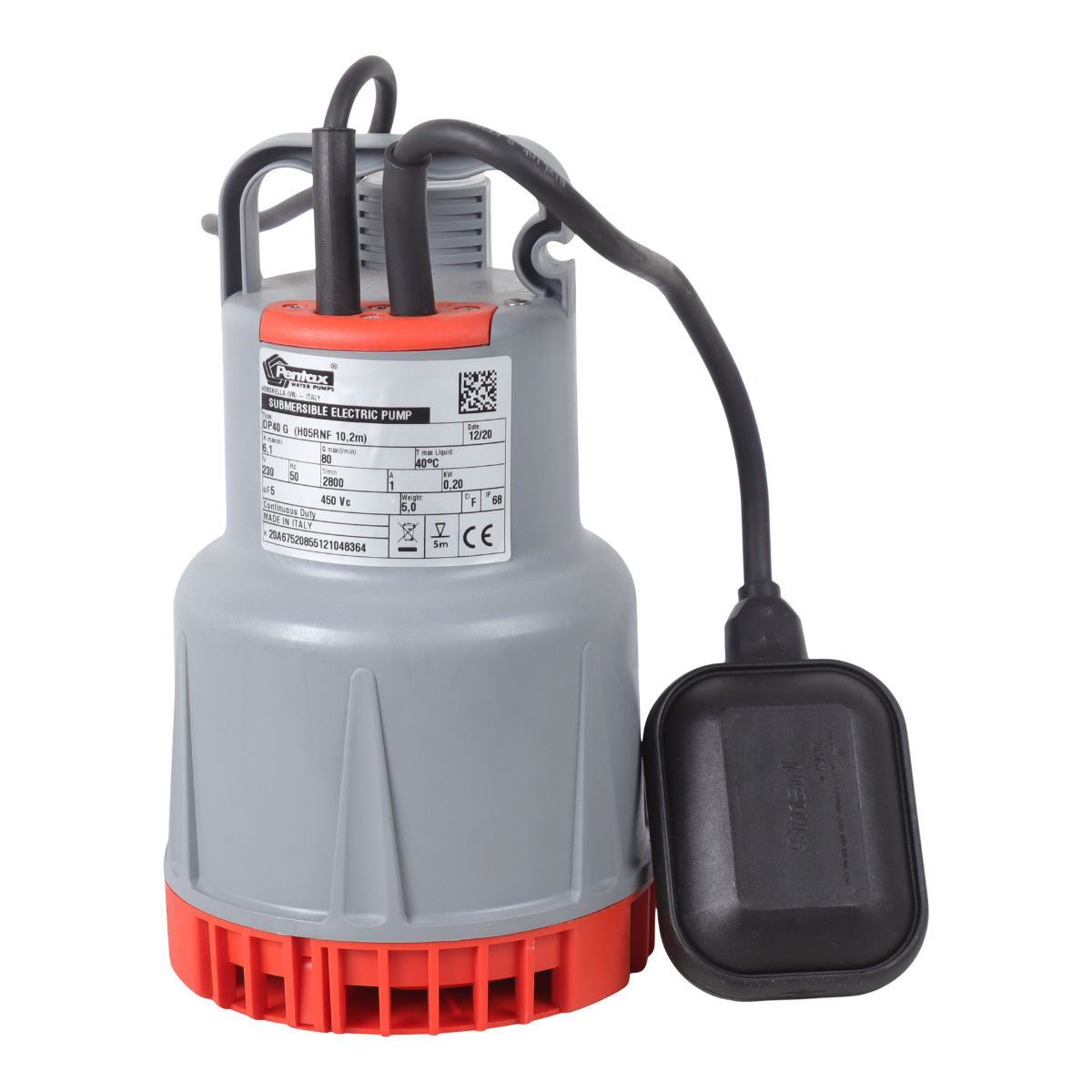

Pentax DP100G (1050W 230V) Submersible Drainage Pump (with Float Switch)

Description

Shop the Pentax DP100G (1050W 230V) Submersible Drainage Pump (with Float Switch) at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

Pentax DP100G (1050W 230V) Submersible Drainage Pump (with Float Switch): product details

The listed pump body is polypropylene. The listed impeller is noryl®. The listed mechanical seal is double lip seal on ceramic bush.

Choosing the right item

Compare the stated flow specification, operating head and immersion requirements with the water source and discharge arrangement. Check the included components and any operating requirements. Match the complete specification to your application before ordering. A maximum flow rate and a maximum head can describe different operating points, so use the exact model data when reviewing performance requirements.

This item belongs to our submersible water pumps range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Pump Body: polypropylene
• Impeller: noryl®
• Mechanical Seal: double lip seal on ceramic bush
• Motor Shaft: stainless steel AISI 416 with ceramic bush
• Free Passage: Ø max 7mm
• Max Submergence: 5m
• Liquid Temperature: 0 – 40 °C
• Cable: H07 RN8F, 10m
• G: float switch
• Maximum Flow Rate: 250 l/m (15m³/h)
• Maximum Head: 13,3m
• Water Quality: white water
• Two Poles Induction Motor: 1~ 230V-50Hz (with thermal protection)
• Insulation Class: F
• Protection Degree: IPX8
• Amperage: 5,1 A
• Power Output: 1050W
• Outlet Size: 1 1/4" G
• Feature: Specification
• Power Supply: 230 V @ 50 HZ
• Motor Output: 1 050 W
• Max. Pump Rate: 15 M3/H
• Load Speed: 0
• Cable Length: 0
• Max. Liquid Temperature: 0
• Model: DP100G

Use and care

Follow the product and equipment instructions for installation, operation and inspection. Use only the permitted fluids and operating conditions for the exact item. Inspect connections and working components before operation, and disconnect the supply as directed before maintenance. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Length (cm): 25.80
• Package Width (cm): 18.60
• Package Height (cm): 43.00
• Package Weight (kg): 9.920000

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the Pentax DP100G (1050W 230V) Submersible Drainage Pump (with Float Switch) from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code HPUMPS200 available if you need to identify this item again.
