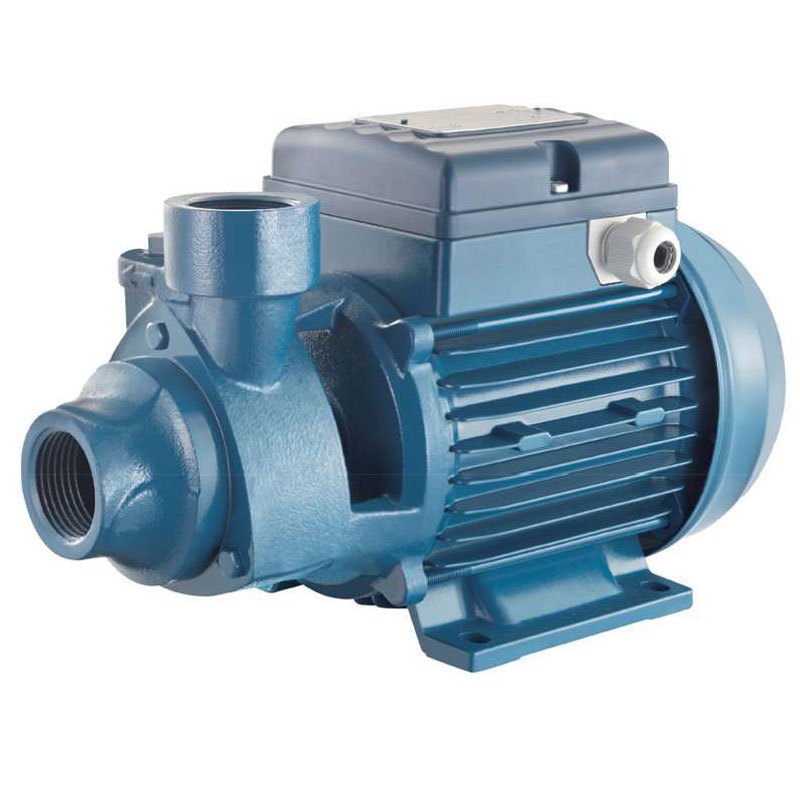

PENTAX PM80 0.74kW 230V Peripheral Pump

Description

Shop the PENTAX PM80 0.74kW 230V Peripheral Pump at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

PENTAX PM80 0.74kW 230V Peripheral Pump: product details

The listed pump body is Cast iron. The listed motor bracket is Cast iron. The listed impeller is Brass.

Choosing the right item

Compare the stated flow specification, operating head and supply requirements with the installation and water demand. Check the included components and any operating requirements. Match the complete specification to your application before ordering. A maximum flow rate and a maximum head can describe different operating points, so use the exact model data when reviewing performance requirements.

This item belongs to our pressure and booster pumps range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Pump Body: Cast iron
• Motor Bracket: Cast iron
• Impeller: Brass
• Mechanical Seal: Ceramic-graphite-NBR
• Motor Shaft: Stainless steel AISI 416
• Liquid Temperature: 0 – 90 °C
• Operating Pressure: Max 8 bar
• Maximum Flow Rate: 50 L/min (3 m³/h)
• Maximum Head: 65 m
• Motor Type: Two Poles Induction Motor 1~ 230V-50Hz (with thermal protection)
• Insulation Class: F
• Protection Degree: IPX4
• Amperage: 5.2 A
• Power Output: 0.74 kW (1 HP)
• Inlet Size: 1" G
• Outlet Size: 1" G
• Feature: Specification
• Two Poles Induction Motor: 1~ 230V-50Hz (with thermal protection)

Use and care

Follow the product and equipment instructions for installation, priming where specified and operation. Use only the permitted fluids and operating conditions for the exact item. Inspect connections and working components before operation, and disconnect the supply as directed before maintenance. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Length (cm): 30.60
• Package Width (cm): 17.00
• Package Height (cm): 19.00
• Package Weight (kg): 10.260000

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the PENTAX PM80 0.74kW 230V Peripheral Pump from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code HPUMPC004 available if you need to identify this item again.
