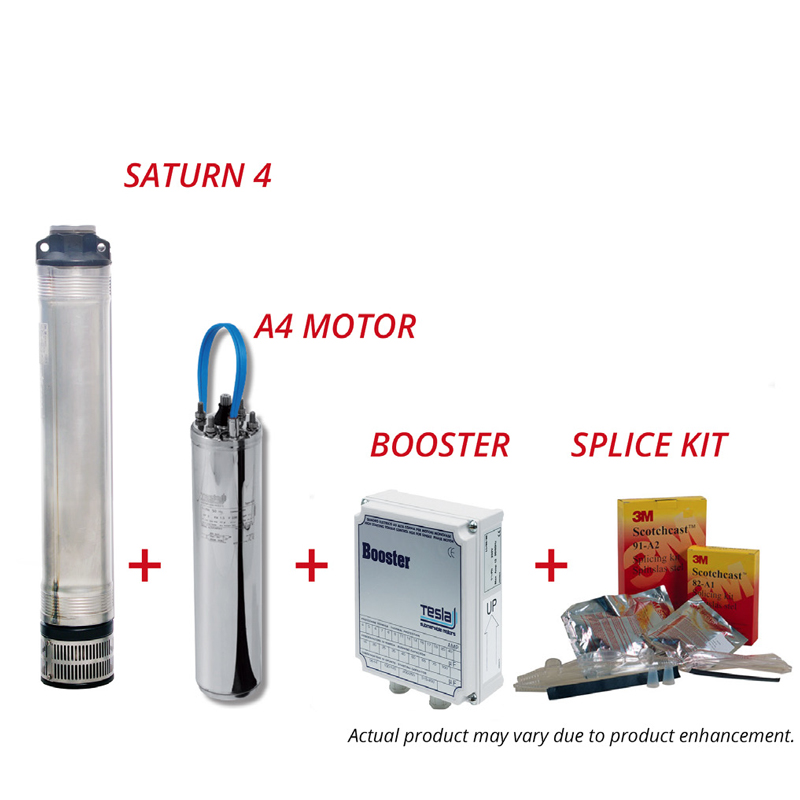

SATURN 4 EMP 21 (0,56kW) Borehole Pump Kit

Description

Shop the SATURN 4 EMP 21 (0,56kW) Borehole Pump Kit at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

SATURN 4 EMP 21 (0,56kW) Borehole Pump Kit: product details

The listed model is EMP21. The listed max working head is 88 m. The listed max flow is 2.2 m³/h (36 ℓ/min).

Choosing the right item

Compare the stated flow specification, operating head, power source and installation dimensions with the borehole and complete system requirements. Check the included components and any operating requirements. Match the complete specification to your application before ordering. A maximum flow rate and a maximum head can describe different operating points, so use the exact model data when reviewing performance requirements.

This item belongs to our borehole and solar pumps range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Model: EMP21
• Max Working Head: 88 m
• Max Flow: 2.2 m³/h (36 ℓ/min)
• Max Depth: 100 m
• Min Water Temperature: 0ºC
• Max Water Temperature: 35ºC
• Max Starts Per Hour: 20
• Outlet Size: 1¼"
• Water Quality: Clean Water
• Motor: 4OC (Oil Immersed)
• Motor Size: 0.55 kW (550 W)
• Horse Power: 0.75 Hp
• Amperage: 4.6 A
• Motor Voltage: Single Phase (220 V)
• Motor Speed: Two-pole (2850 RPM)
• Insulation Class: F
• IP Rating (Motor): 68
• Capacitor: 25 µF
• Control Panel Voltage: 220 V
• Control Panel KW: 0.55 kW
• Control Panel HP: 0.75 Hp
• Frequency: 50 Hz
• IP Rating (Control Panel): 54
• Control Panel Capacitor: 25 µF
• Motor Power: 560 W
• Max Head size: 95 M
• Specifications Description:

Use and care

Follow the product and equipment instructions for installation, connection and maintenance. Use only the permitted fluids and operating conditions for the exact item. Inspect connections and working components before operation, and disconnect the supply as directed before maintenance. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Length (cm): 100.00
• Package Width (cm): 32.00
• Package Height (cm): 15.00
• Package Weight (kg): 15.740000

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the SATURN 4 EMP 21 (0,56kW) Borehole Pump Kit from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code HPUMPB056 available if you need to identify this item again.
