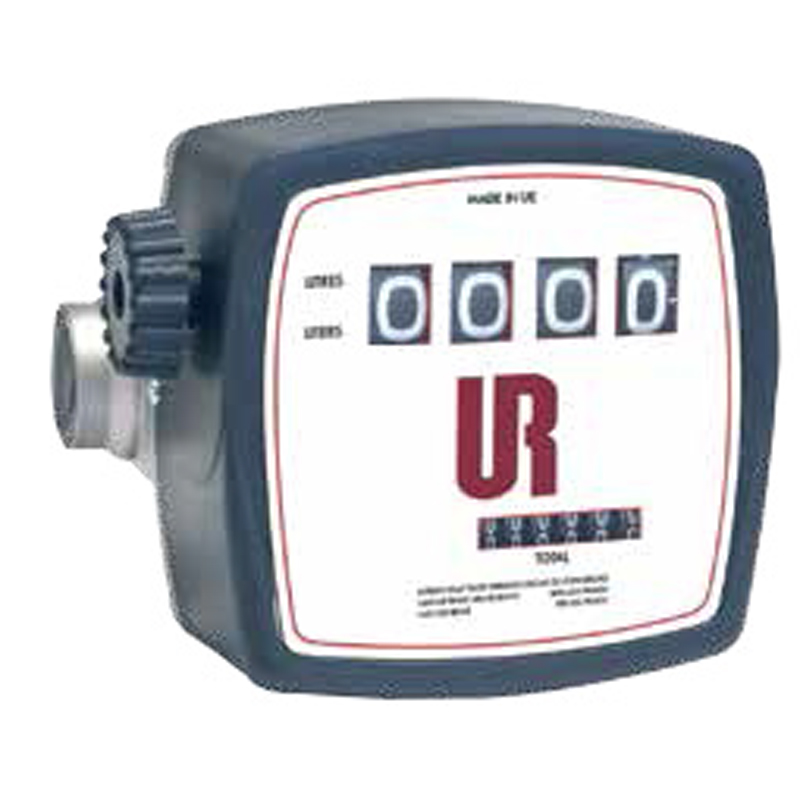

UR RENSON 4 Digit Mechanical Diesel Flowmeter

Description

Shop the UR RENSON 4 Digit Mechanical Diesel Flowmeter at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

UR RENSON 4 Digit Mechanical Diesel Flowmeter: product details

The listed meter mechanism is Nutating Disk. The listed flow rate is 120 L/MIN. The listed max. operating pressure is 3.5 BAR (50 PSI).

Choosing the right item

Compare the stated flow specification, operating method and connection details with the exact fluid and installation requirements. Check the included components and any operating requirements. Match the complete specification to your application before ordering. A maximum flow rate and a maximum head can describe different operating points, so use the exact model data when reviewing performance requirements.

This item belongs to our fuel oil and drum pumps range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Meter Mechanism: Nutating Disk
• Flow Rate: 120 L/MIN
• Max. Operating Pressure: 3.5 BAR (50 PSI)
• Min. Burst Pressure: 28 BAR (406 PSI)
• Max. Storage Humidity: 95% RU
• Operating Temp. Range: -10° to 60° C
• Pressure Loss with Diesel Oil: 0.05, 0.2, 0.4 BAR
• Accuracy: ±0.001
• Repeatability: ±0.003
• Batch Total Readout: 4 Digits (18 MM Height)
• Totaliser Readout: 8 Digits (6 MM Height)
• Inlet/Outlet Size: 1" IN BSP
• Burst Pressure: 28 BAR (406 PSI)
• Operating Pressure: 3.5 BAR (50 PSI)
• Specifications Description: MAX. 3 bars FLOW RATE 20 – 120 L/M PRESSURE 3.5 BAR ACCURACY +/- 1% MODEL NO. UR400 6 Digits not re-settable totalizator 3 or 4 digits re-settable daily display
• MAX.: 3 bars
• FLOW RATE: 20 – 120 L/M
• PRESSURE: 3.5 BAR
• ACCURACY: +/- 1%
• MODEL NO.: UR400
• :
• 6 Digits not re-settable totalizator: 3 or 4 digits re-settable daily display

Use and care

Follow the product and equipment instructions for connection, operation and care. Use only the permitted fluids and operating conditions for the exact item. Inspect connections and working components before operation, and disconnect the supply as directed before maintenance. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Length (cm): 19.00
• Package Width (cm): 15.80
• Package Height (cm): 14.00
• Package Weight (kg): 1.860000

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the UR RENSON 4 Digit Mechanical Diesel Flowmeter from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code HPUMPD004 available if you need to identify this item again.
