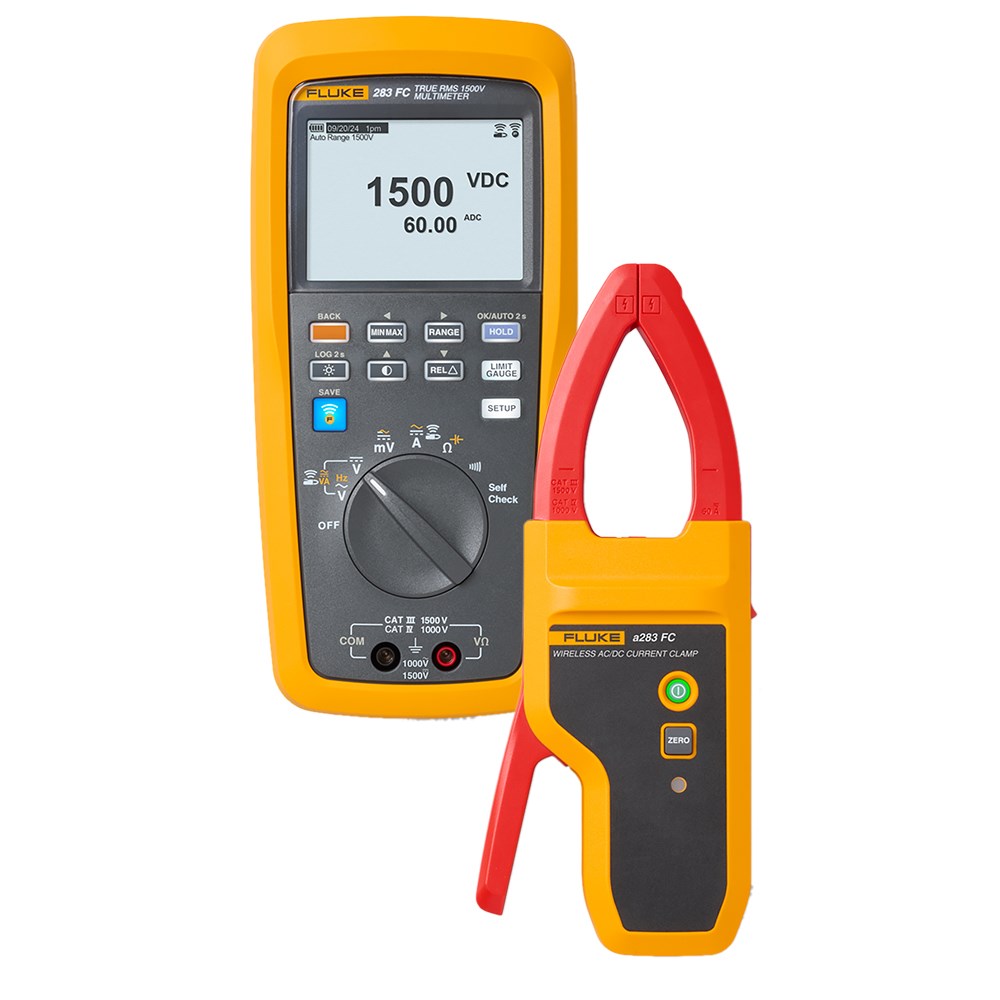

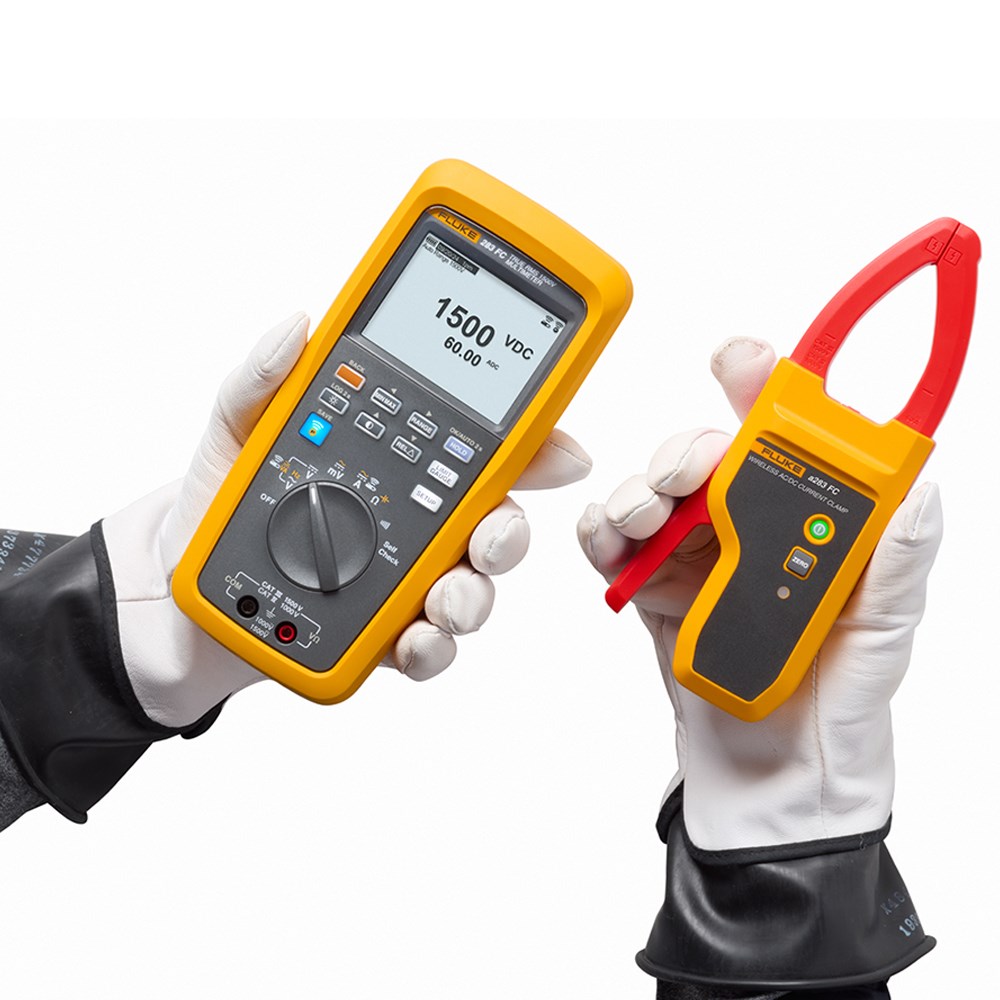

Fluke 283FC/PV/EUR CAT III 1500V Solar Kit, A283FC Clamp, MC4

Description

Shop the Fluke 283FC/PV/EUR CAT III 1500V Solar Kit, A283FC Clamp, MC4 at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

Fluke 283FC/PV/EUR CAT III 1500V Solar Kit, A283FC Clamp, MC4: product details

The listed min / max / avg is DC functions: specified accuracy ± 12 counts for changes longer than 350 ms. AC functions: specified accuracy ± 40 counts for changes longer than 900 ms.. The listed operating temperature is -10 °C to 60 °C. The listed storage temperature is -30 °C to +70 °C.

Choosing the right item

Compare the stated opening capacity, working dimensions and mounting arrangement with the workpiece and support requirements. Check the included components and any operating requirements. Match the exact product specification to your task before ordering, since items with similar names can serve different purposes or use different connections.

This item belongs to our clamps and workholding range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Min / Max / Avg: DC functions: specified accuracy ± 12 counts for changes longer than 350 ms. AC functions: specified accuracy ± 40 counts for changes longer than 900 ms.
• Operating Temperature: -10 °C to 60 °C
• Storage Temperature: -30 °C to +70 °C
• Humidity (non-condensing): 0–90 % (10 °C to 30 °C) 0–75 % (30 °C to 40 °C) 0–45 % (40 °C to 60 °C)
• EMC: IEC 61326-1, IEC 61326-2-2, Portable, Group 1, Class A
• Overvoltage Category: CAT III 1500 V, CAT IV 1000 V
• Agency Approvals: ETL (AMER & EMEA), CSA (APAC), CE, UK CA
• Drop Test: 2 m (6.5 ft)
• Ingress Protection: IP52
• Warranty: Limited Lifetime
• Counts: 6000
• Size: 22.5 cm x 10.5 cm x 5.7 cm (8.8 in x 4.1 in x 2.2 in)
• Weight: 0.7 kg (1.5 lb)
• Battery Life: > 150 hours typical (3 x AA alkaline, without backlight) > 100 hours typical when connected to wireless current clamp
• Click here to read: How to Use a Multimeter
• You can read our step-by-step guide here: How to Use a Multimeter.

Use and care

Follow the product and equipment instructions for mounting, adjustment and inspection. Inspect the working components before use and apply the method specified for the exact item. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 0.700000
• Package Length (cm): 22.5
• Package Width (cm): 10.5
• Package Height (cm): 5.7

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the Fluke 283FC/PV/EUR CAT III 1500V Solar Kit, A283FC Clamp, MC4 from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code TTESDM283 available if you need to identify this item again.
