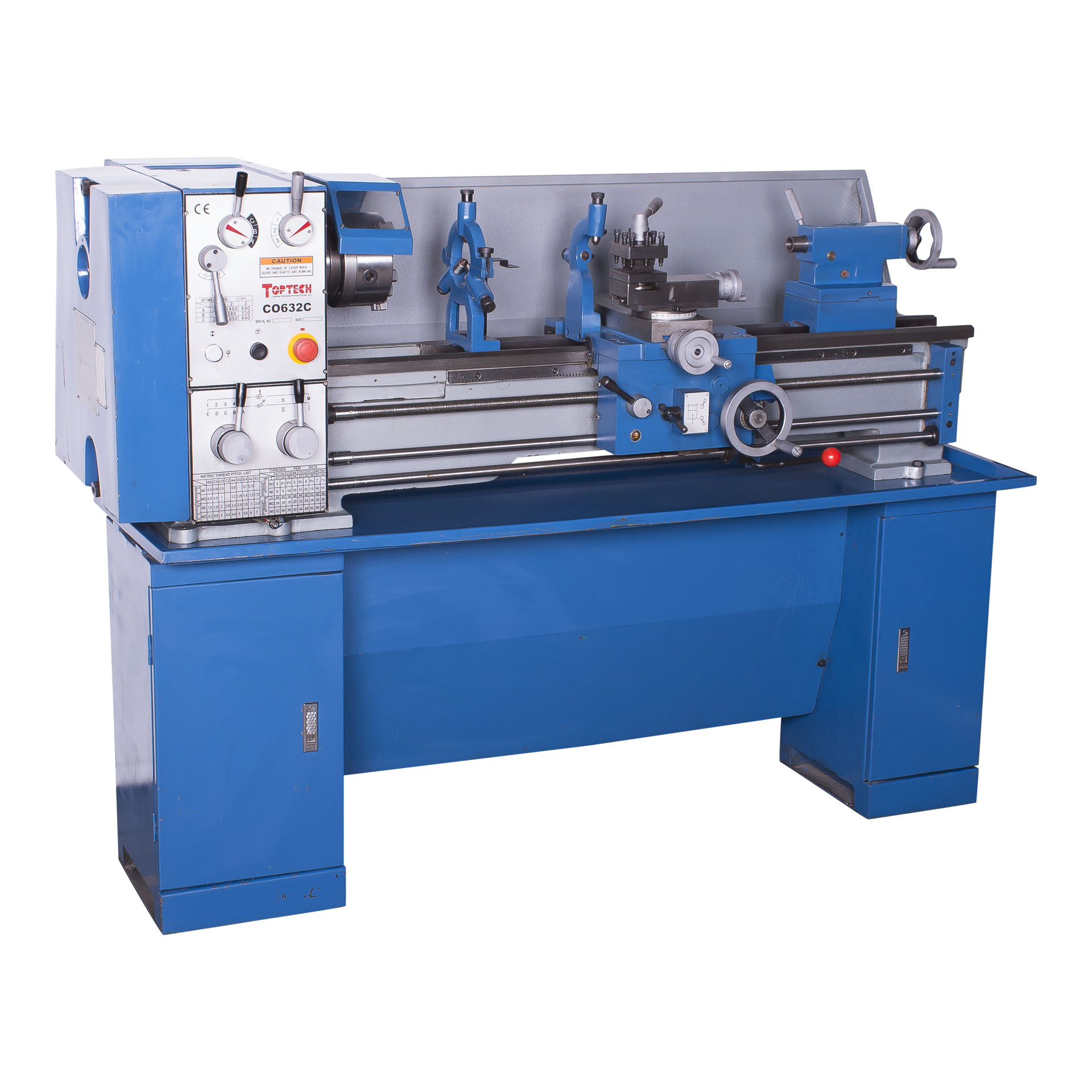

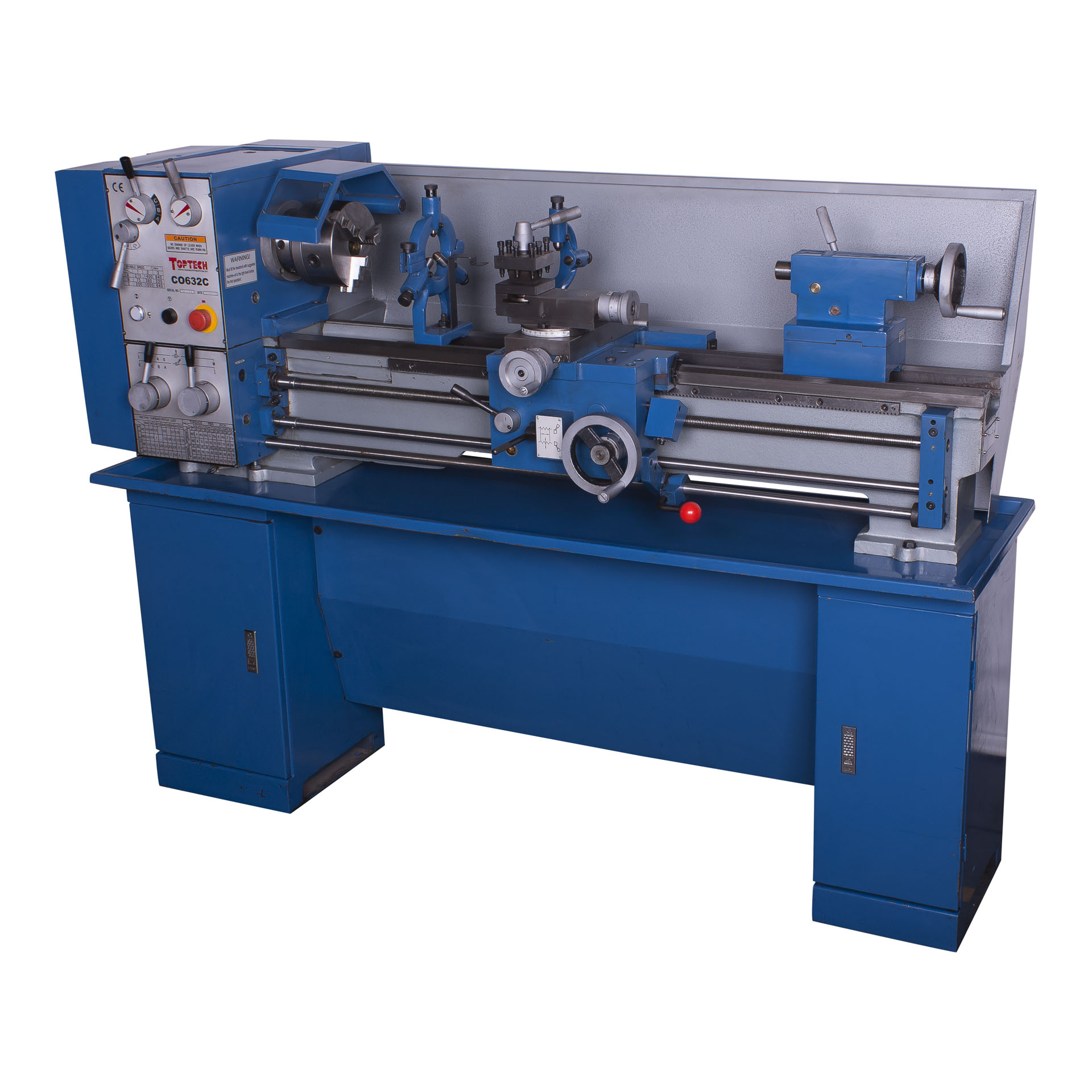

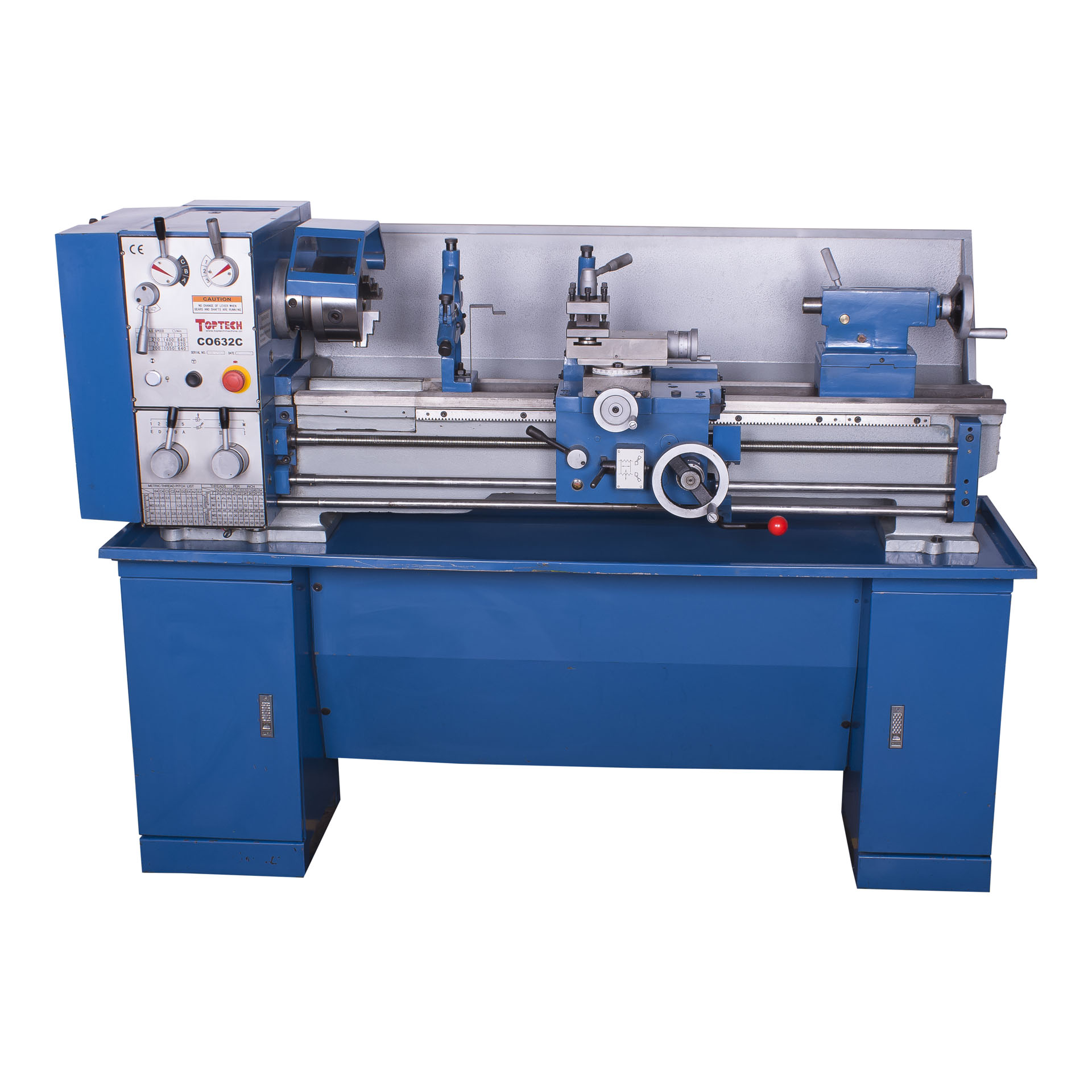

MAC AFRIC 1 M Geared Head Lathe with Stand

Description

Shop the MAC AFRIC 1 M Geared Head Lathe with Stand at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

MAC AFRIC 1 M Geared Head Lathe with Stand: product details

The listed power output is 1.5 KW (2 HP). The listed voltage is 230V. The listed frequency is 50 – 60 Hz.

Choosing the right item

Compare the stated working capacity, spindle configuration and power supply with your machining requirements. Check the included tooling, mounting arrangement and operating features. Match the exact machine specification to your workpiece and workshop before selecting additional accessories.

This item belongs to our lathe machines range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Power Output: 1.5 KW (2 HP)
• Voltage: 230V
• Frequency: 50 – 60 Hz
• Max. Swing Over Bed: 320 mm (13" in)
• Max. Swing Over Cross Slide: 178 mm (7" in)
• Max. Swing Over Gap: 450 mm (18" in)
• Distance Between Centres: 1 000 mm (39" in)
• Width Of Bed: 181 mm
• Spindle Bore: 38 mm (1 1/2" in)
• Taper of Spindle Bore: MT 5
• Range of Spindle Speeds: 75 – 1 400 RPM (9 Steps), 65 – 1 810 RPM (18 Steps)
• Diameter of Tailstock Quill: 32 mm (1 1/4" in)
• Max. Travel of Tailstock Quill: 100 mm (4" in)
• Taper of Tailstock: MT 3
• Metric Threads Can be Cut: 32 Kinds: 0.4 – 7 mm
• Imperial Threads Can be Cut: 32 Kinds: 4 – 60 TPI
• Range of Longitudinal Feeds: 0.0527 – 1.2912 mm/rev (0.0021 – 0.0508 inch/rev)
• Range of Cross Feeds: 0.011 – 0.276 mm/rev (0.0006 – 0.0136 inch/rev)
• Gross Weight: 550 kg
• Max. Rotatory Angle of Tool Post: 90°
• Tool Slide Travel: 76 mm (3" in)
• Range Of Cross Feeds: 0.011 – 0.276 MM/REV (0.0006 – 0.0136 INCH/REV)

Use and care

Follow the machine instructions for installation, setup and operation. Secure tooling and workpieces as directed and disconnect the supply before maintenance. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Length (cm): 186.00
• Package Width (cm): 76.00
• Package Height (cm): 73.00
• Package Weight (kg): 570.000000

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the MAC AFRIC 1 M Geared Head Lathe with Stand from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code ELATHE100 available if you need to identify this item again.
