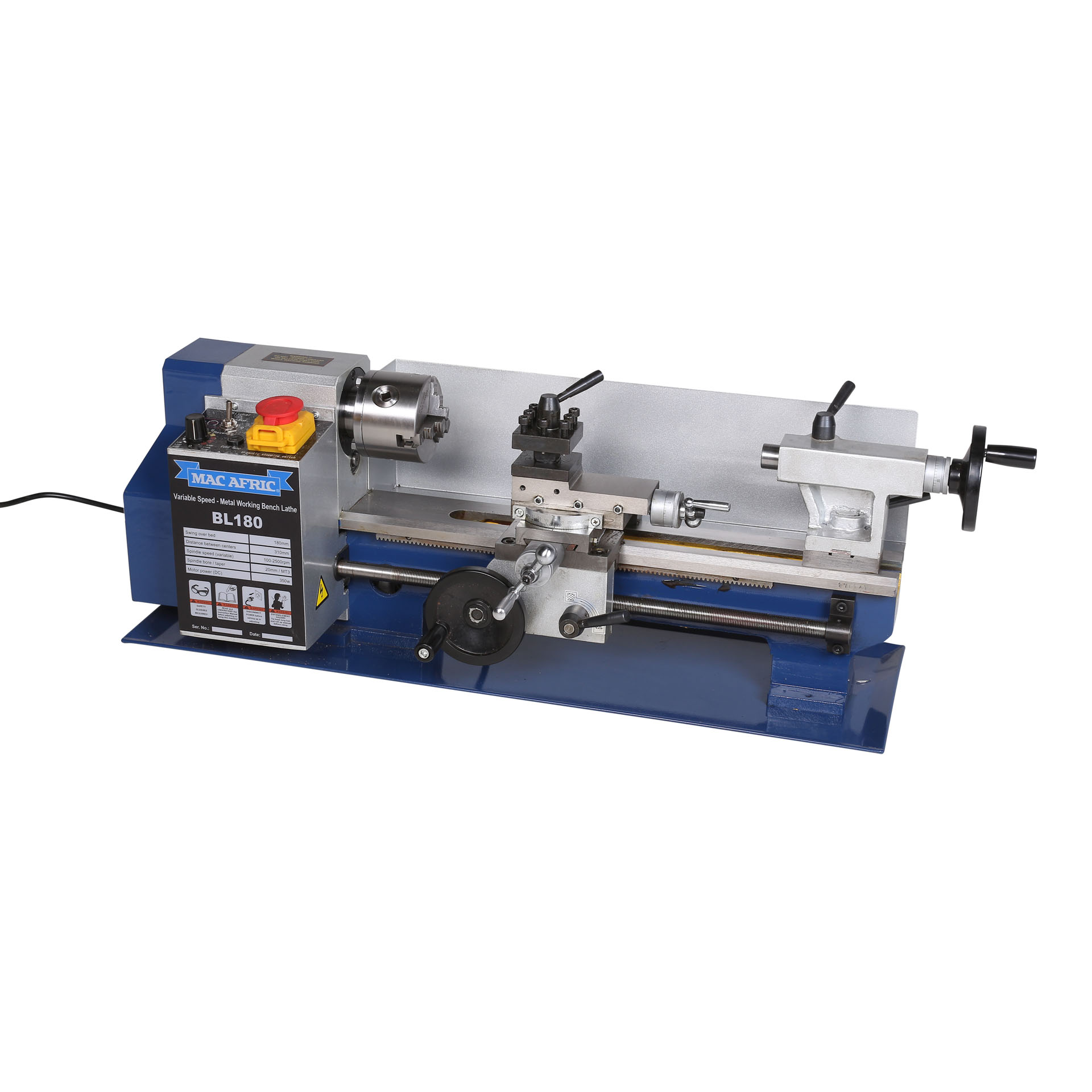

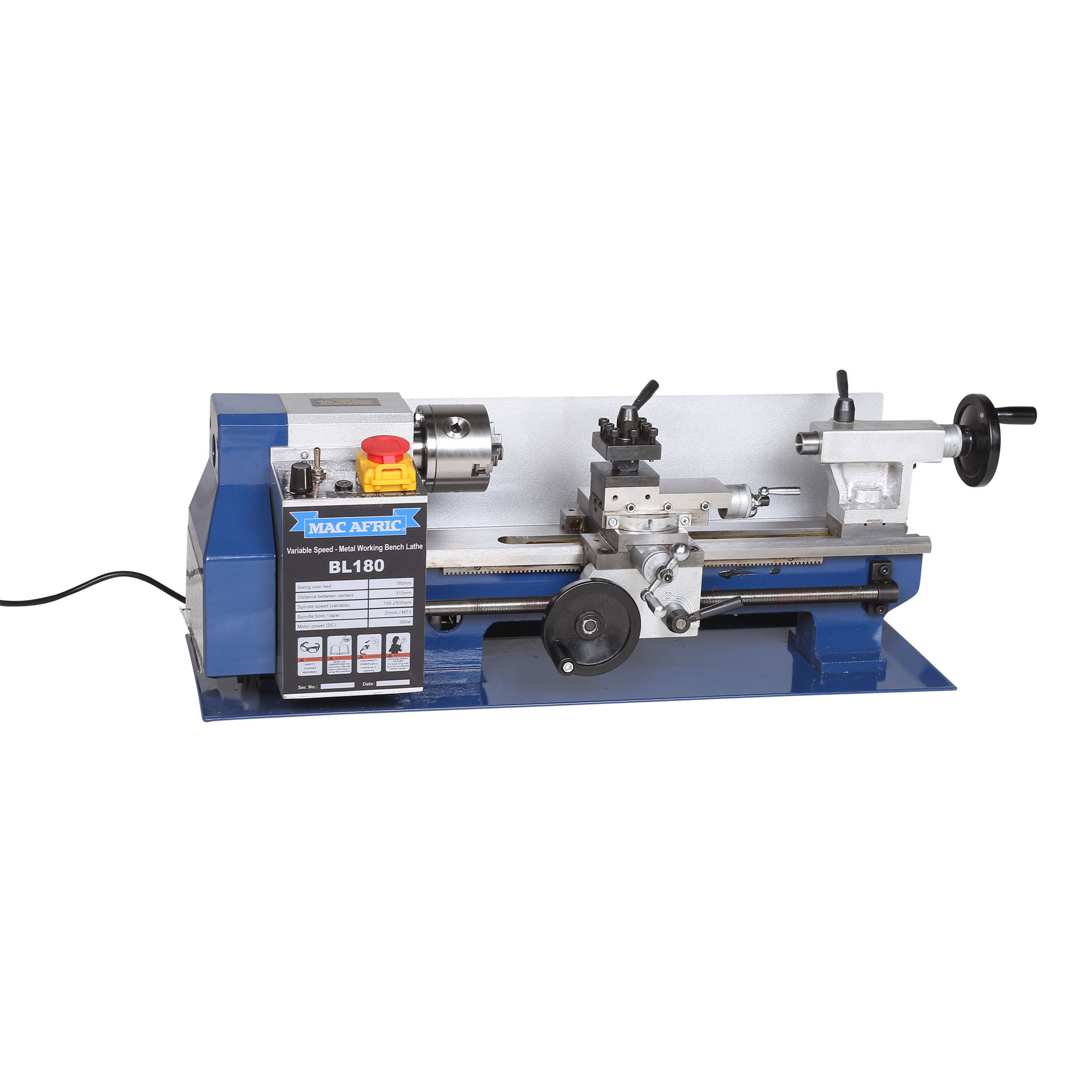

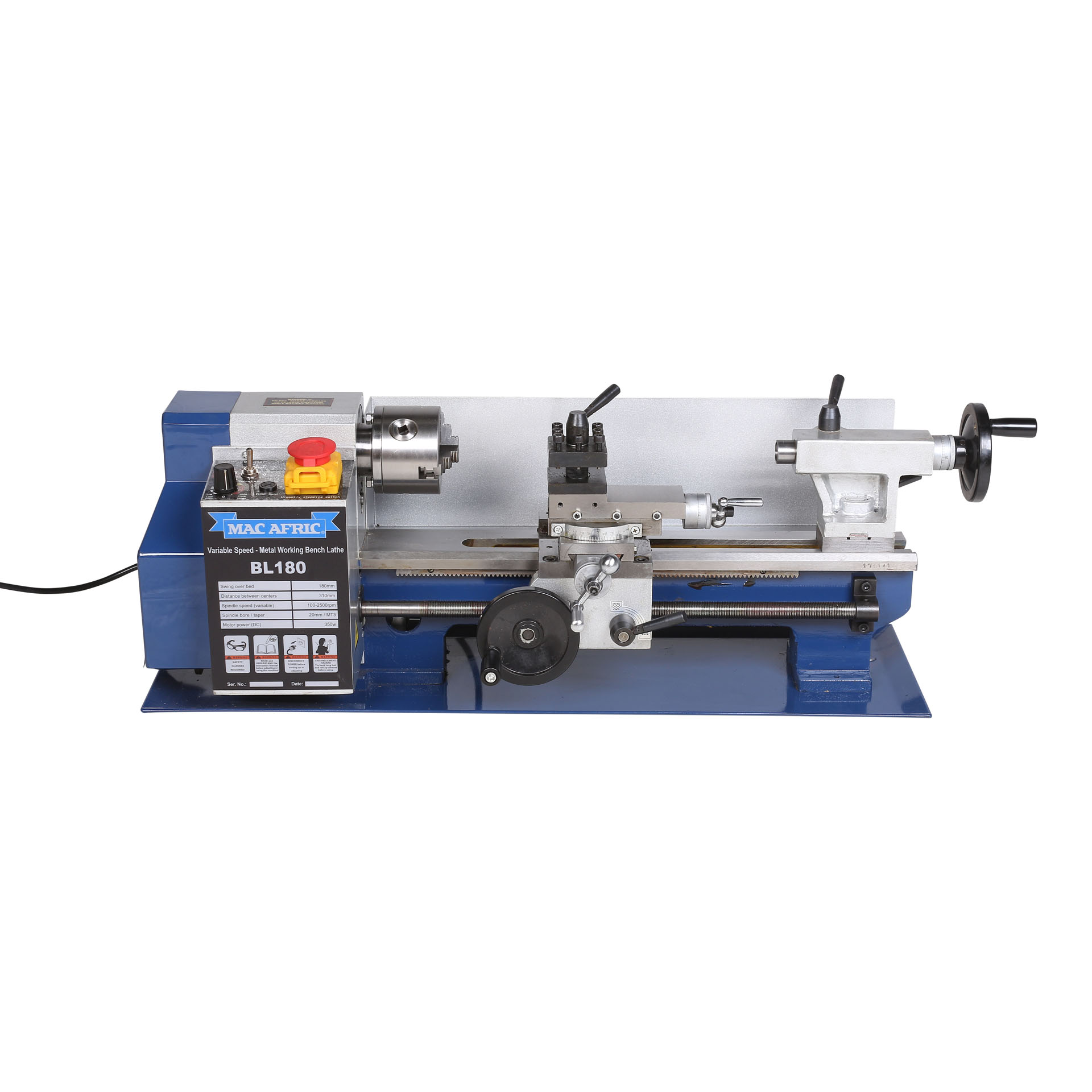

MAC AFRIC BL180 Mini Metal Working Bench Lathe

Description

Shop the MAC AFRIC BL180 Mini Metal Working Bench Lathe at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

MAC AFRIC BL180 Mini Metal Working Bench Lathe: product details

The listed power output is 0.4 KW (1/2 HP). The listed voltage is 230 V (Single Phase). The listed frequency is 50/60 HZ.

Choosing the right item

Compare the stated working capacity, spindle configuration and power supply with your machining requirements. Check the included tooling, mounting arrangement and operating features. Match the exact machine specification to your workpiece and workshop before selecting additional accessories.

This item belongs to our lathe machines range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Power Output: 0.4 KW (1/2 HP)
• Voltage: 230 V (Single Phase)
• Frequency: 50/60 HZ
• Motor Speed: 4 500 RPM
• Power Transfer: V – Belt
• Bearings: Shielded and Lubricated
• Max. Swing Over Bed: 180 MM
• Max. Swing Over Cross Slide: 105 MM
• Max. Swing Over Gap: NA
• Distance Between Centres: 310 MM
• Width Of Bed: 180 MM
• Spindle Bore: 20 MM
• Taper of Spindle Bore: MT 3
• Range of Spindle Speeds: 200 – 1 150 RPM (Low), 460 – 2 500 RPM (High)
• Diameter of Tailstock Quill: NA
• Max. Travel of Tailstock Quill: 40 MM
• Taper of Tail – Stock: MT 2
• Metric Threads Can be Cut: 0.4 – 2 MM (10 Sizes)
• Imperial Threads Can be Cut: 12 – 48 TPI (10 Sizes)

Use and care

Follow the machine instructions for installation, setup and operation. Secure tooling and workpieces as directed and disconnect the supply before maintenance. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 37.000000
• Package Length (cm): 75.50
• Package Width (cm): 31.00
• Package Height (cm): 33.50

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the MAC AFRIC BL180 Mini Metal Working Bench Lathe from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code ELATHE181 available if you need to identify this item again.
