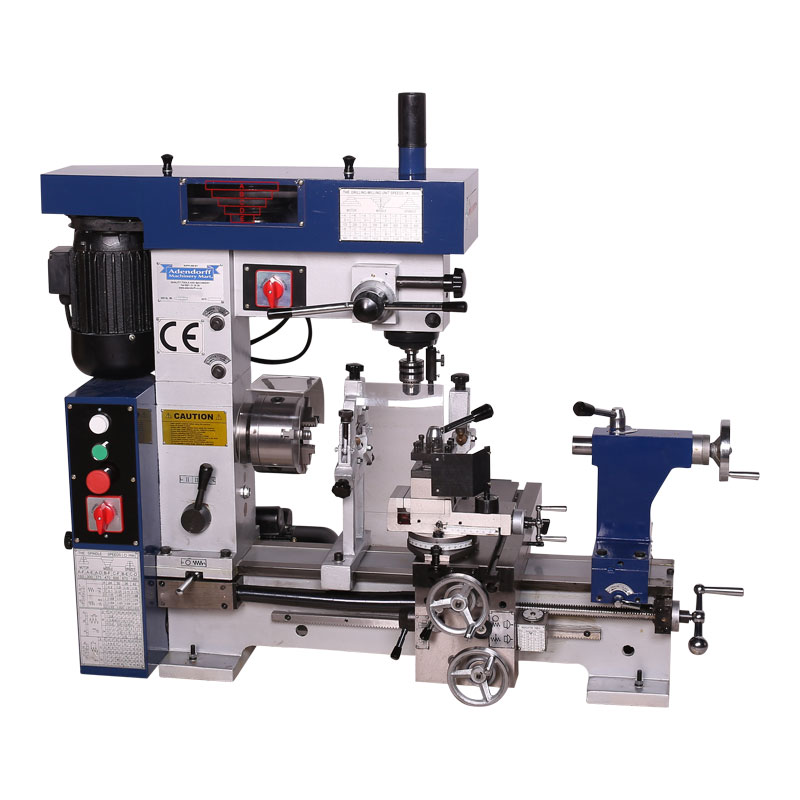

MAC AFRIC HQ800 Lathe, Drilling & Milling Machine

Description

Shop the MAC AFRIC HQ800 Lathe, Drilling & Milling Machine at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

MAC AFRIC HQ800 Lathe, Drilling & Milling Machine: product details

The listed power input is 230 V @ 50 HZ. The listed motor output is 550 W. The listed swing over bed is 420 MM.

Choosing the right item

Compare the stated working capacity, spindle configuration and power supply with your machining requirements. Check the included tooling, mounting arrangement and operating features. Match the exact machine specification to your workpiece and workshop before selecting additional accessories.

This item belongs to our lathe machines range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Power Input: 230 V @ 50 HZ
• Motor Output: 550 W
• Swing Over Bed: 420 MM
• Distance Between Centres: 800 MM
• Longitude Travel: 740 MM
• Cross Travel: 200 MM
• Spindle Bore: 28 MM
• Spindle Taper: MT4
• Tail Stock Barrel Taper: MT3
• Max. Drilling Capacity: 22 MM
• Max. End Milling Cutter: 80 MM
• Max. Face Milling Capacity: 28 MM
• Range of Spindle Speed: 16 Steps / 160 – 1300 RPM
• Threads That Can be Cut: 0.2 – 6 MM / 4 – 120 TPI
• Amount of Power Feed: 0.05 – 0.35 MM (0.002" – 0.014" IN)
• Drilling Diameter: 15 MM
• Spindle Travel: 110 MM
• Table Size: 475 x 160 MM
• Power Output: 550 W
• Voltage: 230 V @ 50 HZ
• Max. Swing Over Bed: 440 MM
• Range of Spindle Speeds: 16 Steps / 160 – 1300 RPM

Use and care

Follow the machine instructions for installation, setup and operation. Secure tooling and workpieces as directed and disconnect the supply before maintenance. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Length (cm): 142.00
• Package Width (cm): 57.50
• Package Height (cm): 103.00
• Package Weight (kg): 275.000000

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the MAC AFRIC HQ800 Lathe, Drilling & Milling Machine from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code EMILHQ800 available if you need to identify this item again.
