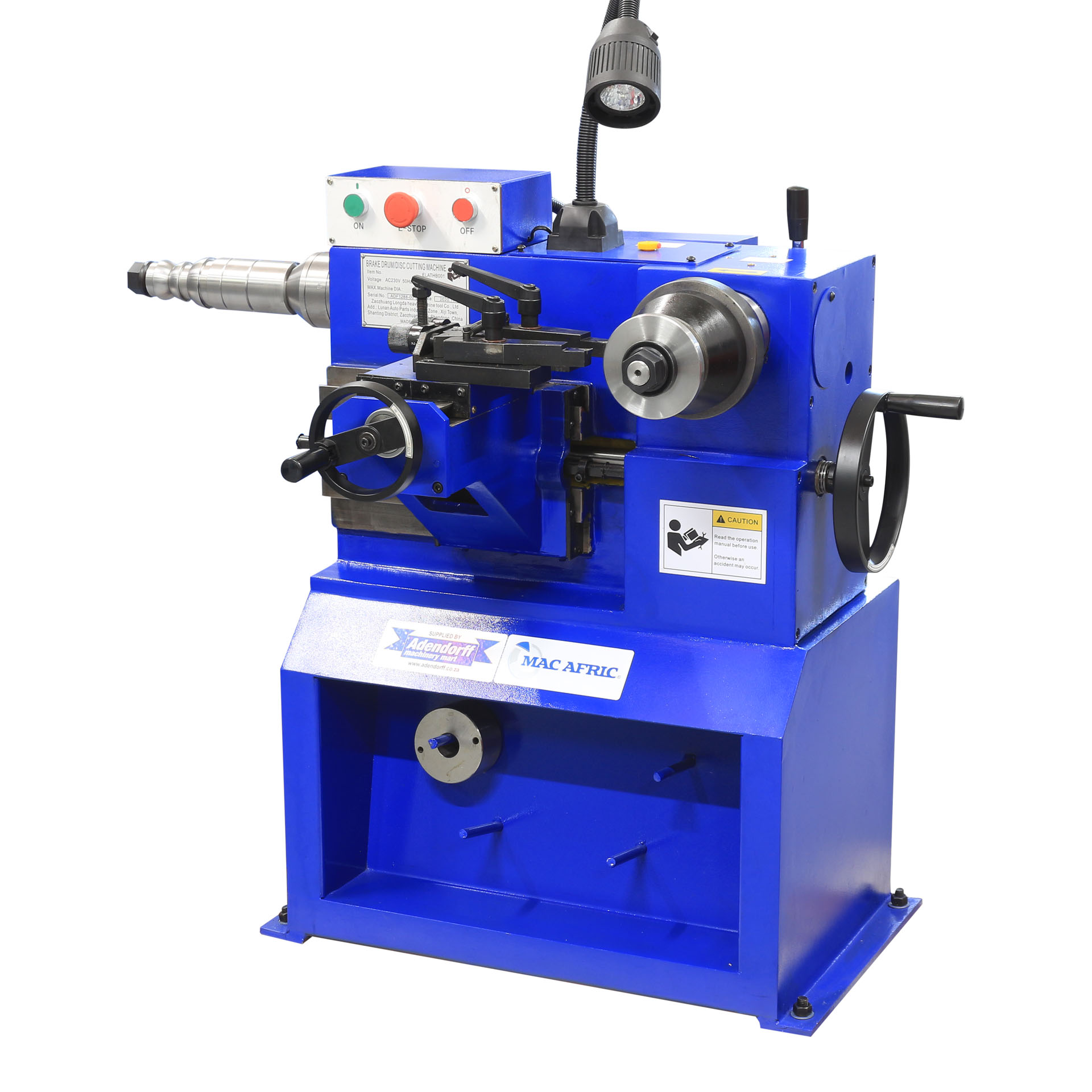

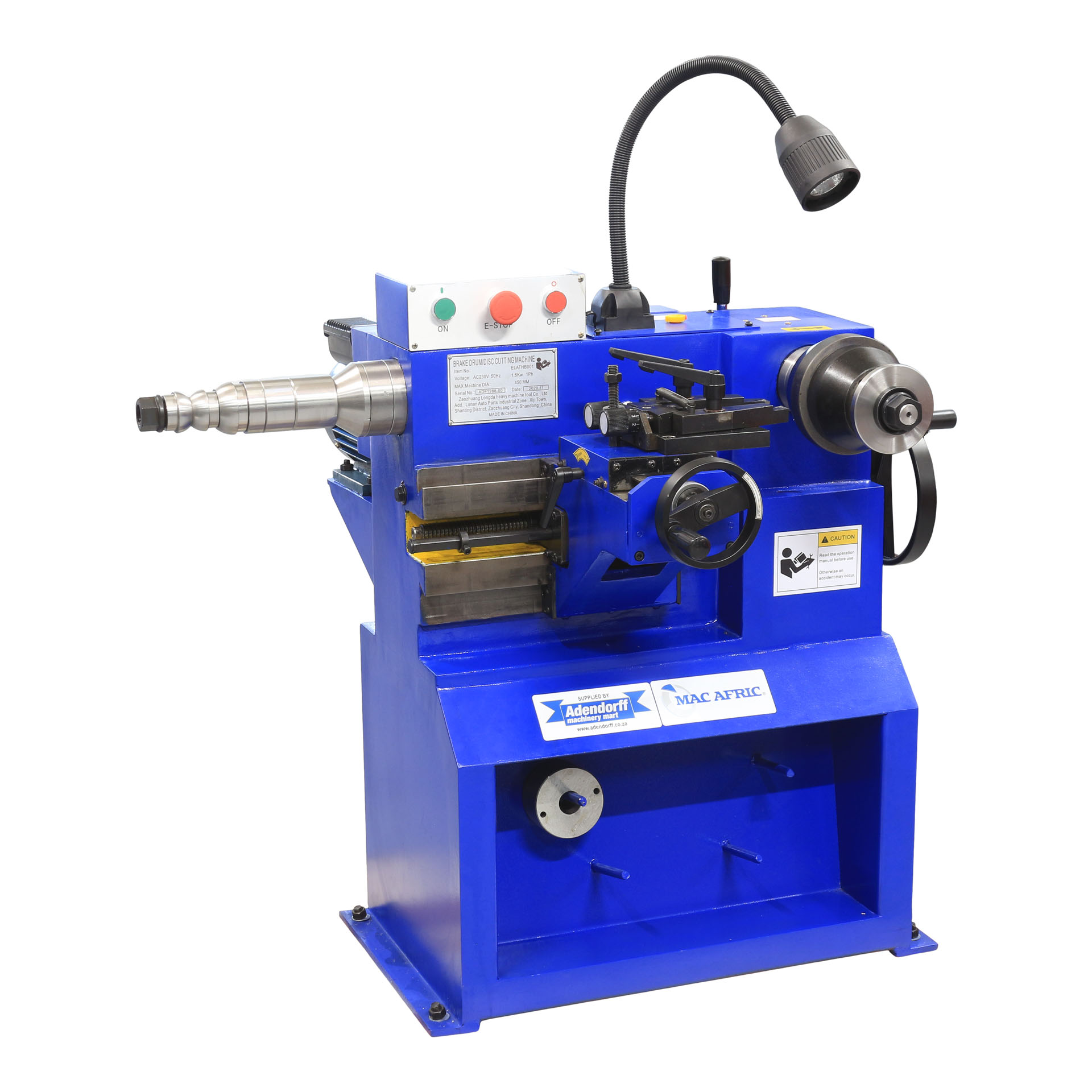

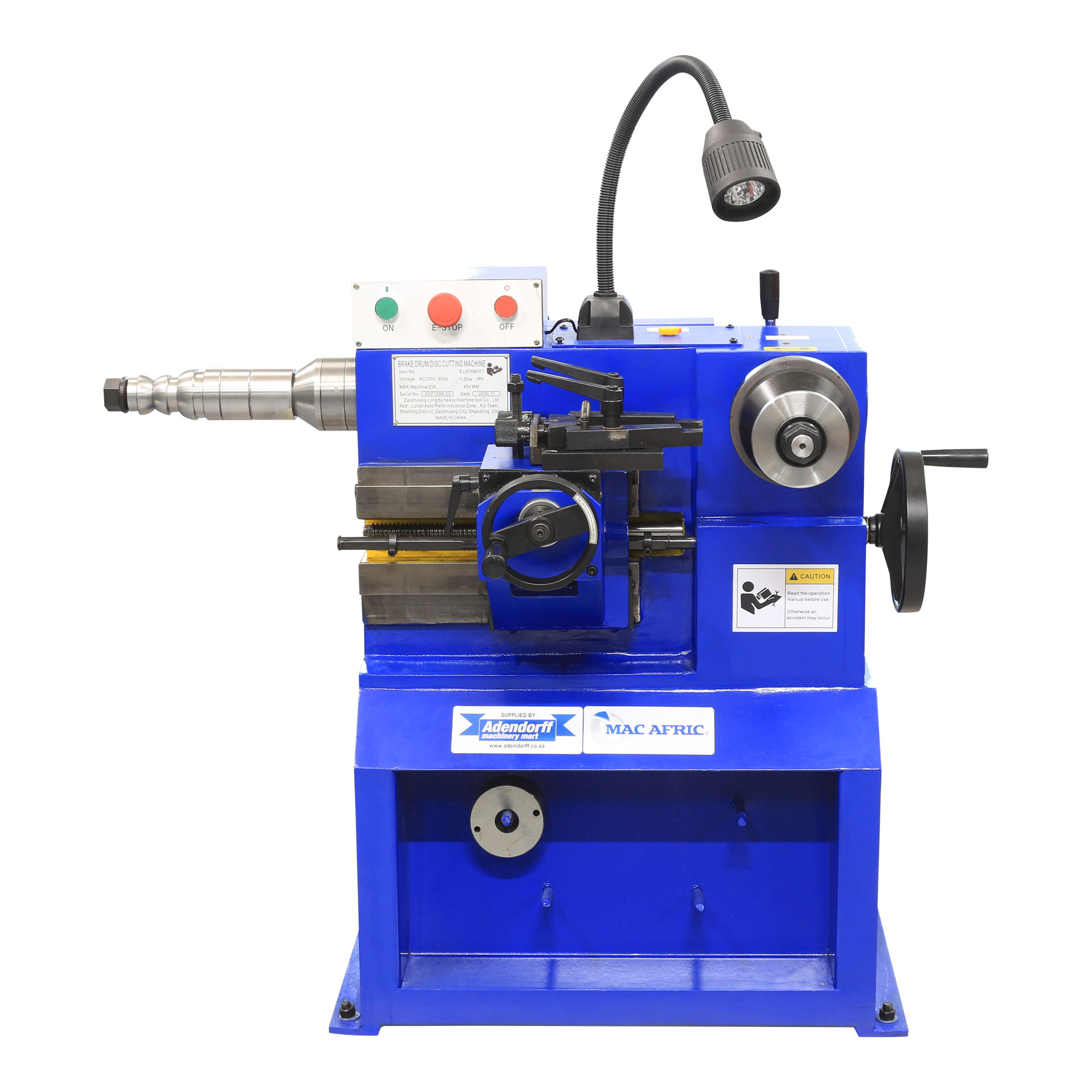

MAC AFRIC Brake Disc Lathe (230 V) (Brake Disc Skimming Machine)

Description

Shop the MAC AFRIC Brake Disc Lathe (230 V) (Brake Disc Skimming Machine) at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

MAC AFRIC Brake Disc Lathe (230 V) (Brake Disc Skimming Machine): product details

The listed brake disc diameter is 180 – 400 MM (7" IN – 15.75" IN). The listed max. brake disc thickness is 40 MM (1.57" IN). The listed outer diameter of brake drum is 180 – 450 MM (7" IN – 17.7" IN with Hub).

Choosing the right item

Compare the stated working capacity, spindle configuration and power supply with your machining requirements. Check the included tooling, mounting arrangement and operating features. Match the exact machine specification to your workpiece and workshop before selecting additional accessories.

This item belongs to our lathe machines range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Brake Disc Diameter: 180 – 400 MM (7" IN – 15.75" IN)
• Max. Brake Disc Thickness: 40 MM (1.57" IN)
• Outer Diameter of Brake Drum: 180 – 450 MM (7" IN – 17.7" IN with Hub)
• Working Stroke: 170 MM (6/7" IN)
• Spindle Speed: 30 / 52 / 86 RPM
• Feeding Rate: 0.16 / 0.3 MM/REV
• Motor: 1.1 KW (1.5 HP)
• Gross Weight: 320 KG
• Voltage: 230 V @ 50 HZ
• Motor Output: 1.1 KW (1.5 HP)

Use and care

Follow the machine instructions for installation, setup and operation. Secure tooling and workpieces as directed and disconnect the supply before maintenance. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Length (cm): 87.00
• Package Width (cm): 89.00
• Package Height (cm): 108.00
• Package Weight (kg): 310.000000

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the MAC AFRIC Brake Disc Lathe (230 V) (Brake Disc Skimming Machine) from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code ELATHB001 available if you need to identify this item again.
