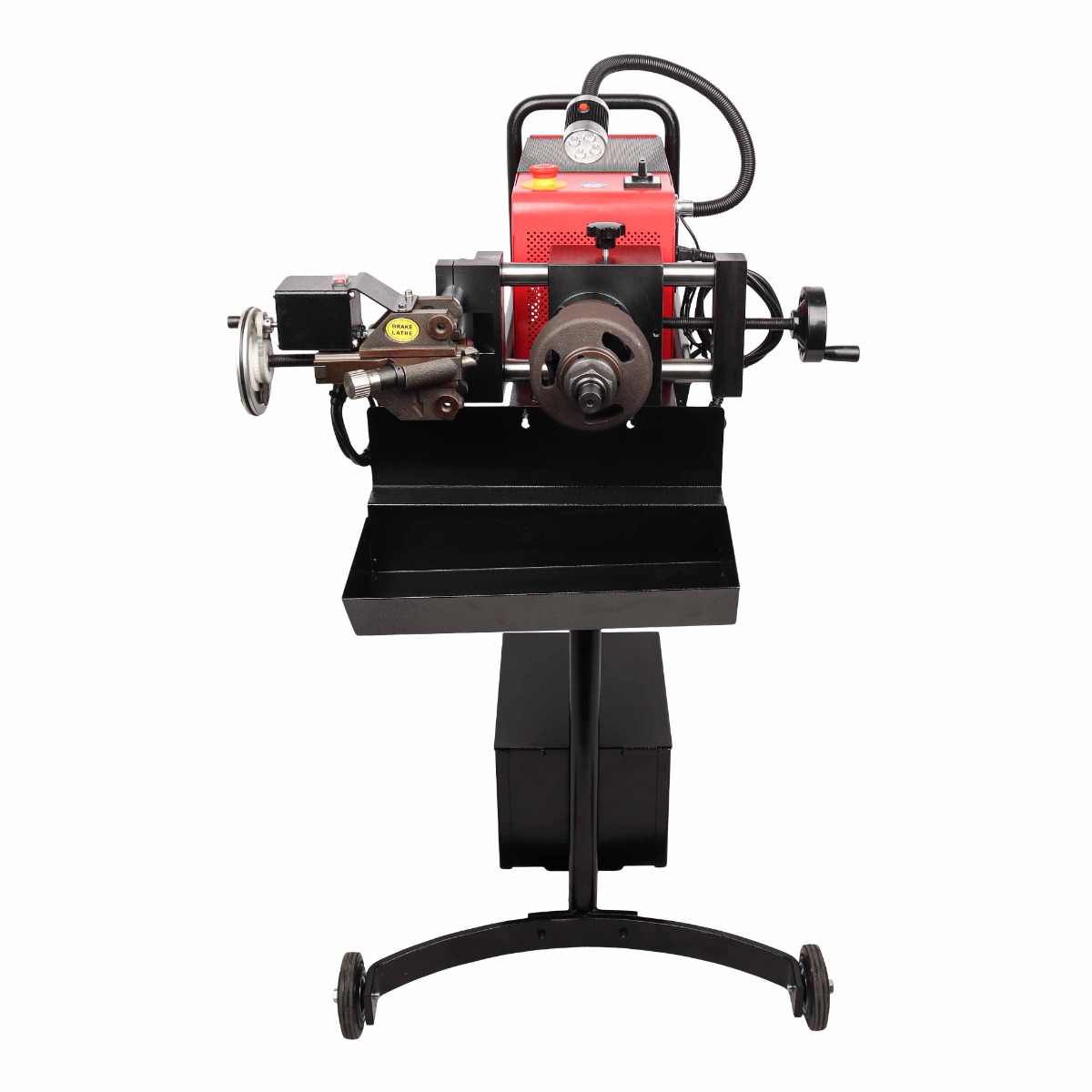

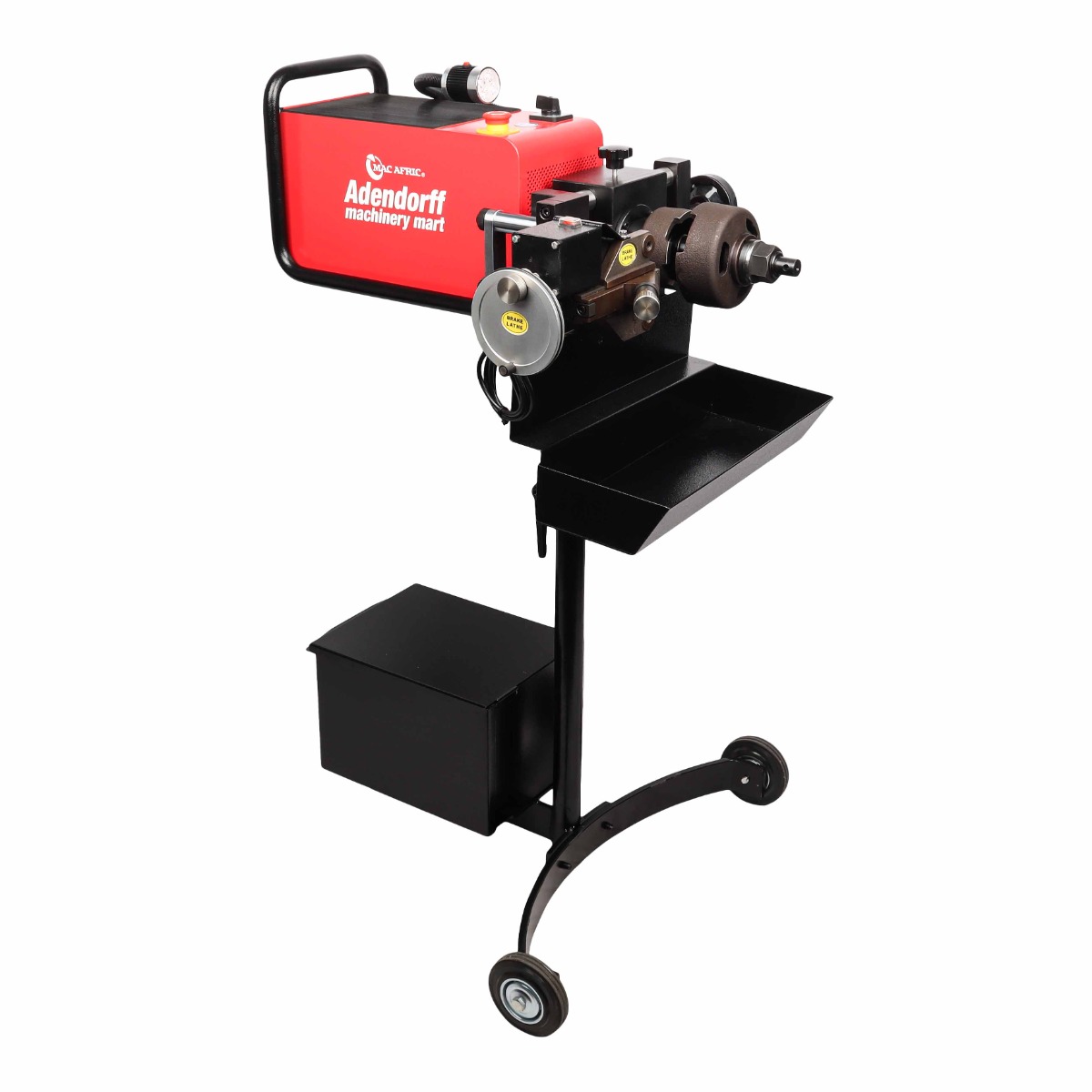

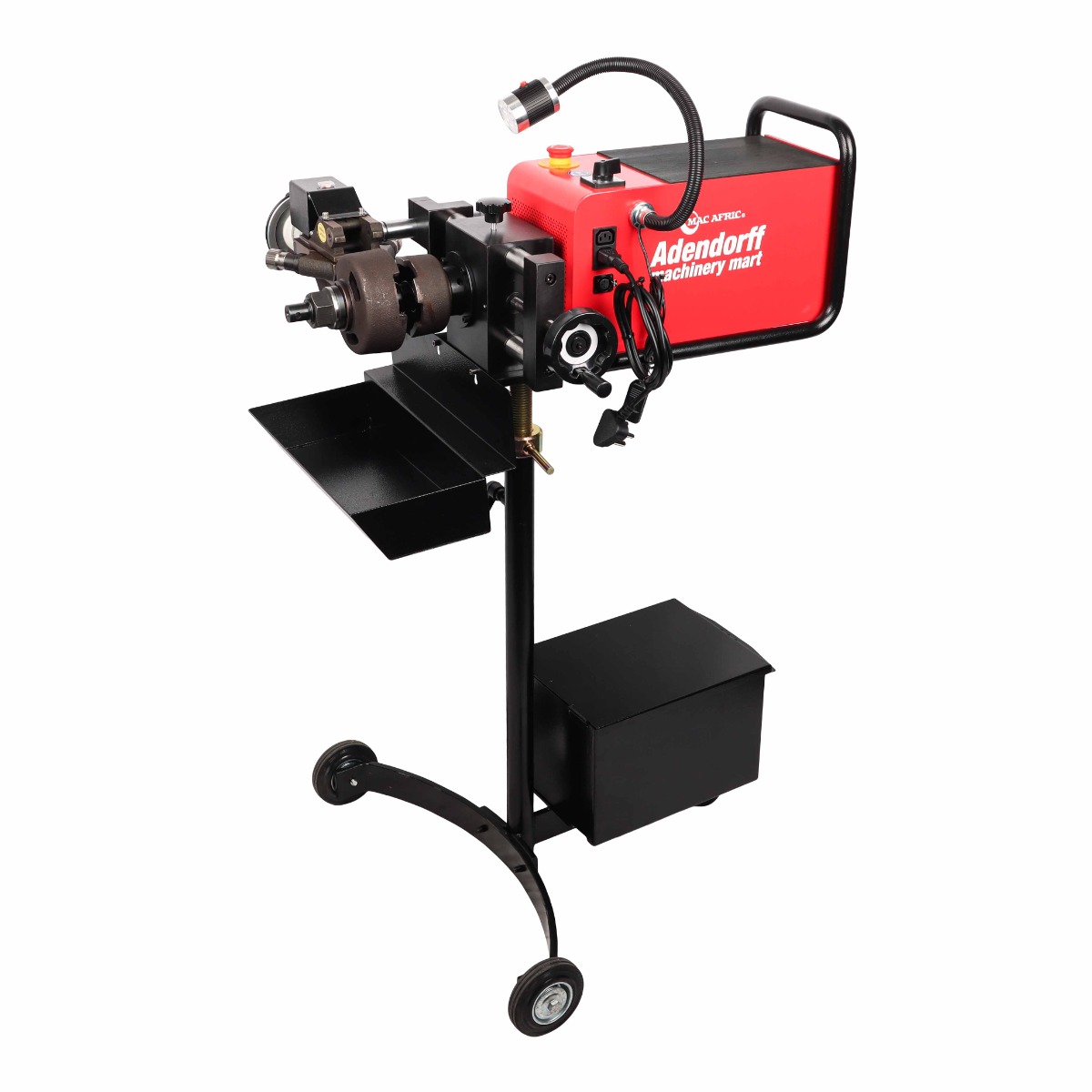

Dual Functions Brake Disc Lathe 220 240V 50Hz

Description

Shop the Dual Functions Brake Disc Lathe 220 240V 50Hz at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

Dual Functions Brake Disc Lathe 220 240V 50Hz: product details

The listed working height (min / max) is 1.0 / 1.25 m. The listed drive speed is 150 rpm. The listed electrical supply (main) is 230 V, 60 Hz.

Choosing the right item

Compare the stated working capacity, spindle configuration and power supply with your machining requirements. Check the included tooling, mounting arrangement and operating features. Match the exact machine specification to your workpiece and workshop before selecting additional accessories.

This item belongs to our lathe machines range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Working Height (Min / Max): 1.0 / 1.25 m
• Drive Speed: 150 rpm
• Electrical Supply (Main): 230 V, 60 Hz
• Machine Weight: 50 kg
• Ambient Temperature Range: -25°C to 50°C
• Turning Accuracy: ≤ 0.003 mm (range stated as ≤ 0.000–0.003 mm)
• Brake Disc Runout: ≤ 0.003 mm (range stated as ≤ 0.000–0.003 mm)
• Brake Disc Thickness Variation: 0.005–0.01 mm
• Brake Disc Surface Roughness: Ra 1.5–2.0 µm
• Noise Level: 74 dB(A)
• Noise Note: Excludes space correction factor of 4 dB(A)
• Maximum Brake Disc Thickness: 40 mm
• Vernier Knob Accuracy: ≤ 0.003 mm (range stated as ≤ 0.000–0.003 mm)
• Feed Rate: 8.5 mm/min
• Electrical Supply (Feed Motor): 12 V DC, 1.5 A
• Feed Motor Net Weight: 7 kg

Use and care

Follow the machine instructions for installation, setup and operation. Secure tooling and workpieces as directed and disconnect the supply before maintenance. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 134.000000
• Package Length (cm): 92.0
• Package Width (cm): 51.0
• Package Height (cm): 82.0

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the Dual Functions Brake Disc Lathe 220 240V 50Hz from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code ELATHB002 available if you need to identify this item again.
