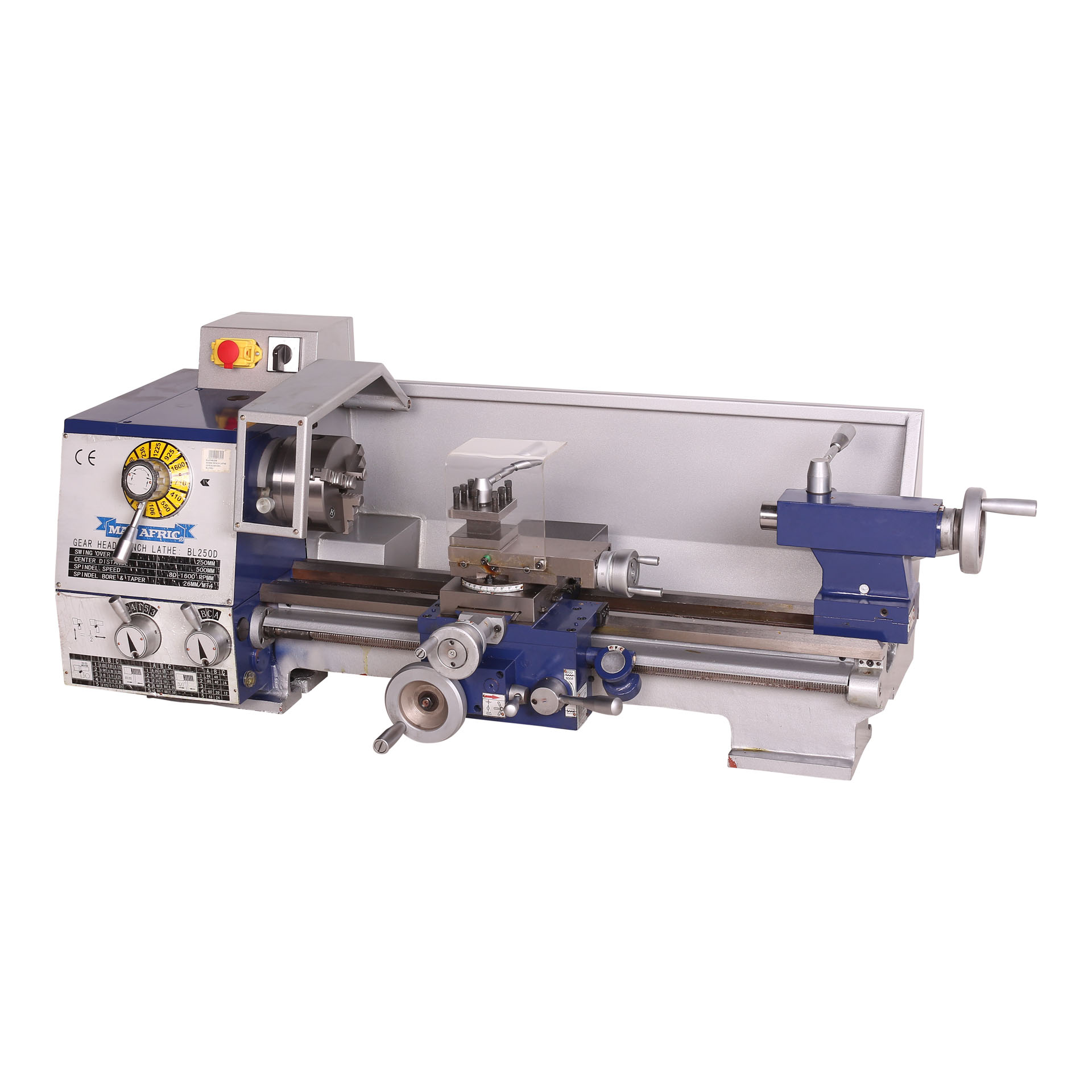

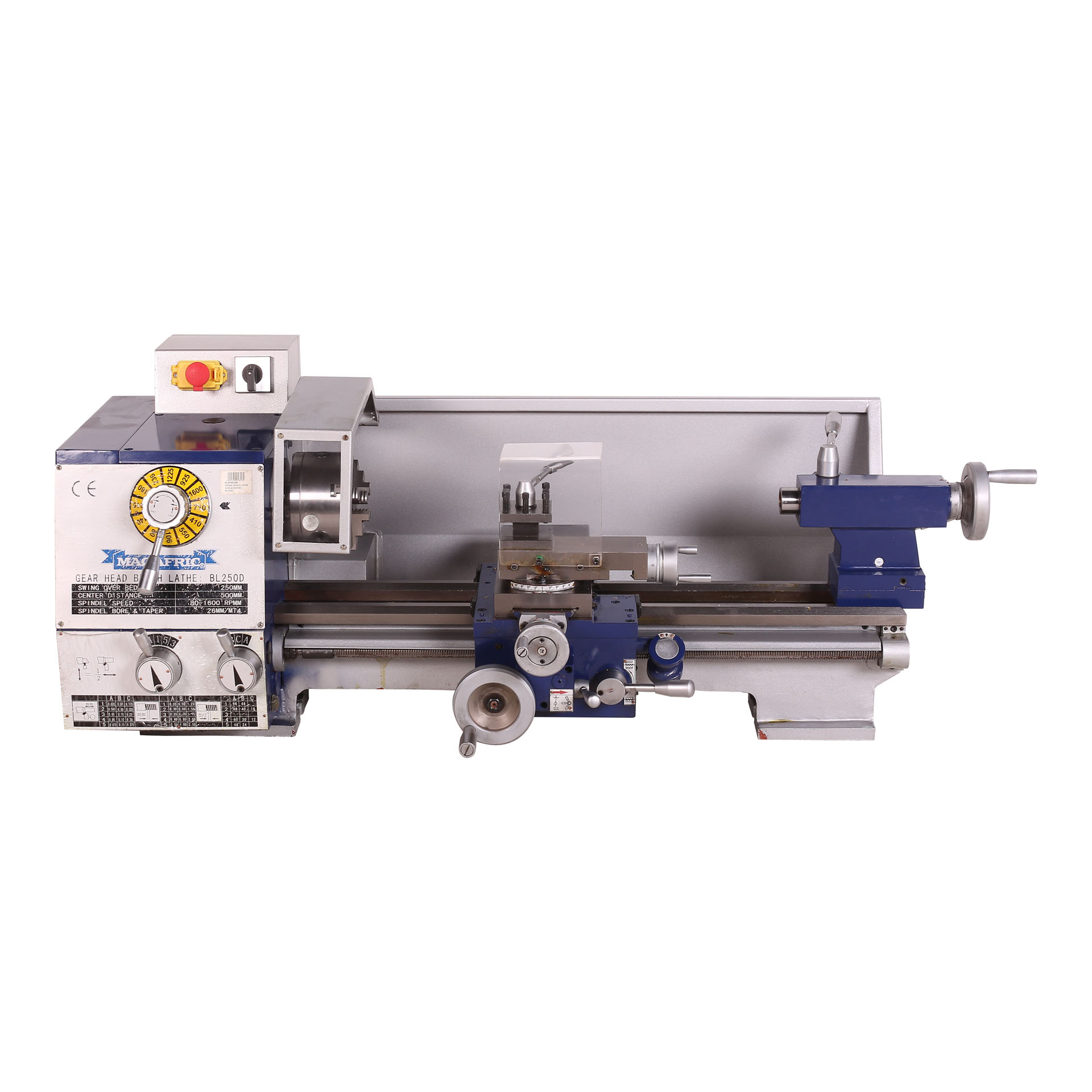

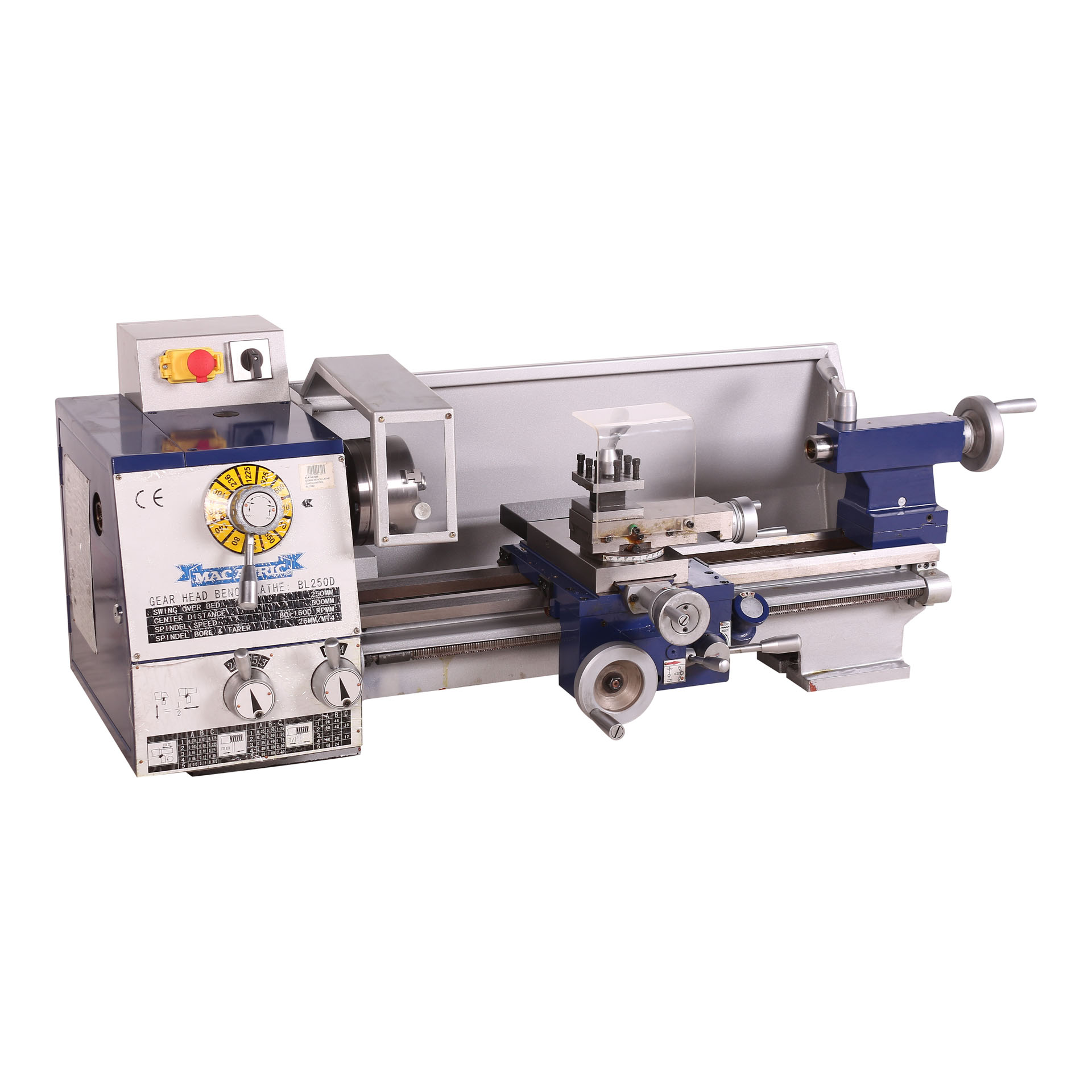

MAC AFRIC 500 MM Geared Head Bench Lathe

Description

Shop the MAC AFRIC 500 MM Geared Head Bench Lathe at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

MAC AFRIC 500 MM Geared Head Bench Lathe: product details

The listed power output is 750 W. The listed voltage is 230 V. The listed frequency is 50 HZ.

Choosing the right item

Compare the stated working capacity, spindle configuration and power supply with your machining requirements. Check the included tooling, mounting arrangement and operating features. Match the exact machine specification to your workpiece and workshop before selecting additional accessories.

This item belongs to our lathe machines range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Power Output: 750 W
• Voltage: 230 V
• Frequency: 50 HZ
• Max. Swing Over Bed: 250 MM
• Max. Swing Over Cross Slide: 150 MM
• Distance Between Centres: 500 MM
• Width Of Bed: 115 MM
• Taper of Spindle Bore: M.T.#3
• Range of Spindle Speeds: 80 – 1600 RPM (12 Steps)
• Max. Travel of Tailstock Quill: 60 MM
• Taper of Tailstock: MT#3
• Metric Threads Can be Cut: 0.25 – 2.5 MM
• Imperial Threads Can be Cut: 4 – 60 TPI
• Range of Longitudinal Feeds: 0.0527 – 1.2912 MM/REV
• Range Of Cross Feeds: 0.011 – 0.276 MM/REV
• Gross Weight: 180 KGS
• Tool Slide Travel: 75 MM

Use and care

Follow the machine instructions for installation, setup and operation. Secure tooling and workpieces as directed and disconnect the supply before maintenance. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Length (cm): 122.00
• Package Width (cm): 60.00
• Package Height (cm): 56.00
• Package Weight (kg): 130.000000

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the MAC AFRIC 500 MM Geared Head Bench Lathe from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code ELATHE250 available if you need to identify this item again.
