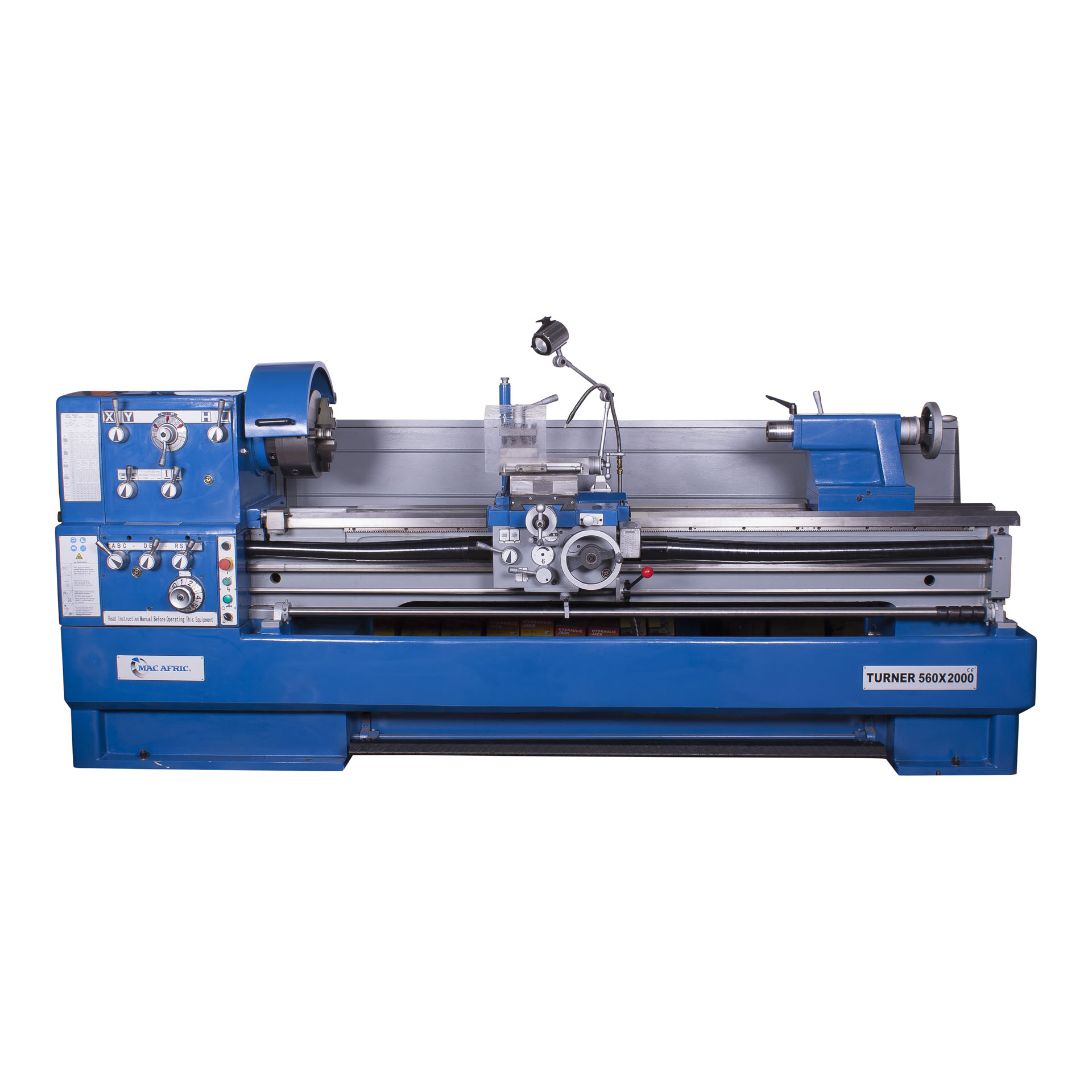

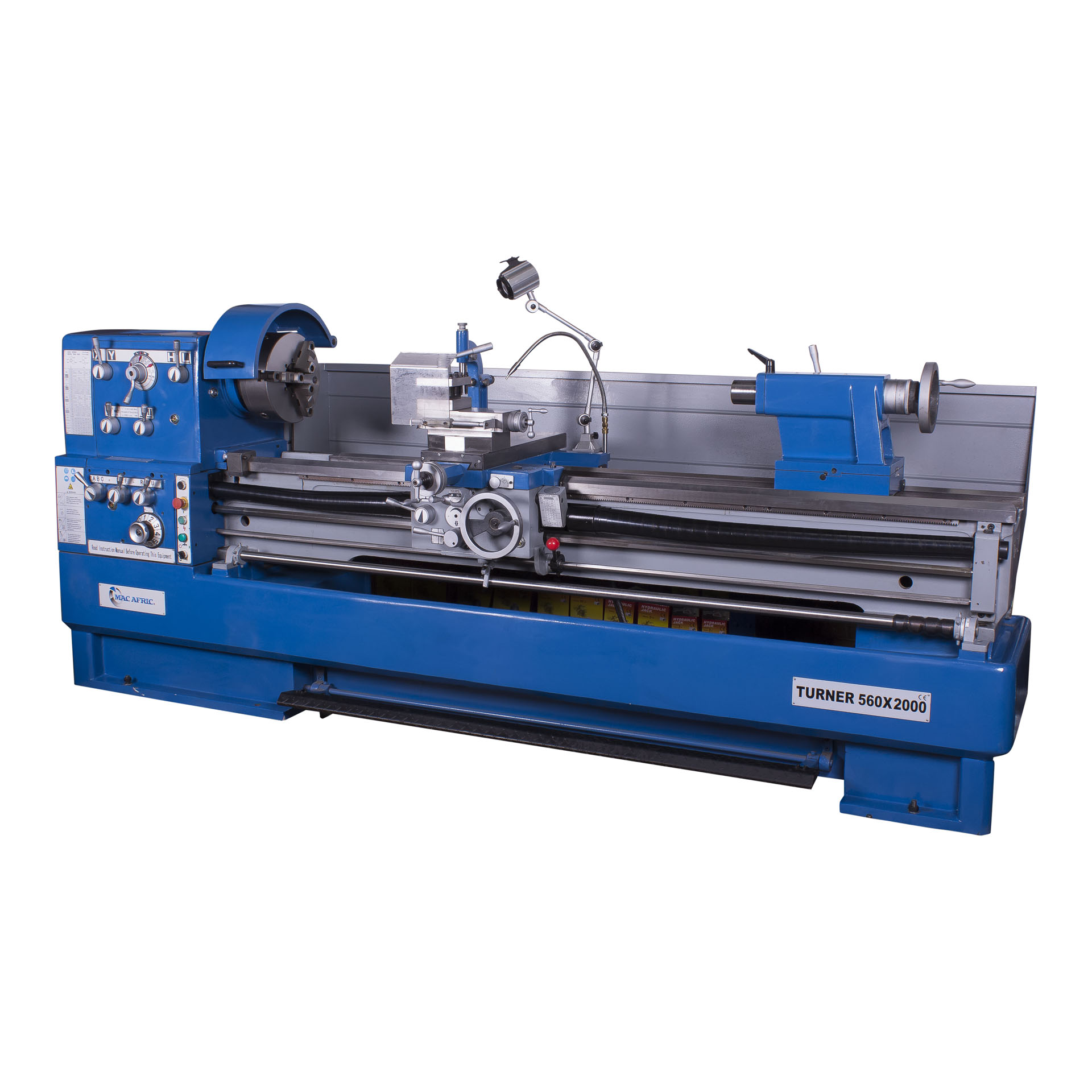

MAC AFRIC 2 M Lathe 560 x 2000 MM

Description

Shop the MAC AFRIC 2 M Lathe 560 x 2000 MM at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

MAC AFRIC 2 M Lathe 560 x 2000 MM: product details

The listed power output is 7.5 KW (10 HP). The listed voltage is 380 V (Three Phase). The listed frequency is 50/60 HZ.

Choosing the right item

Compare the stated working capacity, spindle configuration and power supply with your machining requirements. Check the included tooling, mounting arrangement and operating features. Match the exact machine specification to your workpiece and workshop before selecting additional accessories.

This item belongs to our lathe machines range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Power Output: 7.5 KW (10 HP)
• Voltage: 380 V (Three Phase)
• Frequency: 50/60 HZ
• Max. Swing Over Bed: 560 MM
• Max. Swing Over Cross Slide: 355 MM
• Max. Swing Over Gap: 785 x 170 MM
• Distance Between Centres: 2 M
• Width Of Bed: 350 MM
• Spindle Bore: 80 MM
• Taper of Spindle Bore: MT7
• Range of Spindle Speeds: 25 – 1600 RPM
• Diameter of Tailstock Quill: 75 MM
• Max. Travel of Tailstock Quill: 180 MM
• Taper of Tailstock: MT5
• Metric Threads Can be Cut: 0.2 – 14 MM
• Imperial Threads Can be Cut: 2 – 112 TPI

Use and care

Follow the machine instructions for installation, setup and operation. Secure tooling and workpieces as directed and disconnect the supply before maintenance. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Length (cm): 340.00
• Package Width (cm): 115.00
• Package Height (cm): 165.00
• Package Weight (kg): 3000.000000

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the MAC AFRIC 2 M Lathe 560 x 2000 MM from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code ELATHE200 available if you need to identify this item again.
