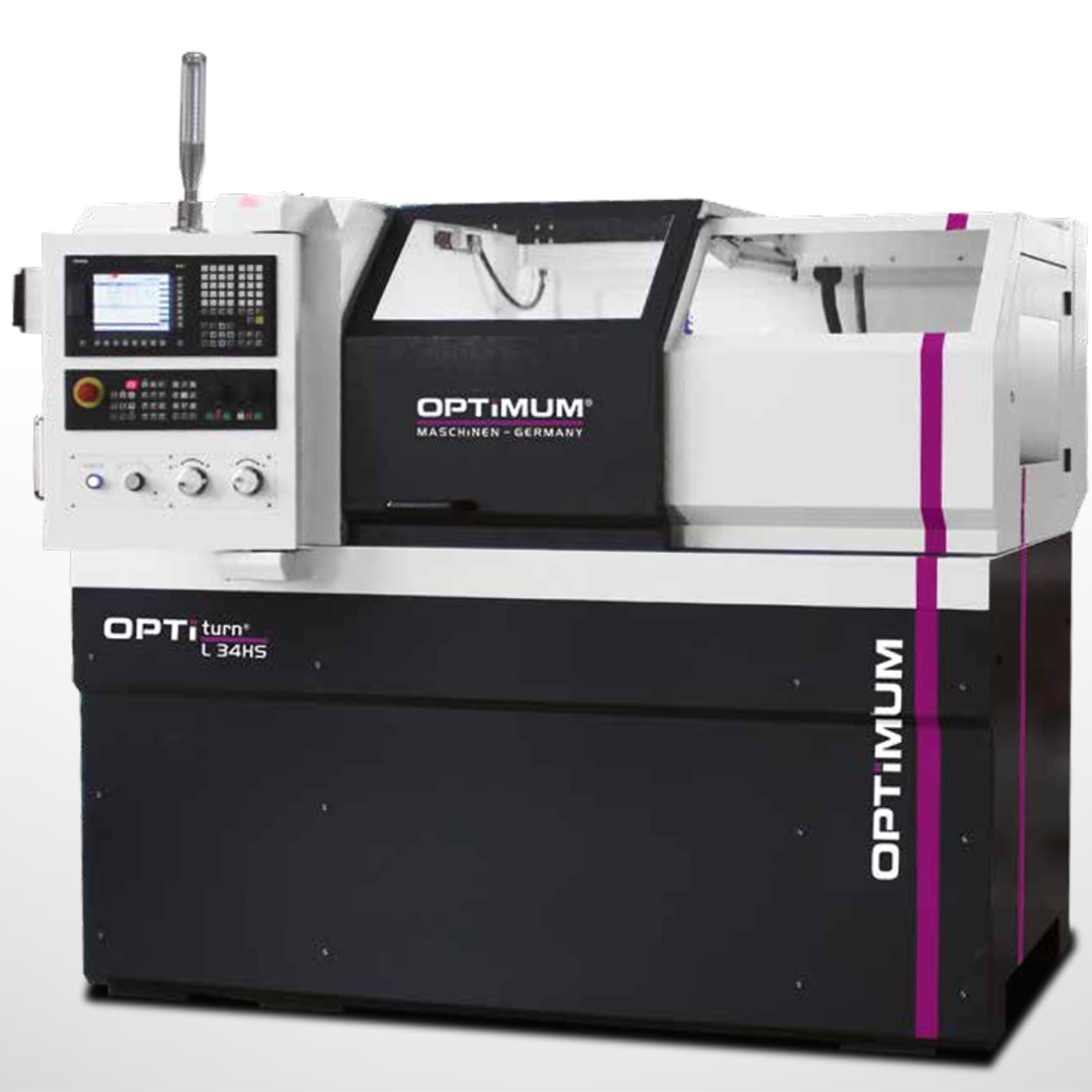

OPTIMUM CNC Lathe Machine L34HS

Description

Shop the OPTIMUM CNC Lathe Machine L34HS at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

OPTIMUM CNC Lathe Machine L34HS: product details

The listed model is L 34HS. The listed article number is 3504232. The listed electrical connection is 400 V / 3 Ph ~50 Hz.

Choosing the right item

Compare the stated working capacity, spindle configuration and power supply with your machining requirements. Check the included tooling, mounting arrangement and operating features. Match the exact machine specification to your workpiece and workshop before selecting additional accessories.

This item belongs to our lathe machines range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Model: L 34HS
• Article Number: 3504232
• Electrical Connection: 400 V / 3 Ph ~50 Hz
• Total Connected Load: 6.5 kVA
• Spindle Drive Motor (S1): 3.7 kW
• Torque Drive Motor (S1): 23.6 Nm
• Torque at the Spindle: 40 Nm
• Spindle Seat: ISO 702-1 No. 4 form A2
• Spindle Bore: Ø 46 mm
• Chuck Passage: Ø 42 mm
• Lathe Chuck Diameter: Ø 160 mm
• Coolant Pump Output: 95 W
• Tank Capacity: 75 litres
• Pump Delivery Rate: Max. 6 l/min
• Max. Delivery Head: 3 m
• Centre Height: 165 mm
• Centre Width: 540 mm
• Swing Ø Above Cross Slide: 146 mm
• Swing Ø Above Machine Bed: 350 mm
• Bed Width: 208 mm
• Spindle Speeds: 30 – 3 500 rpm
• Number of Tool Slots: 6
• Max. Mounting Height x Width of Square: 16 x 16 mm
• Max. Chuck Diameter Drilling Rod: 16 mm
• Repeat Accuracy: ± 0.01 mm
• Positioning Accuracy: ± 0.01 mm
• X Axis Travel: 185 mm
• Z Axis Travel: 540 mm
• X Axis Feed Speed: 6 m/min
• Z Axis Feed Speed: 8 m/min
• X Axis Motor Torque: 4 Nm
• Z Axis Motor Torque: 6 Nm
• Tailstock Shank: MT 3
• Spindle Sleeve Diameter: 45 mm
• Spindle Sleeve Stroke: 120 mm
• Dimensions (L x W x H): 1950 x 1475 x 1956 mm
• Overall Weight: 1200 kg
• Control: 8.4 inch LCD colour display with 800 x 600 resolution

Use and care

Follow the machine instructions for installation, setup and operation. Secure tooling and workpieces as directed and disconnect the supply before maintenance. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 1500.000000
• Package Length (cm): 207
• Package Width (cm): 165
• Package Height (cm): 205

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the OPTIMUM CNC Lathe Machine L34HS from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code ELATCN034 available if you need to identify this item again.
