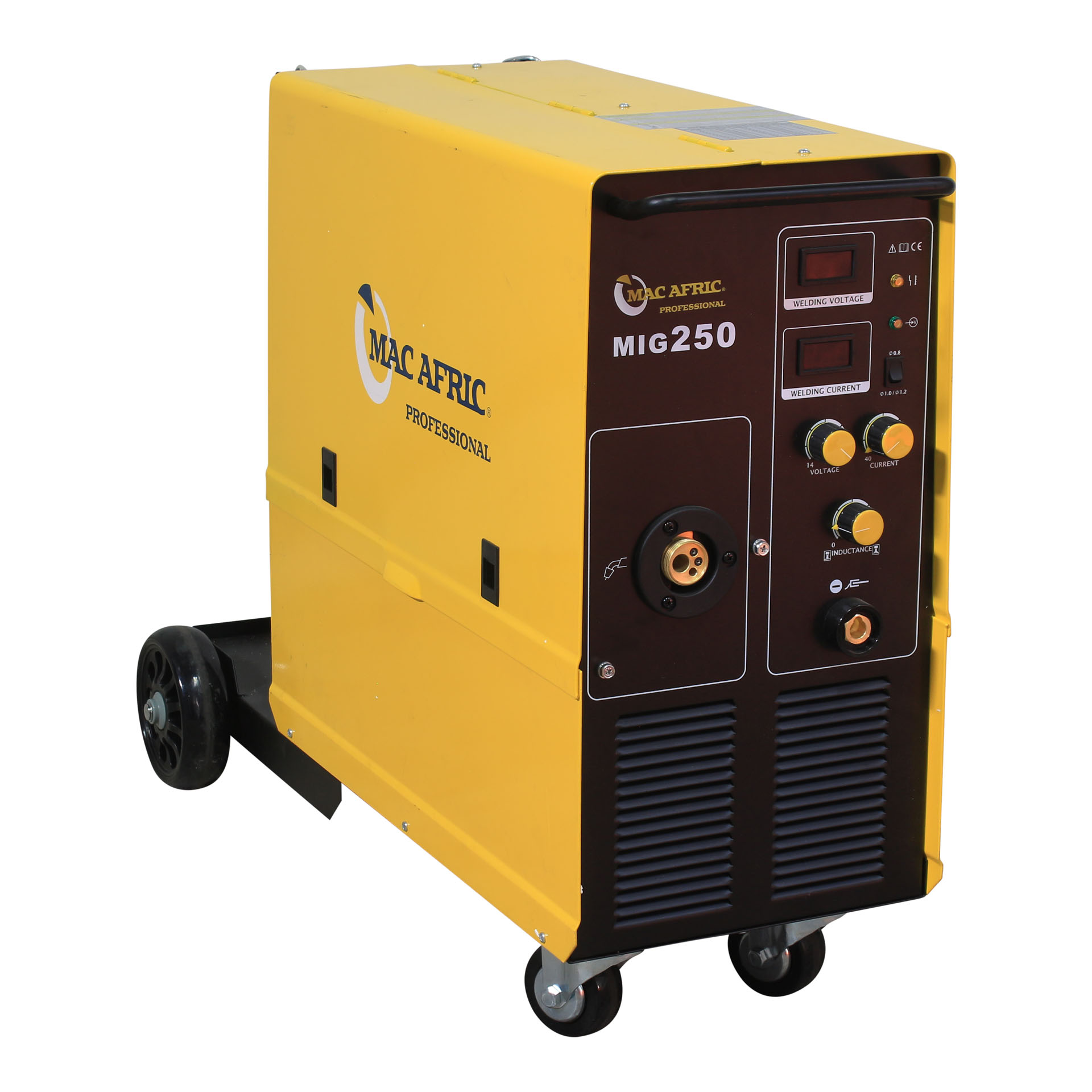

MAC AFRIC MODEL 250 MIG Inverter Welder

Description

Shop the MAC AFRIC MODEL 250 MIG Inverter Welder at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

MAC AFRIC MODEL 250 MIG Inverter Welder: product details

The listed model is EWELDM250K25. The listed input voltage is 220 V ± 15%. The listed frequency is 50/60 Hz.

Choosing the right item

Compare the stated output range, input supply and supported welding processes with the workpiece and complete welding setup. Check the included components and any separately required accessories. Match the complete product specification to the intended process before ordering, since similar-looking items can use different connections, operating ratings or consumables.

This item belongs to our mig and multiprocess welders range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Model: EWELDM250K25
• Input Voltage: 220 V ± 15%
• Frequency: 50/60 Hz
• Rated Input Current: 40 A (Ieff = 25 A)
• Rated Input Power: 8.8 kVA
• Output Current: 40 – 210 A
• Wire Speed: 1.0 – 15 m/min
• Output Voltage: 16 – 24.5 V
• No Load Voltage: 45 V
• Post Flow: 1 ± 0.5 s
• Duty Cycle (40°C): 210 A / 25.6 V @ 25%160 A / 22 V @ 60%130 A / 20.5 V @ 100%
• Power Factor: 0.73
• Efficiency: 80%
• Housing Protection Grade: IP21

Use and care

Follow the product and equipment instructions for installation, setup and operation. Inspect the item and its working components before use. Apply the operating conditions and protective equipment requirements specified for the exact product and task. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 25.720000
• Package Length (cm): 57.80
• Package Width (cm): 36.20
• Package Height (cm): 68.40

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the MAC AFRIC MODEL 250 MIG Inverter Welder from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code EWELDM203 available if you need to identify this item again.
