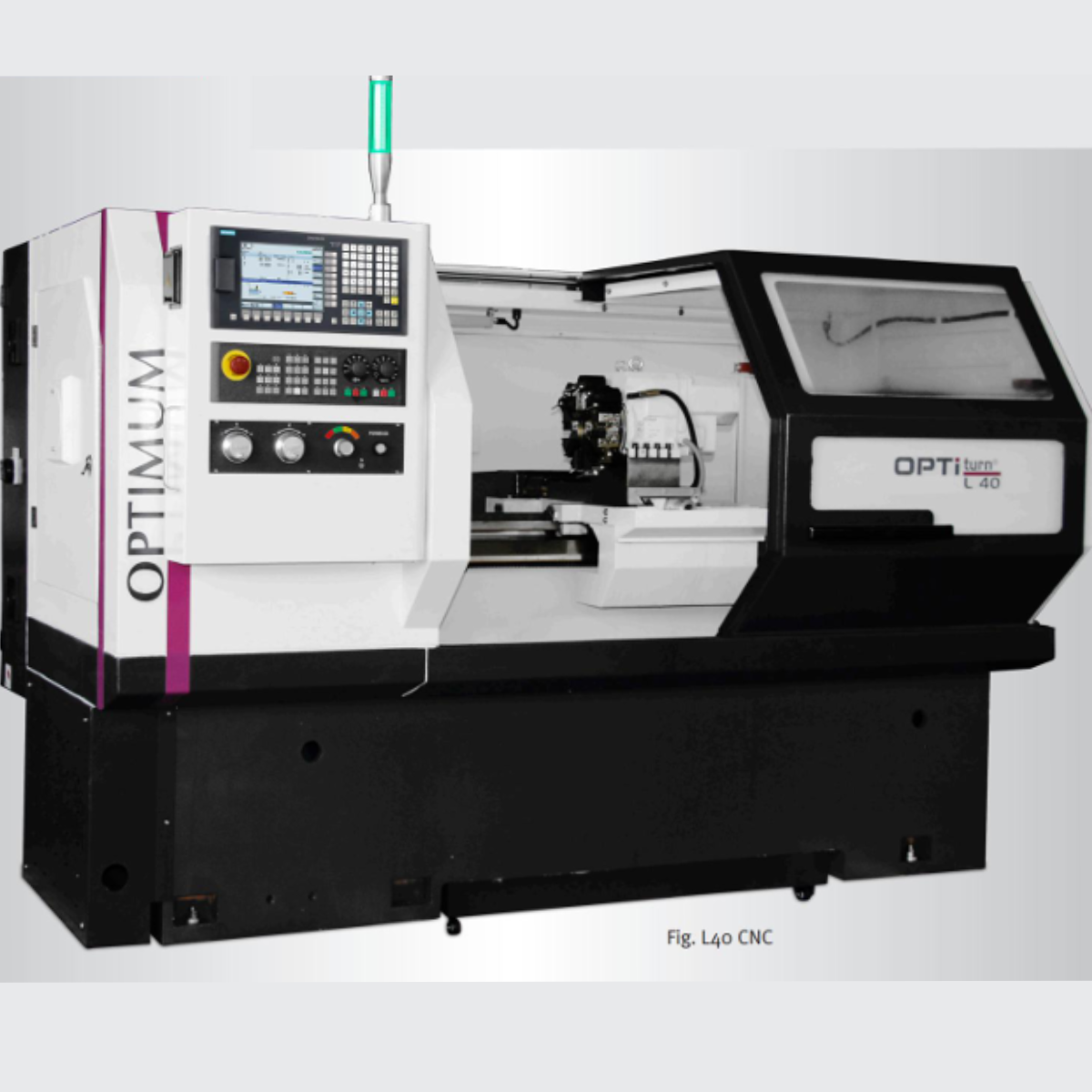

OPTIMUM CNC Lathe Machine L40

Description

Shop the OPTIMUM CNC Lathe Machine L40 at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

OPTIMUM CNC Lathe Machine L40: product details

The listed model is L40. The listed item no is 1304000. The listed total power is 11 KW.

Choosing the right item

Compare the stated working capacity, spindle configuration and power supply with your machining requirements. Check the included tooling, mounting arrangement and operating features. Match the exact machine specification to your workpiece and workshop before selecting additional accessories.

This item belongs to our lathe machines range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Model: L40
• Item No: 1304000
• Total Power: 11 KW
• Electrical Connection: 400V 50Hz 3Ph
• Main Motor Power: 7.5 KW
• Coolant Pump Power: 370 W
• Capacity: —
• Swing Over Bed: Ø400 mm
• Swing Over Cross Slide: Ø240 mm
• Center Width: 850 mm
• Center Height: 200 mm
• Spindle Taper: MT6
• Spindle Nose: A2-6
• Spindle Bore: Ø51 mm
• Spindle Speed Range: 30–2500 rpm
• Lathe Chuck: Ø200 mm
• Tool Turret Type: Electric
• Number of Tools: 8
• Section of Tool (Max): 20 x 20 mm
• X/Z Axis Travel: 240/850 mm
• X/Z Axis Rapid Feed: 6000/8000 mm/min
• Position Accuracy: ±0.015 mm
• Repeat Position Accuracy: ±0.01 mm
• Tailstock Taper: MT4
• Tailstock Sleeve Diameter: Ø55 mm
• Tailstock Sleeve Travel: 120 mm
• Overall Dimensions (L x W x H): 2540 x 1420 x 1750 mm
• Packing Size (L x W x H): 2760 x 1630 x 1953 mm
• Net Weight / Gross Weight: 2400 / 2550 kg
• Tank Capacity: 110 L

Use and care

Follow the machine instructions for installation, setup and operation. Secure tooling and workpieces as directed and disconnect the supply before maintenance. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 2400.000000
• Package Length (cm): 276
• Package Width (cm): 1630
• Package Height (cm): 195

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the OPTIMUM CNC Lathe Machine L40 from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code ELATCN040 available if you need to identify this item again.
