OPTIMUM CNC Milling Machine F150E

Description

Shop the OPTIMUM CNC Milling Machine F150E at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

OPTIMUM CNC Milling Machine F150E: product details

The listed model is OPTIMUM CNC Milling Machine F150E. The listed article number is 350150. The listed drive is Belt Drive.

Choosing the right item

Compare the working capacity, spindle configuration and power supply with your machining requirements. Check the stated control method, mounting arrangement and included components. Match the complete model specification to your workshop and planned work before choosing compatible tooling.

This item belongs to our milling and cnc machines range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Model: OPTIMUM CNC Milling Machine F150E
• Article Number: 350150
• Drive: Belt Drive
• Electrical Connection: 400 V / 3 Ph ~50 Hz
• Total Connected Load: 15 kW
• Drive Motor S1: 7.5 kW
• Torque S1: 48 Nm
• Drive Motor S6 30%: 11.25 kW
• Torque S6 30%: 72 Nm
• Spindle Seat: BT 40
• Coolant Pump Output: 450 W
• Coolant Tank Capacity: 190 litres
• Repeat Accuracy: ± 0.008 mm
• Positioning Accuracy: ± 0.008 mm

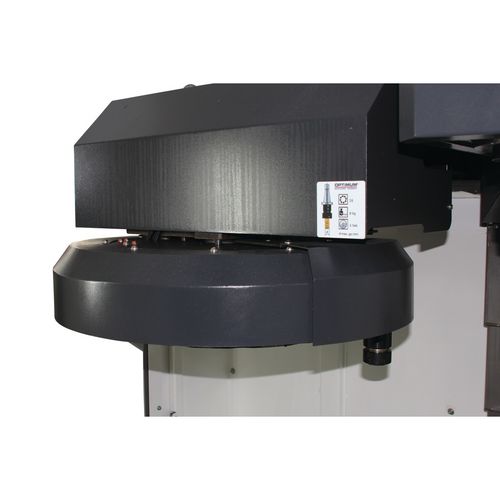

• Number of Tool Slots: 16
• Max Tool Diameter: 80 mm
• Max Tool Diameter (adjacent slots empty): 180 mm
• Max Tool Length: 300 mm
• Max Tool Weight: 8 kg
• Travel X / Y / Z: 800 mm / 500 mm / 500 mm
• Rapid Traverse (X/Y/Z): 32 m/min
• Motor Torque (X/Y/Z): 9.55 Nm / 9.55 Nm / 16.7 Nm
• Speed Range: 10 – 10,000 rpm

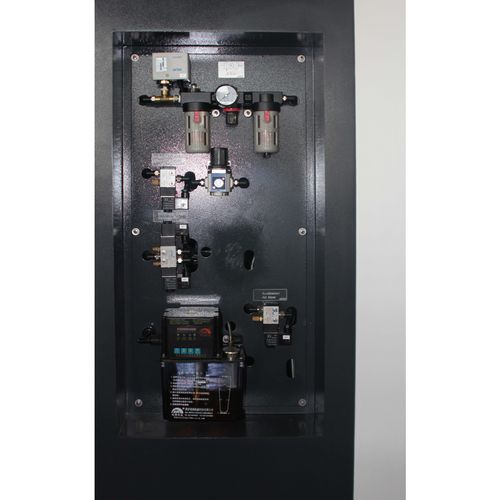

• Compressed Air Requirement: 6 bar
• Spindle Clearance to Table: 120 – 670 mm
• Spindle to Column Distance: 380 mm

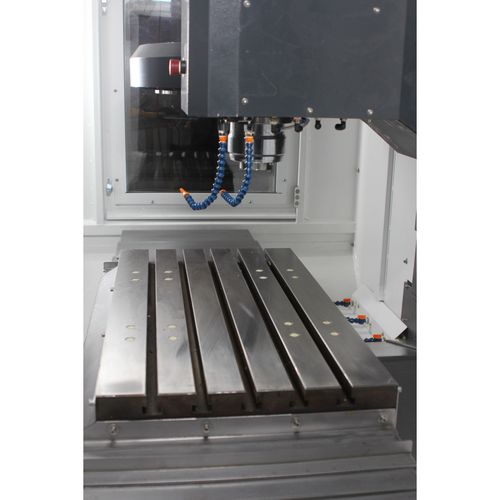

• Table Size (L x W): 1000 x 500 mm
• T-Slot Size / Number / Distance: 18 mm / 5 / 80 mm
• Maximum Payload: 500 kg
• Dimensions (L x W x H): 3420 x 2050 x 2400 mm
• Overall Weight: 4500 kg

Use and care

Follow the machine instructions for installation, setup and operation. Secure the workpiece and tooling as directed before machining. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 4500.000000
• Package Length (cm): 240
• Package Width (cm): 205
• Package Height (cm): 240

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the OPTIMUM CNC Milling Machine F150E from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code EMILCN150 available if you need to identify this item again.
