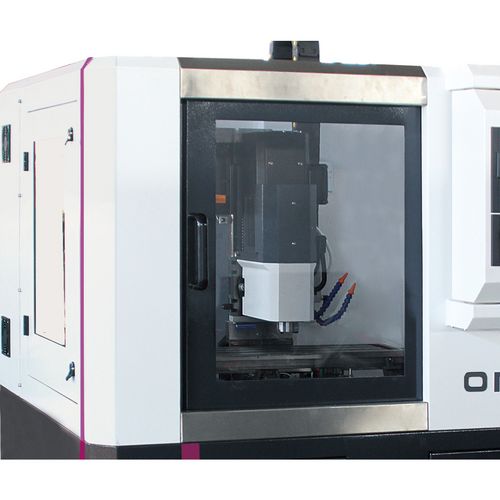

OPTIMUM CNC Milling Machine F3

Description

Shop the OPTIMUM CNC Milling Machine F3 at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

OPTIMUM CNC Milling Machine F3: product details

The listed model is F3 Pro. The listed article number is 3500346. The listed electrical connection is 400 V / 3 Ph ~ 50 Hz.

Choosing the right item

Compare the working capacity, spindle configuration and power supply with your machining requirements. Check the stated control method, mounting arrangement and included components. Match the complete model specification to your workshop and planned work before choosing compatible tooling.

This item belongs to our milling and cnc machines range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Model: F3 Pro
• Article Number: 3500346
• Electrical Connection: 400 V / 3 Ph ~ 50 Hz
• Total Connected Load: 5 kVA
• Main Spindle Drive: 1.5 kW
• Spindle Speed: 100 – 6,000 rpm
• Spindle Seat: ISO 30 / BT 30 x 45°
• Cooling Lubricant System: Yes
• Coolant Pump Output: 95 W
• Coolant Capacity: 50 litres
• Main Capacity: 10 litres
• Cutting Tool Size Max.: ⌀ 25 mm
• End Mill Size Max.: ⌀ 16 mm
• Milling Precision: ± 0.02 mm
• Positioning Accuracy: ± 0.01 mm
• Max Tool Diameter (w/o additional positions): 100 mm / 80 mm
• Max Tool Weight: 6 kg
• X Axis Travel: 360 mm
• Y Axis Travel: 200 mm
• Z Axis Travel: 340 mm
• Feed Speed: 10 m/min
• Rapid Traverse: 9 m/min
• Spindle Torque: 3.5 Nm
• Spindle Nose to Table: 3.5 mm
• Spindle Nose to Center of Column: 175 mm
• Clearance Spindle to Table: 270 mm

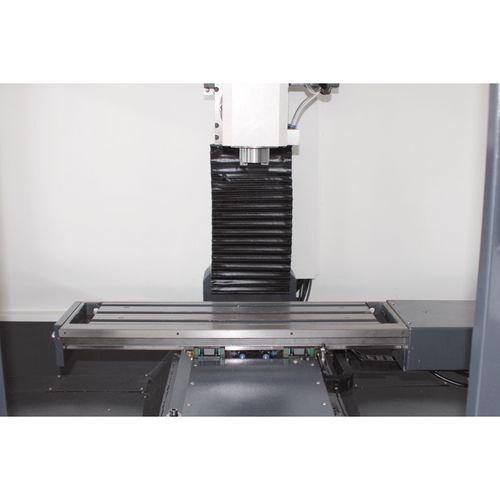

• Table Size (L × W): 460 × 200 mm
• Max Load on Table: 120 kg
• Overall Dimensions (L × W × H): 1410 × 1372 × 2001 mm
• Weight: 720 kg

Use and care

Follow the machine instructions for installation, setup and operation. Secure the workpiece and tooling as directed before machining. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Weight (kg): 720.000000
• Package Length (cm): 141
• Package Width (cm): 152
• Package Height (cm): 223

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the OPTIMUM CNC Milling Machine F3 from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code EMILCN030 available if you need to identify this item again.
