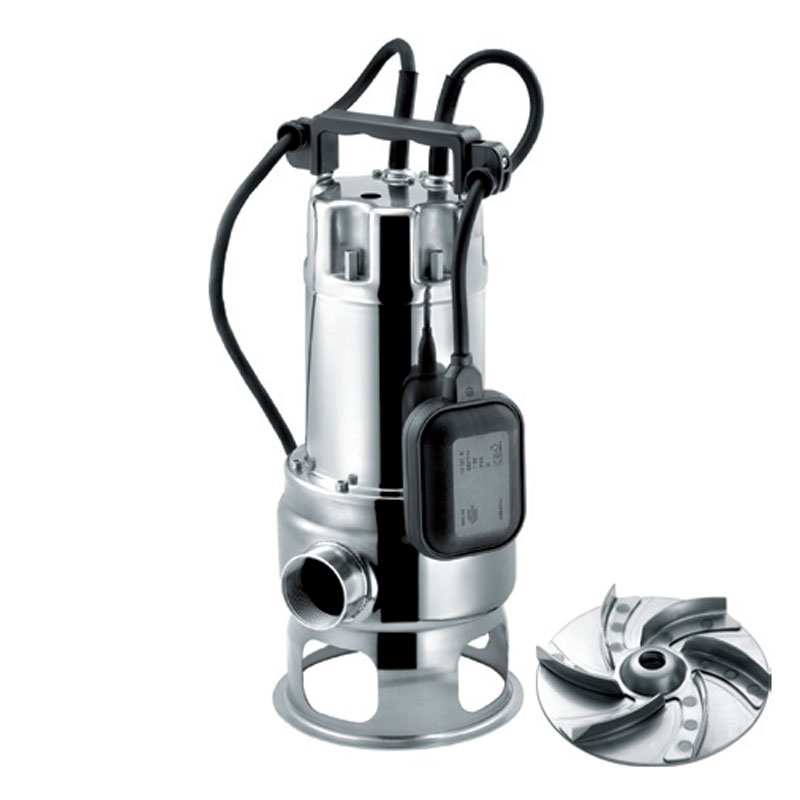

PENTAX DX100G 1350W 230V Submersible Drainage Pump (With FLOAT)

Description

Shop the PENTAX DX100G 1350W 230V Submersible Drainage Pump (With FLOAT) at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

PENTAX DX100G 1350W 230V Submersible Drainage Pump (With FLOAT): product details

The listed pump body is Stainless steel. The listed shell, motor cover, base support is Stainless steel. The listed impeller is Stainless steel vortex type.

Choosing the right item

Compare the stated flow specification, operating head and immersion requirements with the water source and discharge arrangement. Check the included components and any operating requirements. Match the complete specification to your application before ordering. A maximum flow rate and a maximum head can describe different operating points, so use the exact model data when reviewing performance requirements.

This item belongs to our submersible water pumps range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Pump Body: Stainless steel
• Shell, Motor Cover, Base Support: Stainless steel
• Impeller: Stainless steel vortex type
• Mechanical Seal: Double seal with oil barrier: silicon carbide on pump side, sealing ring on motor side
• Motor Shaft: Stainless steel AISI 430
• Free Passage: Ø max 28 mm
• Max Submergence: 5 m
• Liquid Temperature: 0 – 40 °C
• Cable: H07 RN8F, 10 m
• Float Switch: Yes (G)
• Maximum Flow Rate: 300 L/min (18 m³/h)
• Maximum Head: 9.8 m
• Water Quality: Grey water and black water
• Motor Type: Two Poles Induction Motor 1~ 230V-50Hz (with thermal protection)
• Insulation Class: F
• Protection Degree: IPX8
• Amperage: 6.2 A
• Power Output: 1350 W
• Outlet Size: 1 1/2" G
• Feature: Specification
• G: Float switch
• Two Poles Induction Motor: 1~ 230V-50Hz (with thermal protection)

Use and care

Follow the product and equipment instructions for installation, operation and inspection. Use only the permitted fluids and operating conditions for the exact item. Inspect connections and working components before operation, and disconnect the supply as directed before maintenance. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Length (cm): 17.00
• Package Width (cm): 24.80
• Package Height (cm): 41.60
• Package Weight (kg): 12.120000

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the PENTAX DX100G 1350W 230V Submersible Drainage Pump (With FLOAT) from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code HPUMPD100 available if you need to identify this item again.
