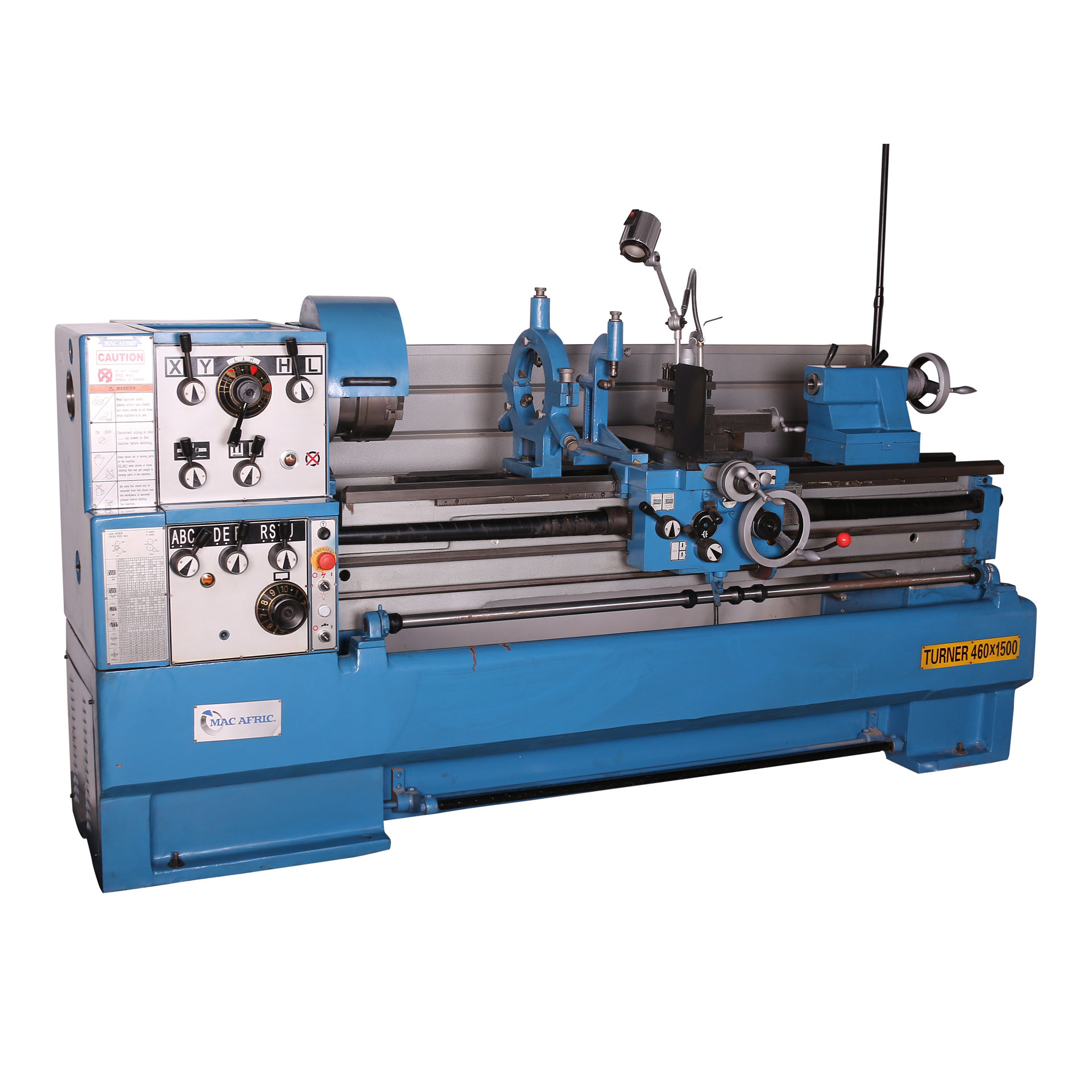

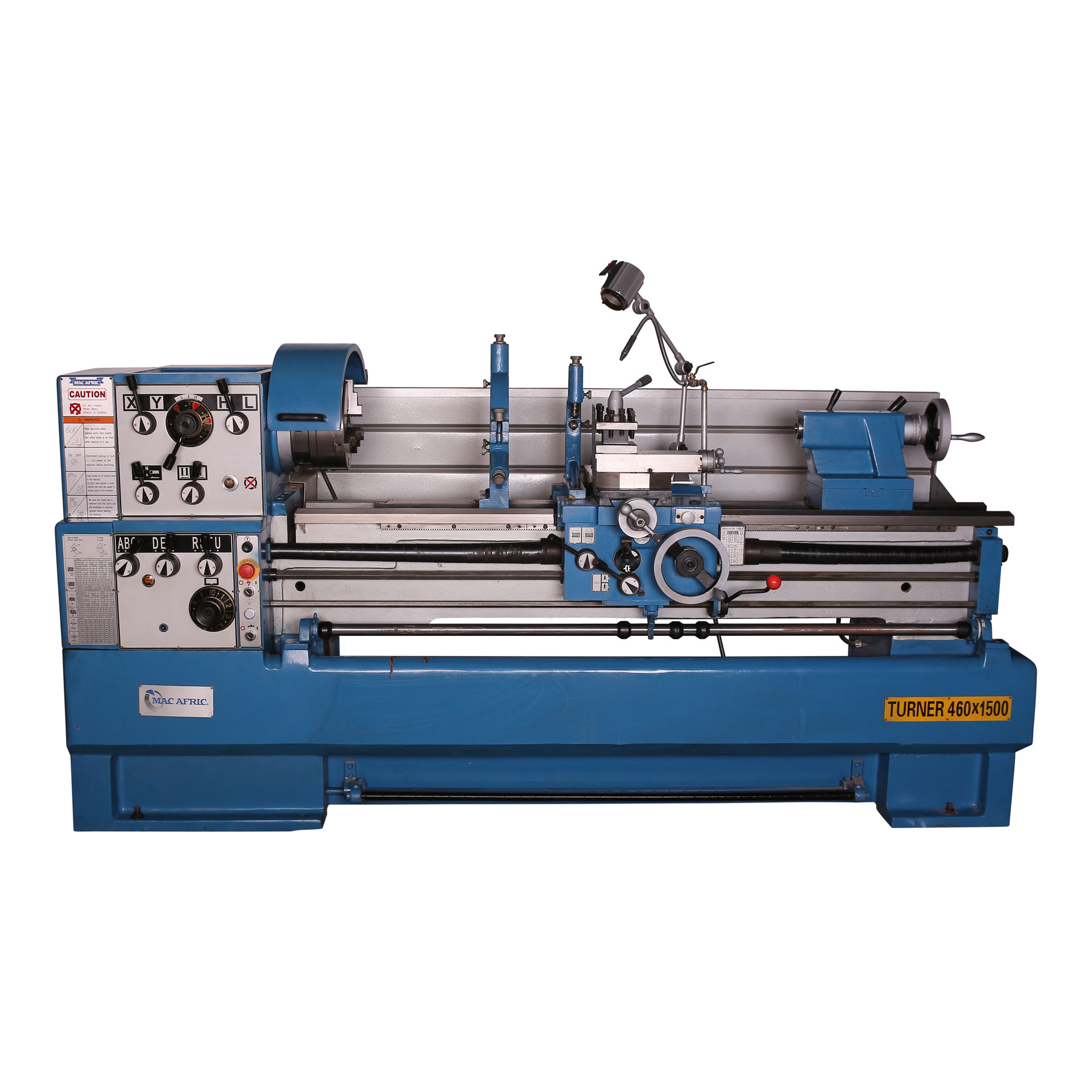

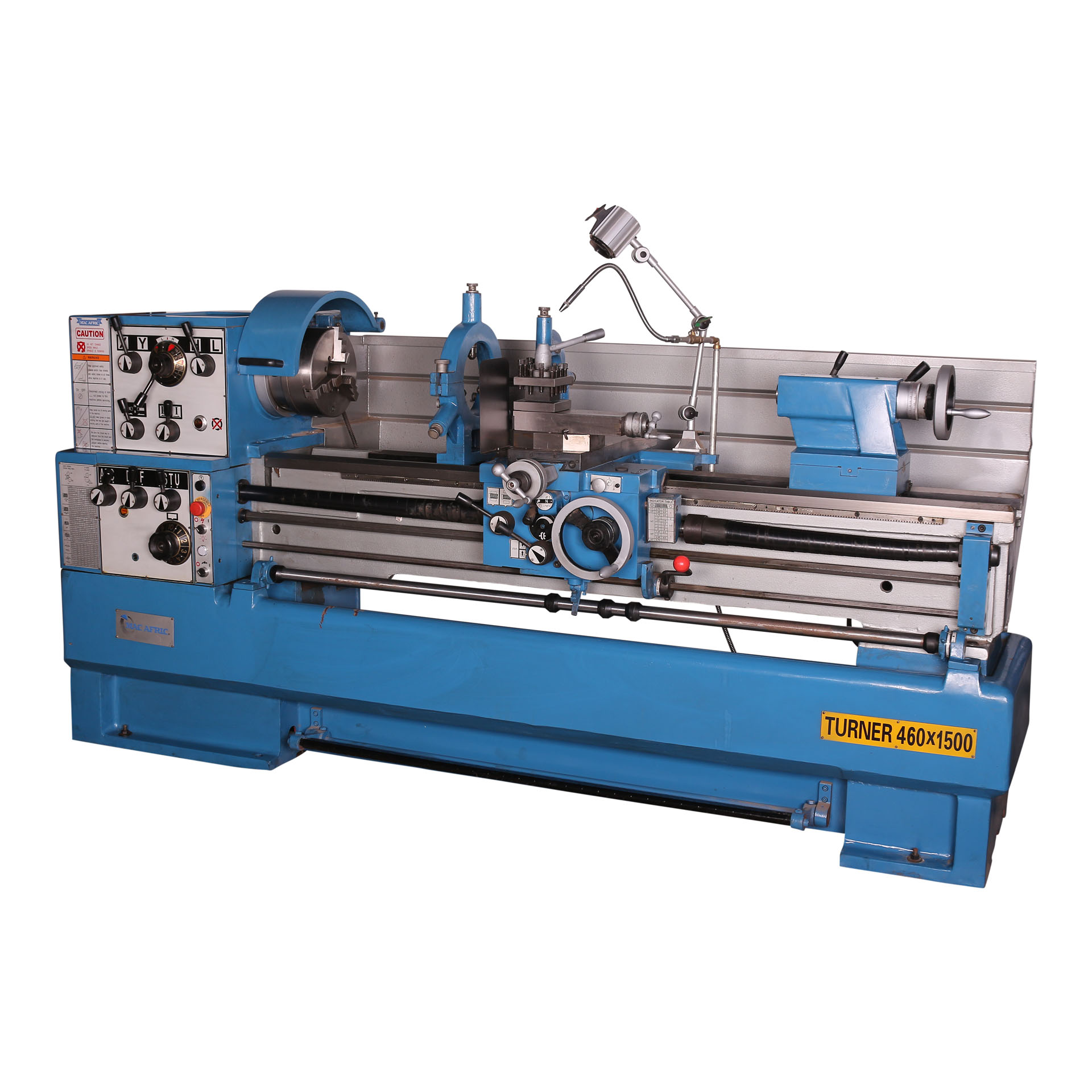

MAC AFRIC 460 x 1500 MM Lathe

Description

Shop the MAC AFRIC 460 x 1500 MM Lathe at Peculiar Beauté in South Africa. Use the product specifications below to compare this item with your equipment and project requirements.

MAC AFRIC 460 x 1500 MM Lathe: product details

The listed swing over bed is 410 mm. The listed swing over cross slide is 224 mm. The listed swing in gap (diameter × width) is 640 × 240 mm.

Choosing the right item

Compare the stated working capacity, spindle configuration and power supply with your machining requirements. Check the included tooling, mounting arrangement and operating features. Match the exact machine specification to your workpiece and workshop before selecting additional accessories.

This item belongs to our lathe machines range. Review its product code and listed measurements when comparing similar options. Furthermore, check the required accessories before completing your order.

Technical specifications

• Swing Over Bed: 410 mm
• Swing Over Cross Slide: 224 mm
• Swing in Gap (Diameter × Width): 640 × 240 mm
• Centre Height: 205 mm
• Distance Between Centres: 760 / 1,010 / 1,515 / 1500 mm
• Bed Width: 300 mm
• Maximum Cutting Tool Section: 25 × 25 mm
• Cross-Slide Travel: 290 mm
• Top-Slide Travel: 128 mm
• Spindle Bore: Ø58 mm
• Spindle Nose: D1-6″
• Spindle Morse Taper (Nose / Sleeve): MT6 / MT4
• Number of Spindle Speeds: 12
• Spindle Speed Range: 25–2,000 rpm
• Leadscrew Diameter and Thread: Ø35 mm × 4 TPI or 6 mm pitch
• Imperial Thread Range: 2–112 TPI, 60 selections
• Metric Thread Range: 0.1–14 mm, 41 selections
• Diametral Pitch Range: 4–112 DP, 50 selections
• Module Pitch Range: 0.1–7, 34 selections
• Imperial Longitudinal Feed Range: 0.0011″–0.0633″/rev, 42 selections
• Metric Longitudinal Feed Range: 0.031–1.7 mm/rev, 42 selections
• Imperial Cross-Feed Range: 0.00033″–0.01837″/rev, 42 selections
• Metric Cross-Feed Range: 0.014–0.784 mm/rev, 42 selections
• Tailstock Quill Travel: 123 mm
• Tailstock Quill Diameter: Ø60 mm
• Tailstock Quill Taper: MT4
• Spindle Drive Motor: 5 hp or 7.5 hp, 4-pole, 3-phase
• Coolant Pump Motor: 1/8 hp, 2-pole, 3-phase
• Power Output: 4 KW (5 HP)
• Voltage: 230/380 V
• Frequency: 50 – 60 HZ
• Max. Swing Over Bed: 320 MM (13" IN)
• Max. Swing Over Cross Slide: 178 MM (7" IN)
• Max. Swing Over Gap: 450 MM (18" IN)
• Width Of Bed: 181 MM
• Range of Spindle Speeds: 75 – 1 400 RPM (9 Steps) 65 – 1 810 RPM (18 Steps)
• Max. Travel of Tailstock Quill: 100 MM (4" IN)
• Metric Threads Can be Cut: 32 Kinds: 0.4 – 7 MM
• Imperial Threads Can be Cut: 32 Kinds: 4 – 60 TPI
• Range of Longitudinal Feeds: 0.0527 – 1.2912 MM/REV (0.0021 – 0.0508 INCH/REV)
• Range Of Cross Feeds: 0.011 – 0.276 MM/REV (0.0006 – 0.0136 INCH/REV)
• Gross Weight: 550 KG

Use and care

Follow the machine instructions for installation, setup and operation. Secure tooling and workpieces as directed and disconnect the supply before maintenance. Read the relevant instructions before the first use. In addition, choose protective equipment that suits the task and working environment.

Package information

• Package Length (cm): 280.00
• Package Width (cm): 165.00
• Package Height (cm): 113.00
• Package Weight (kg): 2115.000000

Before you order

First, compare the exact product code with the item you need. Check whether the name describes a single component, a pack or a complete kit. Next, review the listed size and connection details. Choose compatible parts for your existing equipment, since matching a brand alone does not confirm a fit. Package measurements describe the packed item rather than its working capacity. Finally, check the inclusion notes for separately sold accessories. Keep these details with your order information so you can identify the same item when replacing or expanding your equipment.

Order the MAC AFRIC 460 x 1500 MM Lathe from Peculiar Beauté. Before checkout, compare the specifications and product photos with your requirements. Keep the product code ELATHE150 available if you need to identify this item again.
